Description

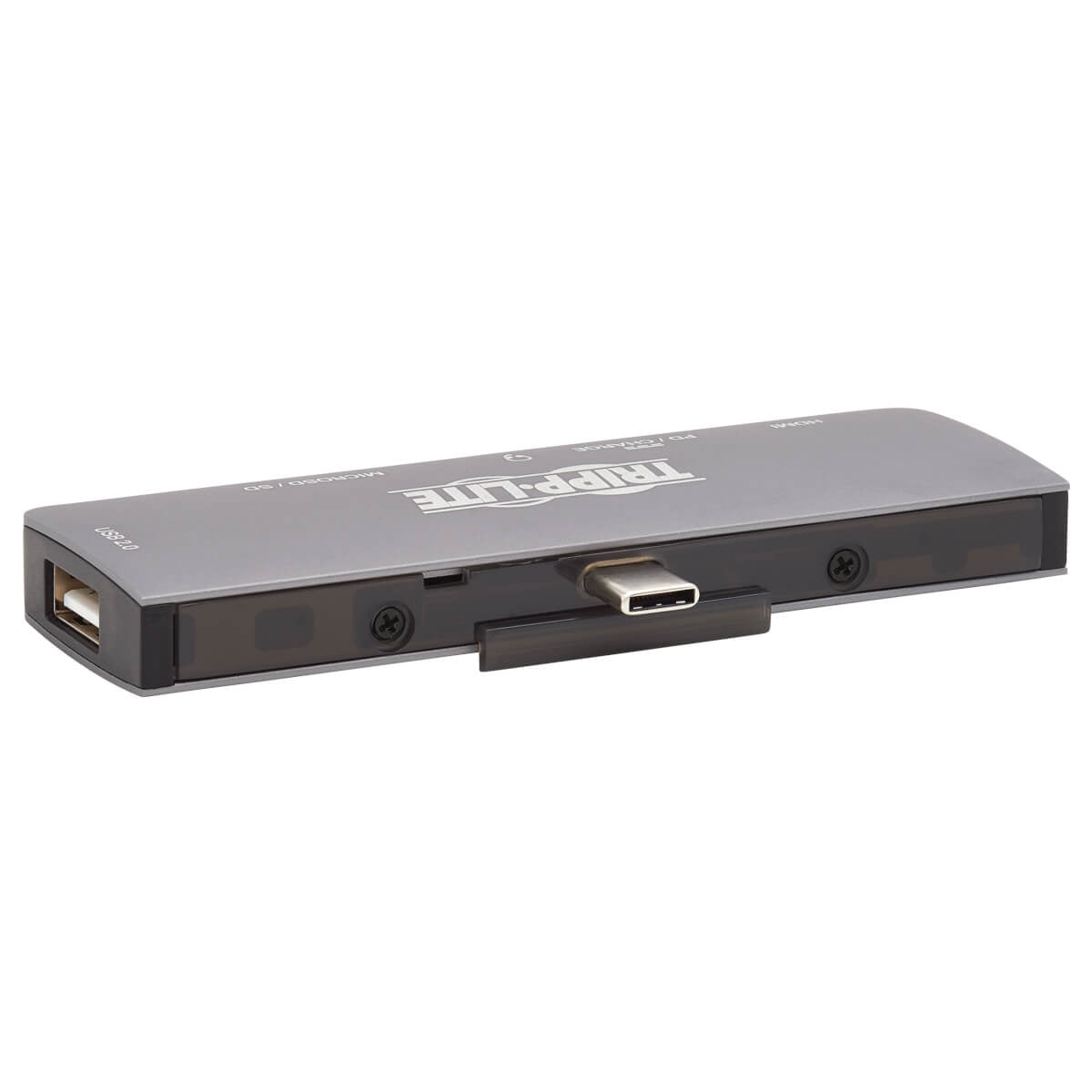

Clips to Your Device’s USB-C or Thunderbolt 3 Port to Create a Multiport Workstation This USB-C docking station with PD Charging adds multiple ports to the USB-C or Thunderbolt 3 port on your laptop, tablet or smartphone. The U442-DOCK15-S allows you to transmit 4K video and digital audio to a large display, add external memory via USB drive or memory cards, and power and charge a PD Charging-compliant mobile device simultaneously. The USB-C plug clips securely to your tablet or smartphone to prevent it from becoming accidentally disconnected. The clip is removable, letting you connect the USB-C plug to a laptop as well. Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the USB-C plug to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers. Transmits Crystal-Clear 4K Video and Digital Audio The U442-DOCK15-S supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with multi-channel sound. Connect the HDMI port to your display using an HDMI cable (sold separately). PD 3.0 Charging Port Charges High-Powered Devices via AC Wall Charger The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an iPad Pro, Windows laptop or Android smartphone. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC). Connects a Keyboard, Thumb Drive and Other Peripherals The USB-A hub port accepts a USB peripheral, such as a flash drive, mouse, keyboard or printer. It supports USB 2.0 transfer rates up to 480 Mbps and is backward compatible with earlier USB generations. A 3.5 mm audio jack allows connection of a microphone, stereo earbuds or speakers to your USB-C device with a user-supplied cable. Note: Host must support USB OTG (On-the-Go). Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both slots may be used at the same time. Ready to Use Right from the Package, So You Can Plug and Play Immediately The lightweight aluminum USB-C dock is specifically designed for use with laptops, tablets and other devices equipped with a USB-C or Thunderbolt 3 port. It requires no drivers or external power source. It’s about the size of a smartphone and weighs a mere 0.2 pounds, making it easy to pack into a pocket, backpack or laptop bag for multiport convenience wherever you go.
Specification:
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Microphone in | No |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 60 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| Country of origin | China |
| Product colour | Gray |
| Card reader integrated | No |
| LED indicators | Power |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| HD type | 4K Ultra HD |
| Housing material | Aluminum |
| Technical details | |
| Product colour | Gray |
| Data transfer rate | 5 Gbit/s |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332253627 |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 11" (279.9 mm) |
| Master (outer) case gross weight | 5.73 lbs (2.6 kg) |
| Master (outer) case length | 8.66" (220 mm) |
| Master (outer) case height | 4.53" (115.1 mm) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Output current | 3 A |
| Indication | |
| LED indicators | Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 2.47 oz (70 g) |
| Package weight | 8.11 oz (230 g) |
| Package width | 7.87" (199.9 mm) |
| Package depth | 3.94" (100.1 mm) |
| Package height | 0.98" (24.9 mm) |
| Design | |
| Country of origin | China |
| Product colour | Gray |
| LED indicators | Power |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 8.11 oz (230 g) |
| Package width | 7.87" (199.9 mm) |
| Package depth | 3.94" (100.1 mm) |
| Package height | 0.98" (24.9 mm) |
| Packaging content | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 11" (279.9 mm) |
| Master (outer) case gross weight | 5.73 lbs (2.6 kg) |
| Master (outer) case length | 8.66" (220 mm) |
| Master (outer) case height | 4.53" (115.1 mm) |
