Description

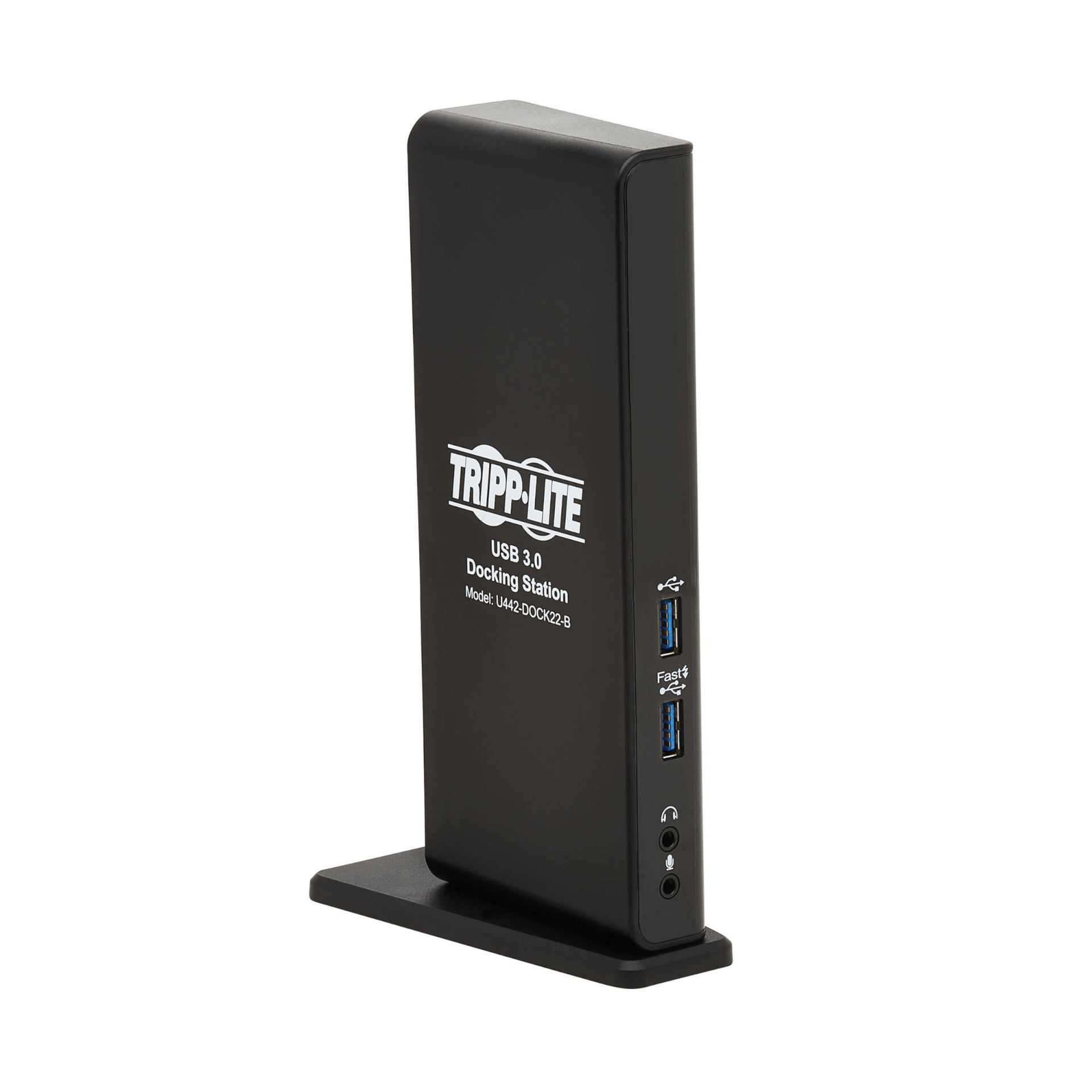

USB docking station connects 2 HDMI displays, 6 USB-A peripherals, audio equipment and a Gigabit Ethernet network to your computer, laptop or tablet’s USB port. Docking Station Turns Your Device’s USB Port into a Workstation This multiport USB dock expands the potential of your MacBook Pro, Windows laptop, Chromebook, tablet or PC’s USB port. It’s ideal for transmitting 1080p video and digital audio to two large displays, adding a thumb drive and other USB peripherals, listening to music and podcasts, and connecting to a wired Gigabit Ethernet network, all at the same time. Transmits High-Definition Video with Digital Audio to 2 HDMI Displays Simultaneously Two HDMI outputs each support hi-def video up to 2560 x 1440 at 60 Hz with multi-channel sound. By downloading and installing the proper DisplayLink drivers to your host device, you may connect two external displays simultaneously. You can display the image from the host computer on both monitors, extend your host desktop across both with different windows open on each, or combine both into one large display as a video wall. When two HDMI monitors are connected at the same time, maximum resolution is 1920 x 1080 (1080p) at 60 Hz. USB Hub Ports Connect Keyboards, Thumb Drives and Other Peripherals Two USB 3.2 Gen 1 and four USB 2.0 ports accept USB peripherals, such as flash drives, mice, keyboards and printers. The USB 3.2 Gen 1 ports support data transfer rates up to 5 Gbps and are backward compatible with earlier USB generations, so you can use legacy equipment with all six ports. One dedicated port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast uploads and downloads. Connects Speakers, Microphone and Other Audio Equipment Two 3.5 mm mini stereo jacks are convenient for connecting speakers, headphones and/or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.
Specification:
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB connector type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| Mini DisplayPorts quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| Network | |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Auto MDI/MDI-X | Yes |
| Country of origin | Vietnam |
| Product colour | Silver |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MMC, MicroSD (TransFlash), SD |
| Charging function | Yes |
| Certification | CE, FCC, REACH |
| Housing material | Aluminum, Polyvinyl chloride (PVC) |
| Technical details | |
| Product colour | Silver |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Charging function | Yes |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332213485 |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 9.45" (240 mm) |
| Master (outer) case gross weight | 5.73 lbs (2.6 kg) |
| Master (outer) case length | 6.89" (175 mm) |
| Master (outer) case height | 5.71" (145 mm) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MicroSD (TransFlash), SD |
| Power | |
| Input current | 3 A |
| AC input voltage | 20 V |
| Power consumption (typical) | 5 W |
| Output voltage | 5 V |
| Output current | 0.9 A |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 8.11 oz (230 g) |
| Depth | 8.3" (210.8 mm) |
| Package weight | 8.47 oz (240 g) |
| Package width | 6.5" (165.1 mm) |
| Package depth | 5.31" (134.9 mm) |
| Package height | 0.909" (23.1 mm) |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | Vietnam |
| Product colour | Silver |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 8.47 oz (240 g) |
| Package width | 6.5" (165.1 mm) |
| Package depth | 5.31" (134.9 mm) |
| Package height | 0.909" (23.1 mm) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 9.45" (240 mm) |
| Master (outer) case gross weight | 5.73 lbs (2.6 kg) |
| Master (outer) case length | 6.89" (175 mm) |
| Master (outer) case height | 5.71" (145 mm) |
