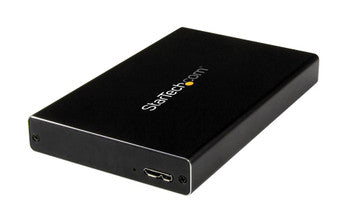

UNI251BMU33 - StarTech.com TURN A 2.5IN SATA III OR IDE HDD / SSD INTO AN EXTERNAL HARD DRIVE THAT CONNECTS

The UNI251BMU33 Universal 2.5in Drive Enclosure lets you turn a 2.5in SATA or IDE hard drive (HDD) or solid-state drive (SSD) into a portable USB 3.0 storage solution. This versatile enclosure offers a simple solution for re-purposing 2.5in HDDs and SSDs that are no longer in use into convenient external storage. Since the enclosure supports either legacy IDE or SATA drives, you can rest assured that you’ll have the correct option on-hand when it’s time to swap another drive in, without having to worry about compatibility. To get the most from your SATA III drives and ensure maximum performance and speed, the UNI251BMU33 is enhanced with UASP support. When paired with a UASP-enabled host controller, the enclosure delivers transfer speeds up to 70% faster than conventional USB 3.0. See our UASP testing results below for further details. Perfect for carrying your external drive along with your laptop, the UNI251BMU33 is USB-powered, so you won’t need to carry around an external power adapter. Plus, the enclosure features a small-footprint design, making it a great solution for on-the-go laptop and desktop users who want to add storage to their computer without taking up much space. The UNI251BMU33 is backed by a StarTech.com 2-year warranty, and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive. The StarTech.com Advantage - Broad drive compatibility with support for 2.5in form factor IDE and SATA hard drives (HDD) and solid-state drives (SSD) - Time-saving file transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-supported host device - Maximum portability with a small footprint and USB power



Specification:



Hard drive
Storage media type	HDD, SSD
Storage drive interface	Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
Number of storage drives supported	2
Maximum storage capacity	6 TB
Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
DC-in jack	Yes
Technical details
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Package width	4.84" (123 mm)
Package height	8.43" (214 mm)
Maximum data transfer rate	5 Gbit/s
Product colour	Black
Material	Plastic
Plug and Play	Yes
Hot-swap	Yes
RAID support	No
Chipset	JMicron - JMS561U, JMD330
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Features
UASP support	Yes
Mean time between failures (MTBF)	30000 h
Maximum data transfer rate	5 Gbit/s
LED indicators	Activity, Power
Product colour	Black
Material	Plastic
Plug and Play	Yes
Hot-swap	Yes
RAID support	No
Certification	CE, FCC
Chipset	JMicron - JMS561U, JMD330
Cooling
Built-in fan	No
Power
Power plug type	Type M
AC input voltage	110-240 V
Input current	1.3 A
Output voltage	12 V
Output current	3 A
Weight & dimensions
Width	5.12" (130 mm)
Depth	5.79" (147 mm)
Height	2.76" (70 mm)
Weight	17.6 oz (500 g)
Operational conditions
Operating temperature (T-T)	5 - 80 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	8 - 90%
Certificates
Certification	CE, FCC
Indication
LED indicators	Activity, Power
Ethernet LAN features
LED indicators	Activity, Power
Packaging content
AC adapter included	Yes
Cables included	USB
Manual	Yes
Packaging data
Package depth	7.36" (187 mm)
Package width	4.84" (123 mm)
Package height	8.43" (214 mm)
Package weight	2.2 lbs (1 kg)
Logistics data
Master (outer) case width	8.27" (210 mm)
Master (outer) case length	24.6" (625 mm)
Master (outer) case height	17.7" (450 mm)
Products per master (outer) case	10 pc(s)
