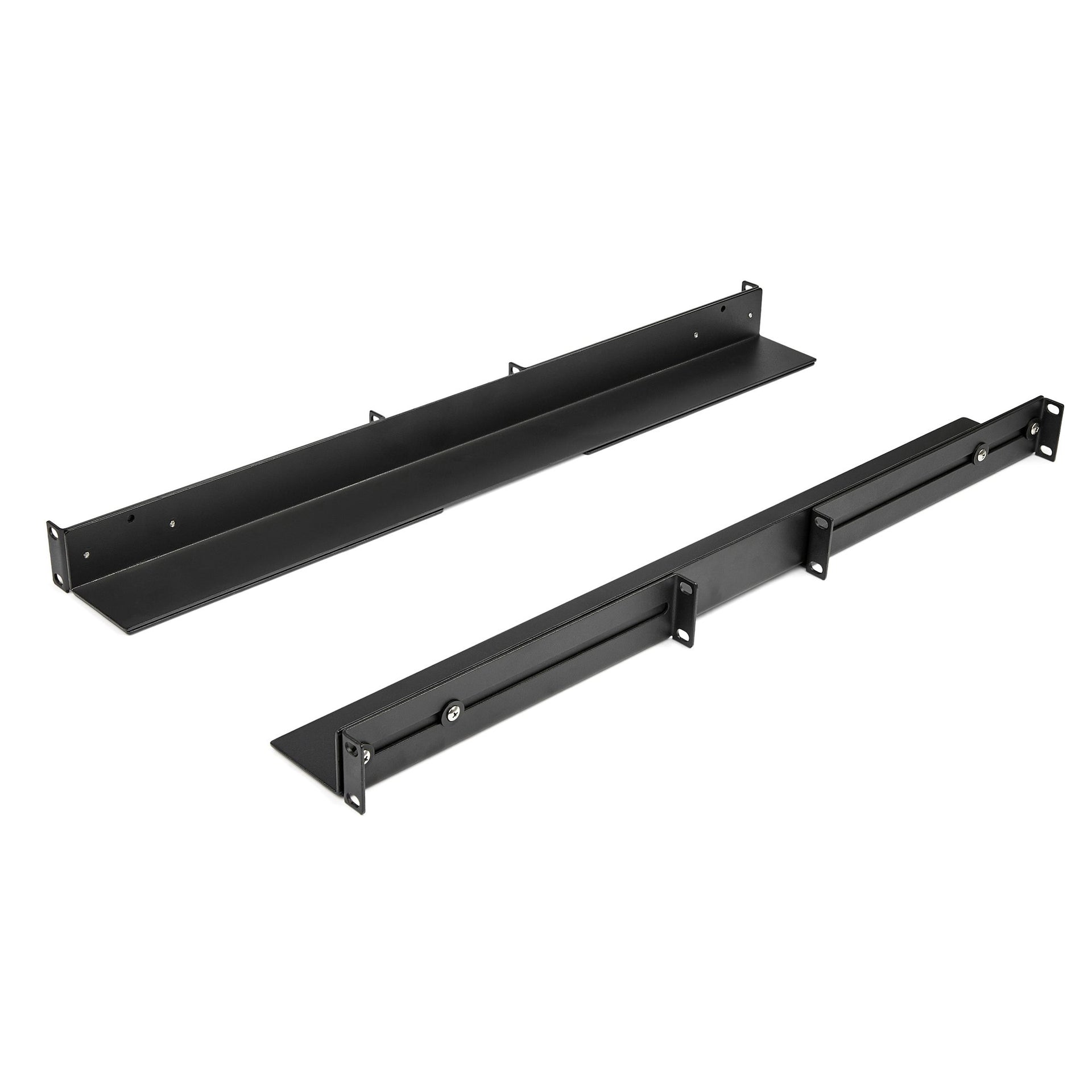

UNIRAILS1UB - StarTech.com 1U UNIVERSAL SERVER RACK RAILS INSTALL IN 4-POST EIA/ECA-310 NETWORK RACK/ RAIL

Universal | EIA/ECA-310 Compliant | Supports up to 200lbsThese 1U server rack rails let you mount devices, such as servers or networking equipment, that did not come with rack rails into your 19” 4 post rack. The adjustable server rack rails are also a great solution for mounting OEM equipment such as Dell™, IBM®, HP® or Apple servers.Universal design mounts to almost any 19" server rackAdhering to the EIA/ECA-310 standard for 19 inch server rack equipment and accessories, these mounting rails are compatible with most 19 inch server racks. The depth is adjustable for a variety of rack sizes and configurations up to a maximum depth of 36 inches.Maximum durabilityTo ensure your equipment is secure, these universal rack mount rails feature cold-rolled steel construction. The durable design can support a weight load of up to 200 lbs (90 kg).The Choice of IT Pros Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.The UNIRAILS1UB is backed by a lifetime StarTech.com warranty with free technical support.The StarTech.com Advantage



Specification:



Features
Certification	CE, UL, REACH, TAA
Type	Rack rail
Rack capacity	2U
Maximum weight capacity	99.9 lbs (45.3 kg)
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	19.4" (493 mm)
Package height	4.29" (109 mm)
Package depth	4.13" (105 mm)
Package weight	8.82 lbs (4 kg)
Mounting depth (min)	16.5" (42 cm)
Mounting depth (max)	41.5" (105.4 cm)
Weight	8.16 lbs (3.7 kg)
Maximum weight capacity	99.9 lbs (45.3 kg)
Packaging data
Package width	19.4" (493 mm)
Package height	4.29" (109 mm)
Package depth	4.13" (105 mm)
Package weight	8.82 lbs (4 kg)
Packaging content
Screws included	Yes
Mounting kit	Yes
Number of screws	16
Screw type	M5
Number of cage nuts	16
Cage nuts included	Yes
Technical details
Type	Rack rail
Rack capacity	2U
Sustainability certificates	RoHS
Colour
Product colour	Black
Logistics data
Master (outer) case width	19.4" (493 mm)
Master (outer) case length	4.13" (105 mm)
Master (outer) case height	4.29" (109 mm)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85389099
