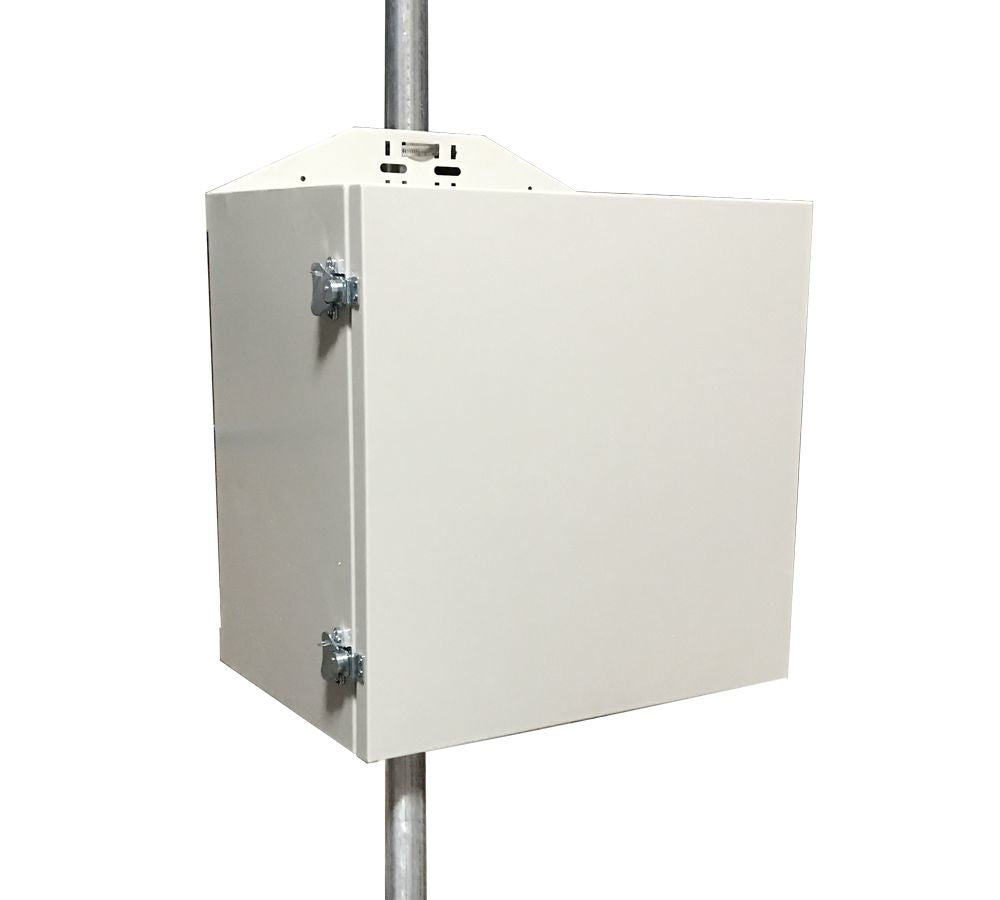

UPSTL48-200-600 - Tycon Systems UPSPRO 12/24/48V 600W 2400W

The UPSPro® STL48-200-600 outdoor enclosures are designed for applications that require a flexible backup power source in order to maintain uninterrupted service to customers. The enclosure is powered from 120/240VAC. It is also solar ready (blocking diodes may be required), so a solar panel can be added as an alternate power source or to extend backup time.

Features include an advanced temperature compensated battery charge controller with 7 Port GigE PoE switch and built-in remote monitoring and management. The PoE switch ports can be configured as 802.3at or 24V Passive PoE. There is a configurable wire terminal aux port. The ground mount aluminum enclosure has multiple ports for CAT5 cable, antenna cables/connectors or other cabling. They have thermostatically controlled power ventilation which turns on automatically when inside temperature exceeds 45C.

There is some space inside the enclosures for customer electronics such as controllers, wireless AP or CPE cards, sensors, inverters, etc. There is a 1U rack mount feature in the enclosure for rack mounting. Equipment runs on battery power which isolates it from power line surges which is a main cause of outdoor equipment failure.

A typical high power wireless access point with average power consumption of 8W will run 40 hours on a 52Ah battery at room temperature or 28 hours at -20 deg C.
