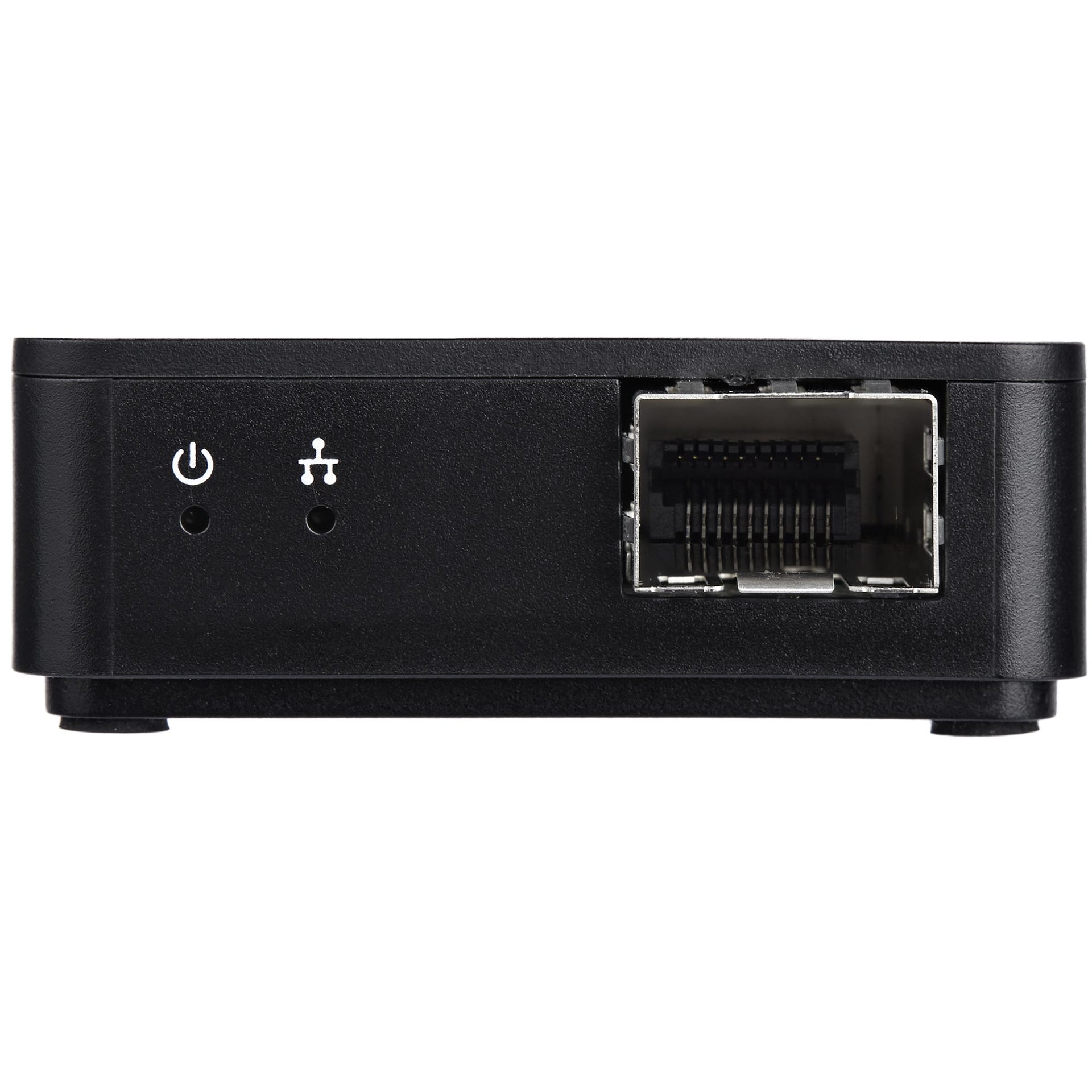

US1GA30SFP - StarTech.com USB 3.0 TO FIBER OPTIC CONVERTER - USB TO SFP ADAPTER - GIGABIT NETWORK ADAPTER

Connect to a Gigabit Ethernet network through your laptop’s USB-A port using the Gigabit SFP of your choiceThis USB 3.0 to fiber-optic converter lets you utilize the USB 3.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a Gigabit Ethernet (1000Mbps) optical network connection for portable laptops or tablets, or systems without expansion slots.A flexible solution with an open SFP slotThe open SFP slot enables you to use your preferred SFP transceiver module to meet your networking needs - use an SFP with your desired wavelength, distance, and connection type to achieve an efficient network solution. (SFP sold separately.)Secure fiber-to-the-desk connectivityThis USB to fiber-optic converter provides reliable fiber connectivity while protecting your network from problems with electronic interference - a common issue with copper Ethernet networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks for sensitive information, without compromising network speed and reliability.Easy portabilityCompact and portable, this USB 3.0 to fiber-optic converter is powered directly from the USB port.Plug and playGet up and running quickly. The USB to fiber-optic converter supports certified drivers for Windows, Mac and Linux®. Once the adapter is plugged into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Mac Address Pass-Through Utility : To improve network security.•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe US1GA30SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Ports & interfaces
Internal	No
PCI version	3.0
Fiber ports quantity	1
Fiber optic connector	SC
Interface	Fiber
Host interface	USB
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
Chipset	Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW
VLAN tagging	Yes
Networking standards	IEEE 802.1Q, IEEE 802.3z
Wake-on-LAN ready	Yes
Maximum operating distance	21653.5" (550 m)
Fiber ethernet cabling technology	1000BASE‑SX
Maximum data transfer rate	1000 Mbit/s
Technical details
Product colour	Black
Wake-on-LAN ready	Yes
Plug and Play	Yes
Cable length	7.68" (0.195 m)
Harmonized System (HS) code	85176990
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Design
Product colour	Black
Chipset	Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW
Plug and Play	Yes
Internal	No
LED indicators	Activity, Link, Power
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Power
USB powered	Yes
Indication
LED indicators	Activity, Link, Power
System requirements
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Weight & dimensions
Width	2.17" (55 mm)
Depth	10.2" (260 mm)
Height	0.787" (20 mm)
Weight	3.53 oz (100 g)
Package width	6.69" (170 mm)
Package depth	5.59" (142 mm)
Package height	1.18" (30 mm)
Package weight	1.9 oz (54 g)
Packaging data
Package width	6.69" (170 mm)
Package depth	5.59" (142 mm)
Package height	1.18" (30 mm)
Package weight	1.9 oz (54 g)
Quick start guide	Yes
Performance
Server operating systems supported	Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Plug and Play	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Cable length	7.68" (0.195 m)
Other features
Chipset	Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW
Quick start guide	Yes
Cable length	7.68" (0.195 m)
Harmonized System (HS) code	85176990
Packaging content
Quick start guide	Yes
Logistics data
Master (outer) case width	11.8" (300 mm)
Master (outer) case length	23.2" (590 mm)
Master (outer) case height	14" (355 mm)
Products per master (outer) case	80 pc(s)
