Description

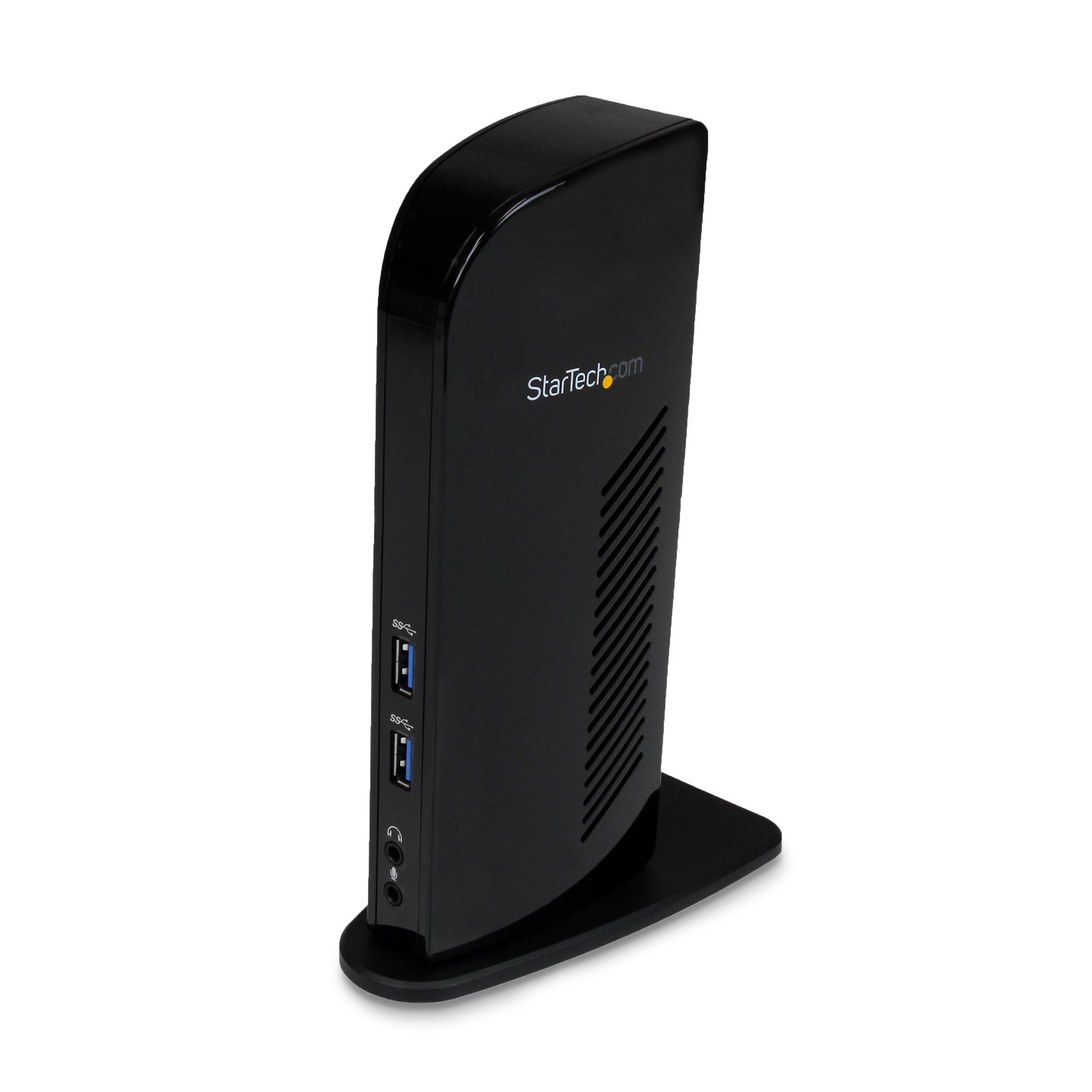

Laptop Docking Station | Mac & Windows | DVI to VGA Adapter | Vertical
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
- Flexible video output to extend or mirror your desktop at up to 1920x1200, with HDMI and DVI ports, plus included DVI to VGA adapter
- USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
- The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB Hub
The built-in USB hub features 2 USB 3.0 ports and 4 USB 2.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile Design
With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
StarTech.com’s laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
The StarTech.com Advantage
- Flexible video output to extend or mirror your desktop at up to 1920x1200, with HDMI and DVI ports, plus included DVI to VGA adapter
- USB 3.0 port replicator adds Gigabit Ethernet networking and audio (Headphone/Mic) from one device
- The laptop docking station provides two additional USB 3.0 ports and four USB 2.0 ports to connect additional devices from a single USB 3.0 connection
Specification:
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Performance | |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1152 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Certification | FCC, CE, TAA, REACH |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 8.46" (215 mm) |
| Master (outer) case length | 17.1" (435 mm) |
| Master (outer) case height | 13.6" (345 mm) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 0.9 A |
| Power plug type | Type B |
| Compatible power plug types | AU, EU, UK, US |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 20 W |
| Output voltage | 5 V |
| Output current | 4 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Mac compatibility | Yes |
| Other operating systems supported | ChromeOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 10.4 oz (295 g) |
| Width | 7.01" (178 mm) |
| Depth | 12" (304 mm) |
| Height | 1.73" (44 mm) |
| Package weight | 31 oz (878 g) |
| Package width | 7.68" (195 mm) |
| Package depth | 11.7" (296 mm) |
| Package height | 2.6" (66 mm) |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | FCC, CE, TAA, REACH |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 31 oz (878 g) |
| Package width | 7.68" (195 mm) |
| Package depth | 11.7" (296 mm) |
| Package height | 2.6" (66 mm) |
| Packaging content | |
| Drivers included | Yes |
| Manual | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Certificates | |
| Certification | FCC, CE, TAA, REACH |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 8.46" (215 mm) |
| Master (outer) case length | 17.1" (435 mm) |
| Master (outer) case height | 13.6" (345 mm) |
| Other features | |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Chipset | DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E |
