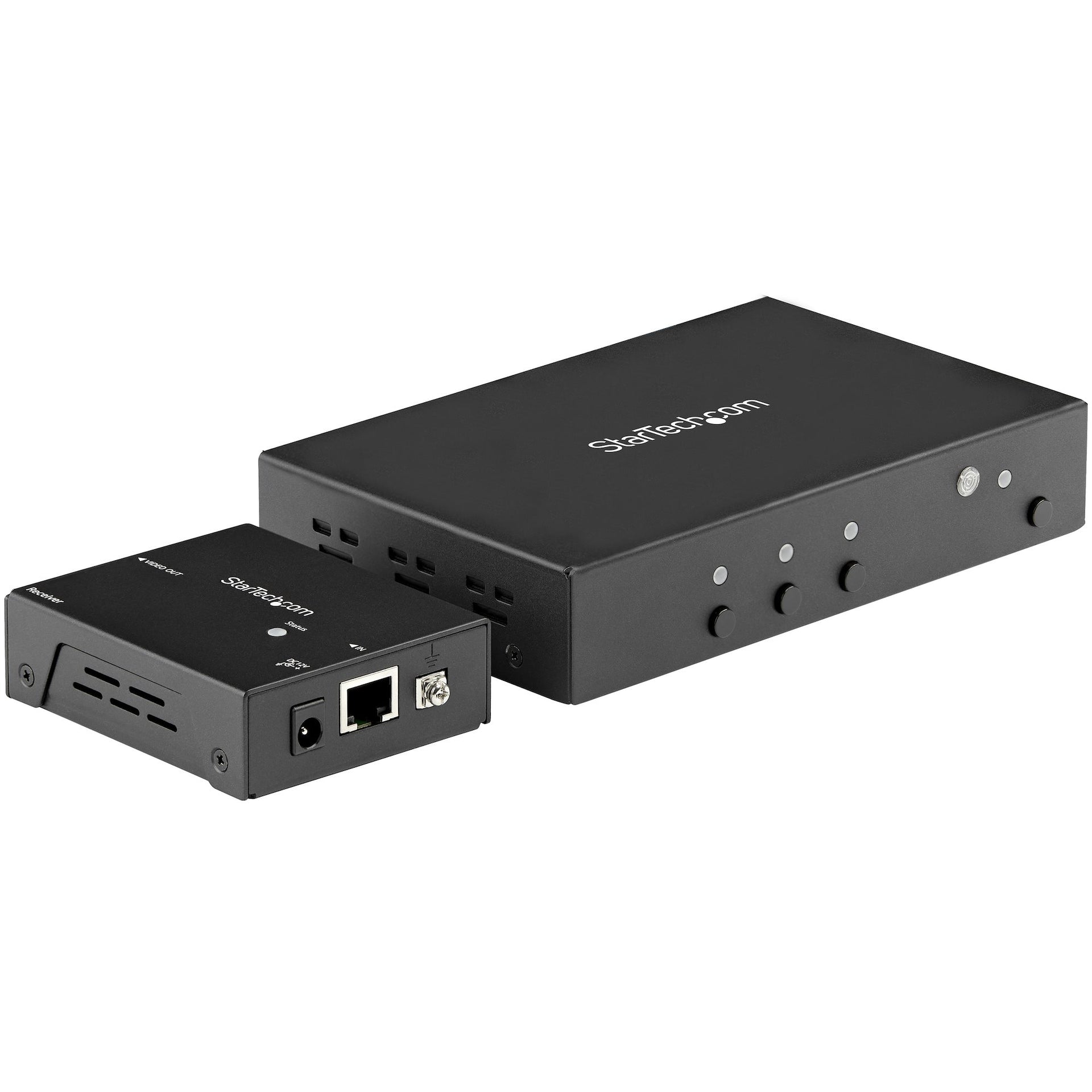

VS321HDBTK - StarTech.com HDMI EXTENDER OVER CAT6 W/ 3 PORT SWITCH

HDBaseTâ„¢ Extender| 4K 30Hz | Automatic Switch | Mac & WindowsThis HDMI over CAT6 extender with 3-port HDMI switch features HDBaseTâ„¢ and is TAA Compliant.Astonishing 4K over CAT6This HDMI Extender with a built-in Switch is capable of extending 7.1 audio and 4K at 30Hz video up to 115ft (35m), or 1080p up to 230ft (70m). The transmitter and receiver kit is connected using a single CAT5e/6 cable to avoid the hassle of running multiple cables.Simplified Professional InstallationThe HDMI Switch Box and Extender supports Power-over-Cable, meaning both the transmitter and receiver can be powered by the same single power source. Power-over-Cable is great for extending video to areas where power outlets may be limited, such as industrial sites. Use the metal housing, grounding bolts and included mounting brackets to create professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.Effortless Control with Automatic SwitchingThe 4K 30Hz HDMI extender box features several methods of input adjustment. Auto-detect switching selects newly connected devices, whereas priority selection allows you to choose the default active port. The IR Remote Control (batteries not included) and serial switching, using the included RJ-11 to DB9 adapter, offer additional input selection methods.VS321HDBTK is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage



Specification:



Ports & interfaces
Video port type	HDMI
HDMI version	2.0
HDMI ports quantity	5
HDMI in	4
Features
Audio output channels	7.1 channels
Product colour	Black
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
LED indicators	Power
HDCP	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 Hz
AC adapter input current	0.4 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power plug type	Type H
Certificates
Certification	CE, FCC
Weight & dimensions
Width	2.01" (51 mm)
Height	0.787" (20 mm)
Depth	4.84" (123 mm)
Weight	5.43 oz (154 g)
Packaging data
Package width	0.866" (22 mm)
Package height	2.09" (53 mm)
Package depth	5.94" (151 mm)
Package weight	15.3 oz (434 g)
Packaging content
Remote control included	Yes
Operational conditions
Storage temperature (T-T)	-10 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Sustainability
Sustainability certificates	RoHS
Technical details
Audio support	Yes
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
