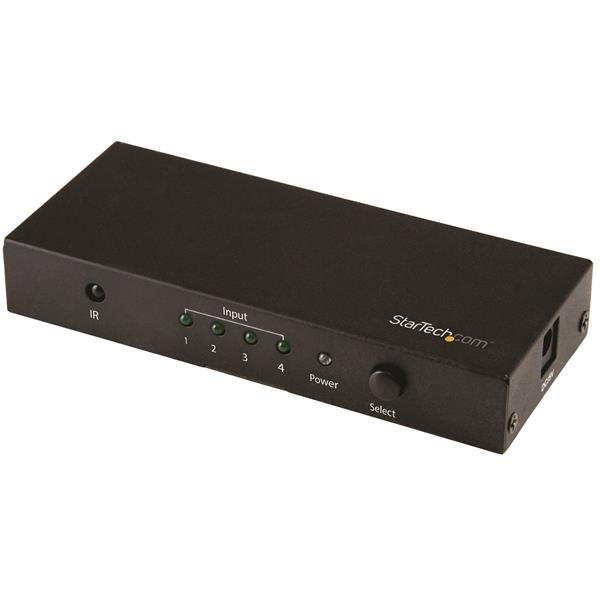

VS421HD20 - StarTech.com SWITCH BETWEEN FOUR HDMI VIDEO SOURCES ON A SINGLE DISPLAY WITH SUPPORT FOR ULTR

This 4-port HDMI video switch lets you share an HDMI 2.0 display or projector with four HDMI 2.0 video sources. The switch features four independent video inputs that can each support 4K resolution at 60Hz, making it the perfect solution for connecting four video sources to a display that has a limited number of HDMI 2.0 ports. Astonishing picture quality with support for Ultra HD 4K at 60Hz The HDCP 2.2 HDMI switch lets you harness the High Dynamic Range (HDR) capability of your HDMI 2.0 video sources and deliver it to your UHD 4K60 display. Unlike many 4K switches that only support a 30Hz refresh rate, this switch works with HDMI 2.0 displays with output resolutions of up to 3840 x 2160p at 60Hz. Don't be fooled by a clever spin on old technology. Many HDMI switches support 4K but will only work at a 30Hz refresh rate, or claim support for 60Hz but heavily compress their signal to a lower 4:2:0 chroma subsampling in order to work at inferior bitrates. This 4K 60Hz HDMI switch uses the latest components to offer full support for your HDMI 2.0 equipment, supporting true 4K resolution at 60Hz with 4:4:4 chroma subsampling. Support for HDMI 2.0 devices means this switch can transmit bandwidth up to 18Gbps, making it ideal for high-resolution computer tasks. The switch is backward compatible with 4K 30Hz and 1080p displays, which ensures that it will work with lower resolution displays such as TVs or projectors around your site or in a digital signage application. Hassle-free Operation with automatic switching This switch ensures effortless operation with automatic switching that detects and selects a newly connected device. It's perfect for automatically switching to a 4K media player such as a 4K UHD Blu-rayâ„¢ player as soon as it's switched on. In your classroom or office boardroom, the automatic switch makes it easy to share your projector between multiple sources, which encourages on-the-fly collaboration among colleagues. The HDMI switch also supports manual operation, using the included IR remote control or the built-in front-panel toggle switch. The VS421HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.



Specification:



Ports & interfaces
Video port type	HDMI
HDMI version	1.4
HDMI ports quantity	4
DC-in jack	Yes
Features
Audio output channels	7.1 channels
Remote control type	IR
Product colour	Black
Supported video modes	1080p
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	30 Hz
LED indicators	Activity, Power
HDCP	Yes
Power
AC adapter input voltage	100 - 240 V
AC adapter output voltage	12 V
AC adapter output current	1.5 A
Power consumption (typical)	18 W
Certificates
Certification	CE, FCC, TAA, REACH
Weight & dimensions
Width	2.56" (65 mm)
Height	0.787" (20 mm)
Depth	6.14" (156 mm)
Weight	10.3 oz (291 g)
Packaging data
Package width	9.25" (235 mm)
Package height	2.52" (64 mm)
Package depth	6.1" (155 mm)
Package weight	29.5 oz (836 g)
Packaging content
Mounting brackets included	Yes
Quick start guide	Yes
Remote control included	Yes
Cables included	Phone (RJ-11)
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80%
Sustainability
Sustainability certificates	RoHS
Technical details
Audio support	Yes
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
