Kramer Electronics THE WP-580TXR AND WP-580RXR ARE A HIGH-PERFORMANCE, EXTRA RANGE, HDBASET TECHNOL

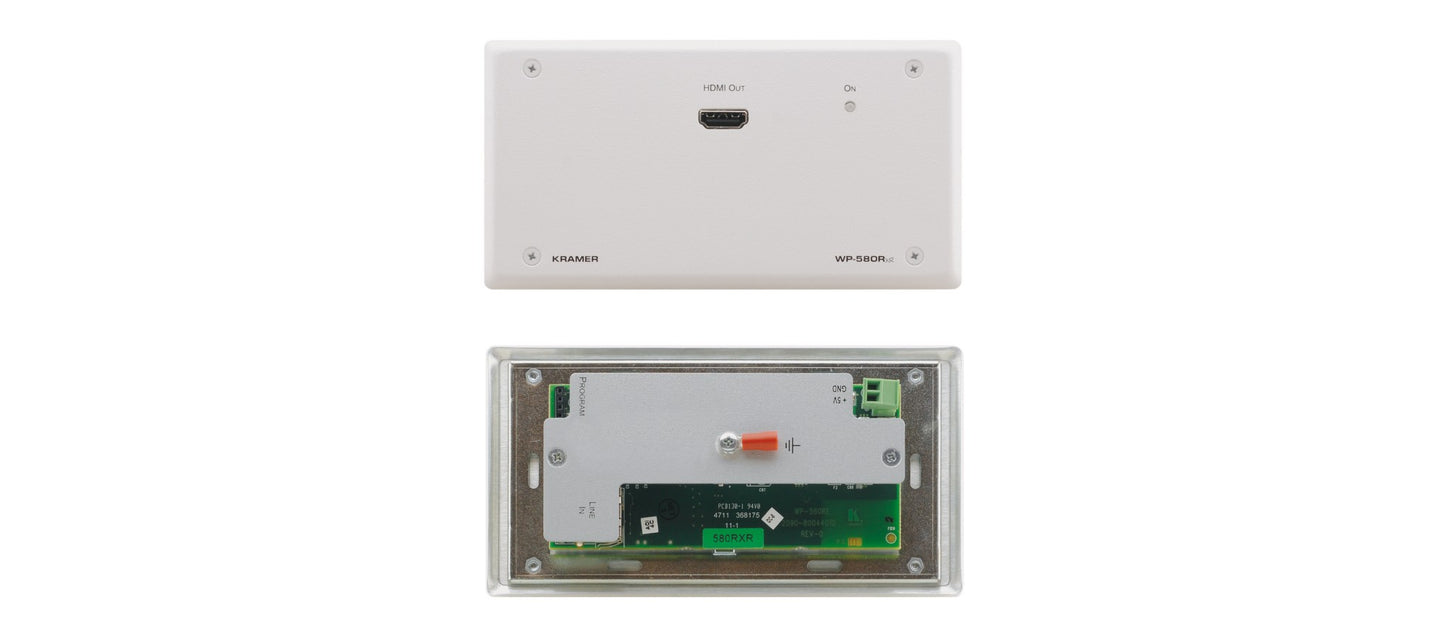

The WP−580RXR is an extended range, HDBaseT twisted pair wall plate receiver for HDMI signals. The WP−580RXR receives an HDBaseT twisted pair signal from the WP−580TXR and converts it back into HDMI signals.

- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel) in normal mode; 4.95Gbps (1.65Gbps per graphic channel) in ultra mode.
- HDTV Compatible.
- HDCP Compliance.
- HDBaseT™ Technology.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- 2K & 4K Support in Normal Mode.
- System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables
- Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
- Indicators - Status LEDs for input, output, link and power.
- Dimensions - 12.4cm x 3.12cm x 7.9cm (4.88" x 1.29" x 3.12") US; 15.1cm x 2.96cm x 8.6cm (5.95" x 1.17" x 3.39"), 15.1cm x 2.96cm x 8.0cm (5.95" x 1.17" x 3.15") EU (W, D, H).
