Zoom
Description

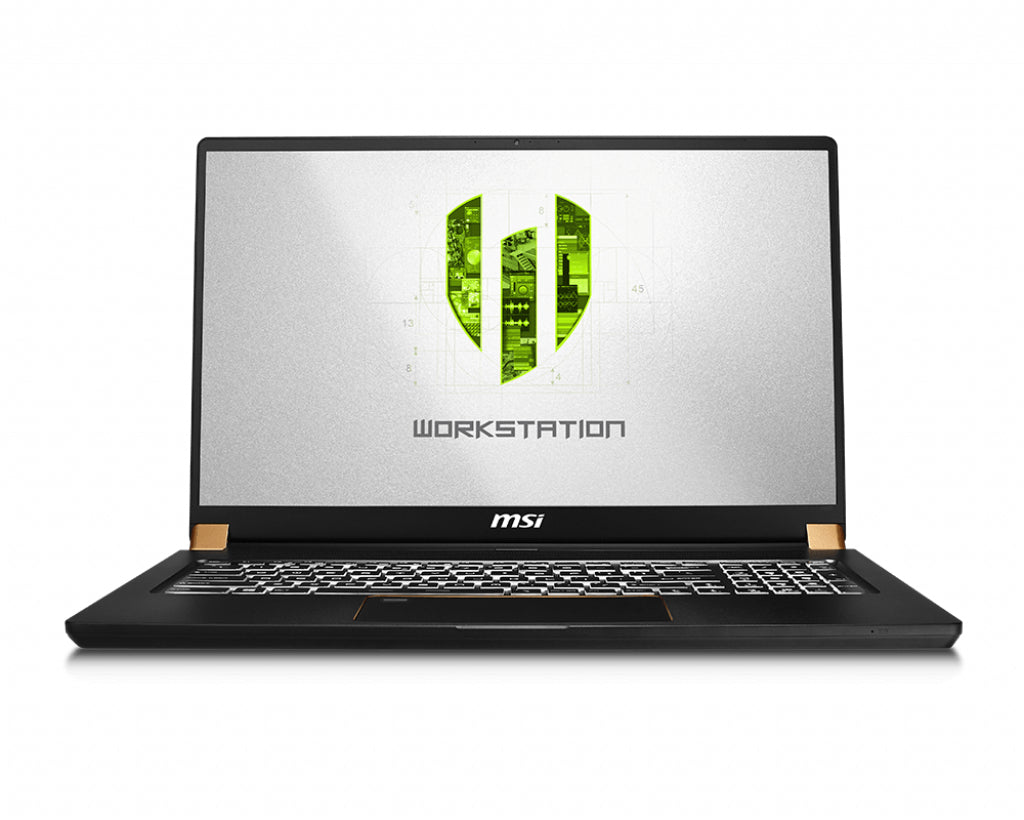

NVIDIA® QUADRO RTX™ SERIES GRAPHICS CARD Powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, bringing the most significant advancement in computer graphics in over a decade to professional workflows. RTX STUDIO LAPTOPS At The Speed Of Imagination Work wherever, whenever, and faster than you ever imagined. RTX Studio laptops are crafted with precision to deliver dramatic improvements in productivity and performance.Made for creatives who need power and flexibility. 17.3" IPS-LEVEL THIN BEZEL PANEL Maximize vision and minimize distractions with an ultra-thin bezel providing an incredible screen-to-body ratio for a compact chassis. The 4K, 72% NTSC color gamut IPS panel offers exceptional color fidelity and a high contrast rate, providing an accurate and vivid window that best depicts your creation. THIN AND LIGHT Maximize vision and minimize distractions with a thin bezel providing an incredible screen-to-body ratio for a compact chassis. The premium glass touchpad offers an enlarged surface area and an extremely smooth finish, perfect for all your clicks, scrolls, and multi-touch gestures. A VIEWING EXPERIENCE LIKE NO OTHER With MSI's True Color Technology, you're getting a display that is precisely calibrated to deliver vibrate colors, stunning details and sharp images. Get the perfect picture utilizing multiple viewing modes that provides the perfect setting, whether you're reviewing your designs, editing your timeline or watching a movie. Also, with MSI's Matrix Display, you can expand your work setup to 3 additional screens. (*depending on specification and configuration) THUNDERBOLT™ 3 Supports up to a data transfer rate of 40Gbps and includes 4K display capability, as well as support for USB3.2 ultra-speed devices, and up to an output of 5V and 3A for charging (Optional). ISV CERTIFICATION Officially recognized by 90% of major ISVs in the AEC Industry, media & entertainment, automobile, and simulation fields such as AutoDesk, Dassault Systems, Adobe, and more. MSI's Workstations ensures your critical applications run steadily, providing optimal performance and a high-quality user experience.
Specification:
| Design | |
|---|---|
| Product type | Mobile workstation |
| Form factor | Clamshell |
| Product colour | Black, Gold |
| Display | |
| HD type | Full HD |
| Display surface | Matt |
| Panel type | IPS |
| LED backlight | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 17.3" |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Tjunction | 100 °C |
| Thermal Design Power (TDP) | 45 W |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 35 W |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor frequency | 2.8 GHz |
| Processor model | E-2276M |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 6 |
| Processor threads | 12 |
| System bus rate | 8 GT/s |
| Processor socket | BGA1440 |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Memory | |
| Memory form factor | SO-DIMM |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory slots | 2x SO-DIMM |
| Storage | |
| Storage media | SSD |
| SSD capacity | 512 GB |
| SSD interface | NVMe |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | Yes |
| Discrete graphics card memory | 6 GB |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3E94 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board graphics card model | Intel UHD Graphics P630 |
| Discrete graphics card model | NVIDIA Quadro RTX 3000 |
| Discrete graphics memory type | GDDR5 |
| Audio | |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera HD type | HD |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Charging port type | DC-in jack |
| Keyboard | |
| Keyboard layout | QWERTY |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard backlit colour | White |
| Software | |
| Operating system installed | Windows 10 Pro |
| Technical details | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Form factor | Clamshell |
| Product colour | Black, Gold |
| Discrete graphics card memory | 6 GB |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Secure Key | Yes |
| Intel Flex Memory Access | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Processor package size | 42 x 28 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Processor ARK ID | 192989 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Battery | |
| Number of battery cells | 4 |
| Battery capacity (Watt-hours) | 82 Wh |
| Power | |
| AC adapter power | 180 W |
| Weight & dimensions | |
| Width | 15.6" (396.1 mm) |
| Depth | 10.2" (259.5 mm) |
| Height | 0.746" (18.9 mm) |
| Weight | 5.03 lbs (2.28 kg) |
| Other features | |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card | Yes |
