MSI

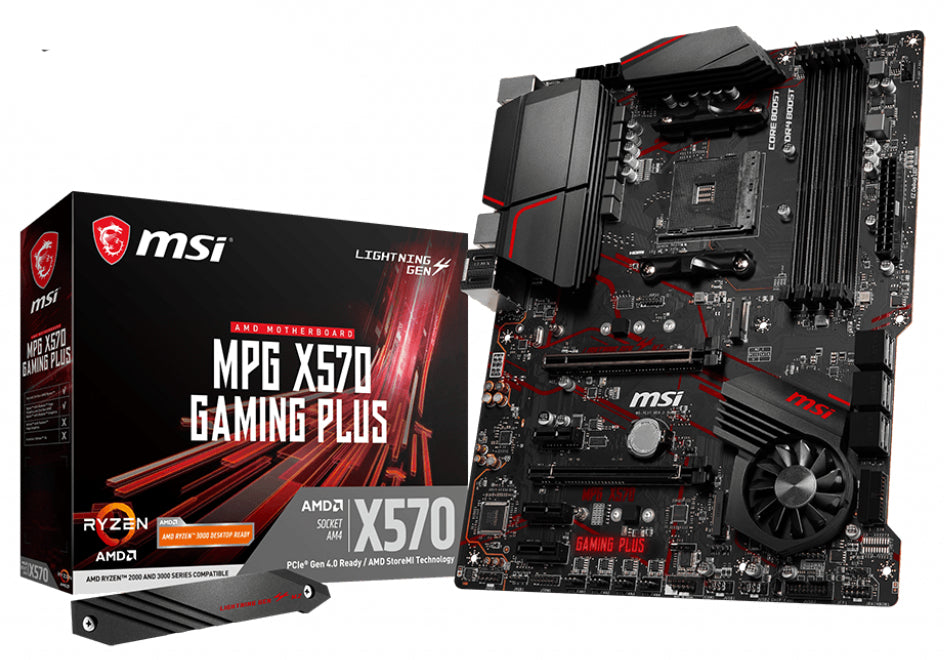

X570GAMINGPLUS - MSI MPG X570 GAMING PLUS AM4 4DIMMS
X570GAMINGPLUS - MSI MPG X570 GAMING PLUS AM4 4DIMMS
SKU:X570GAMINGPLUS
Regular price
$224.94 USD
Regular price
Sale price
$224.94 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center Frozr Heatsink Design Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers. Core Boost With premium layout and fully digital power design to support more cores and provide better performance. Extended Heatsink Design MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed. Lightning Gen4 solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. M.2 Shield FROZR M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster. DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability. Audio Boost 4 Isolated audio with a high quality audio processor for the most immersive gaming experience. Flash BIOS Button Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
Specification:
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Supported processor sockets | Socket AM4 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| RAID levels | 0, 1, 10 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9, AMD Ryzen 9 5th Gen |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266,4300,4400,4600,4866,5000,5100,5200,5400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | 2-Way CrossFireX, Quad-GPU CrossFireX |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 5 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X570 |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Bundled software | Norton Internet Security, cFosSpeed |
| Weight & dimensions | |
| Height | 3.15" (80 mm) |
| Weight | 2.2 lbs (1 kg) |
| Width | 12" (305 mm) |
| Depth | 9.61" (244 mm) |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security, cFosSpeed |
| Other features | |
| Height | 3.15" (80 mm) |
| Weight | 2.2 lbs (1 kg) |
