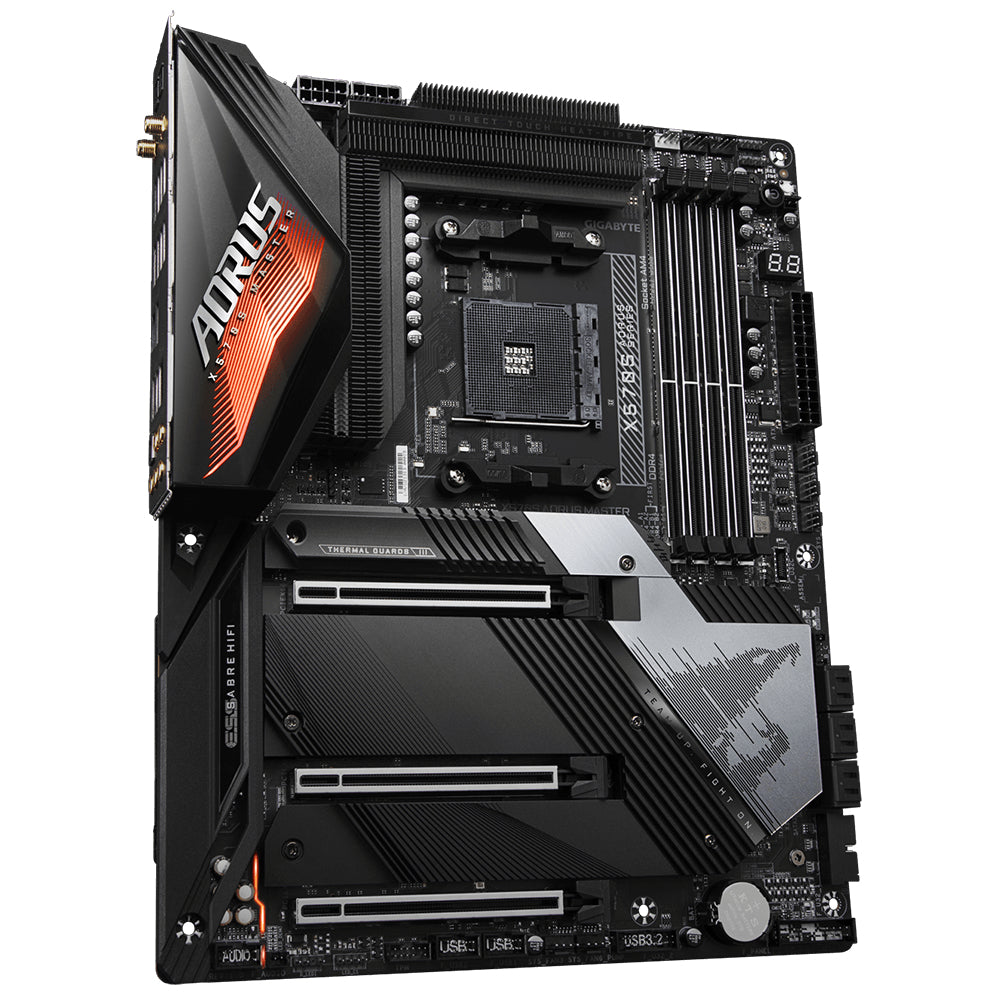

Gigabyte X570S AORUS MASTER AM4 AMD X570 SATA 6GB/S USB 3.0 ATX AMD MOTHERBOARD

GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads. UNPARALLELED PERFORMANCE To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS MASTER is a true beast among motherboards. GIGABYTE Active OC Tuner With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores. - Active OC Tuner switches profile based on user scenario automatically - 5% performance increase ADVANCED THERMAL SOLUTION X570S AORUS MASTER uses an unprecedented and innovative thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full loading application and gaming. Direct-Touch Heatpipe II With an extra large 8mm heatpipe and made by a new manufacturing process which has narrow down the gap between the heatpipe and heatsink. The new Direct-Touch Heatpipe II greatly helps to dissipate the heat on MOSFETs. M.2 Thermal Guard III GIGABYTE motherboards promise the consistent cooling and high performance for the users to avoid throttling from the overheating. Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. High Current Support Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control 7 temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Smart Fan 6 BIOS UI Improve fan curve UI We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control. Slope/Stair dual graph mode Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval. Manual Input For advanced users, we provide fan speed manual input for more precise control. EZ Tuning Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan curve profile Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. NEXT GENERATION CONNECTIVITY A Flagship product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed. First adopter on 2.5GbE LAN onboard 2X Faster than ever - Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience. - Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet Connecting the Future - USB 3.2 Gen 2x2 Type-C® Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly. ESS SABRE reference DAC ES9118 - ESS SABRE reference DAC (ESS 9118) - Hyperstream Dynamic Range (SNR 125dB) - High-Res music (32bit, 192KHz PCM) - Super low THD+N (THD+N -112db) True High-Fidelity Music (Realtek ALC1220-VB) ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp can automatically detect impedance of your head-worn audio device, to prevent issues such as low volume and distortion. With the new VB series audio controller, it can stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A). Audiophile Grade Capacitors (WIMA, Nichicon Fine Gold) To ensure a studio-quality experience, WIMA and Nichicon Fine Gold capacitors are used to provide power to the overall system. Precision Audio Stream (TXC OSCILLATOR) Provides precise time triggers to Digital-Analog Converters. High resistance to corrosion and oxidation. Hi-Res Audio Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times. Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS® codecs. DTS Sound Unbound leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization. DEFINITIVE AESTHETICS X570S AORUS MASTER features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC. BIOS New User Interface All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites Add constantly used items into the favorite menu for quick access. Storage Information Show all kinds of storage information including SATA, PCIE and M.2 interface. Changelog List all changes before saving and exiting bios. Quickly review overall settings modification. Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph. MultiKey A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios. - RGB Switch Turn off all lighting effect on motherboard. - Direct-To-BIOS Boot into BIOS menu directly without pressing any keyboard button. - Safe Mode Boot into BIOS safe mode to change specific option without losing other BIOS settings. EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. ULTRA DURABLE GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE Motherboard and reinforce every slot to make each of them solid and durable. Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! Ultra Durable™ PCIe Armor Industry Leading Ultra Durable™ PCIe Armor The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards. Ultra Durable™ Memory Armor AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference. Solid Pin Power Connectors AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading. Solid Pin Power connector advantages - Larger contact area for electricity - More metal quantity to sustain higher power and generated heat - Ultra durable and longer lifespan



Specification:



Internal I/O
Number of M.2 (M) slots	3
Thunderbolt headers	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	4
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
HDMI version	2.1
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
RAID levels	0, 1, 10
Windows operating systems supported	Windows 10 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	AMD Ryzenâ„¢ 3, AMD Ryzenâ„¢ 5, AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9, AMD Ryzen 9 5th Gen
Supported processor sockets	Socket AM4
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266,4300,4400,4600,4866,5000,5100,5200,5400 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels	0, 1, 10
Number of storage drives supported	9
RAID support	Yes
Graphics
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	4
WiFi-AP antenna jack	2
S/PDIF out port	Yes
Microphone in	Yes
Headphone outputs	5
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Features
Motherboard chipset family	AMD
Motherboard chipset	AMD X570
Windows operating systems supported	Windows 10 x64
Supported processor sockets	Socket AM4
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC1220-VB
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	3
PCI Express x16 slots	3
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64
Drivers included	Yes
Bundled software	Norton Internet Security, cFosSpeed
Weight & dimensions
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Bundled software	Norton Internet Security, cFosSpeed
Other features
Height	3.15" (80 mm)
Weight	2.2 lbs (1 kg)
