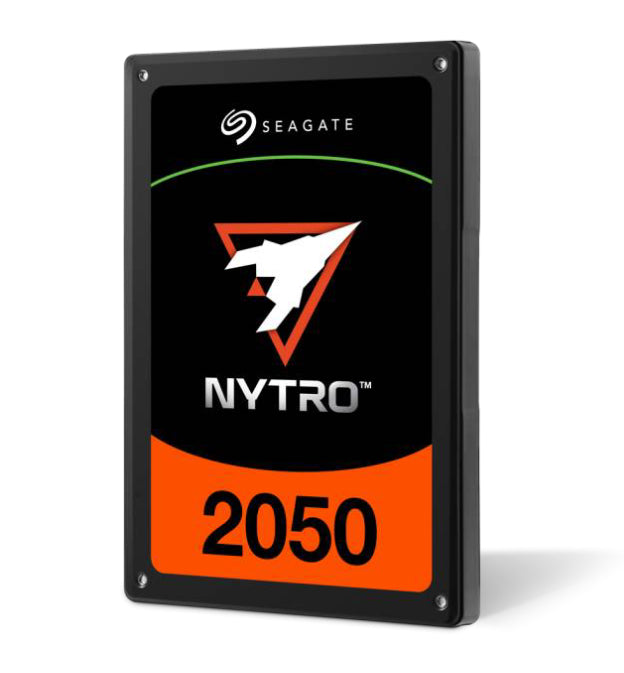

XS3840SE70085 - Seagate 3840 SAS ENTERPRISE SSD

The Seagate Nytro 2050 SAS SSD is the superior SATA alternative, delivering up to 7 TB in 2.5-in x 15 mm form factor. Harness a 12 Gb/s interface with dual ports for speeds up to 1,050 MB/s, choose from three endurance options including up to 3 DWPD, and rely on drive monitoring and government-grade encryption. It’s all here — fast, consistent, scalable, and secure performance for the most demanding enterprise workloads.



Specification:



Hard drive
SSD capacity	3840 GB
Memory type	3D eTLC
Performance
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Interface	SAS
Component for	Server/workstation
SSD capacity	3840 GB
Read speed	2200 MB/s
Write speed	1650 MB/s
Memory type	3D eTLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	85000 IOPS
Random read (4KB)	240000 IOPS
Hardware encryption	Yes
Data transfer rate	12 Gbit/s
Data transmission
Read speed	2200 MB/s
Write speed	1650 MB/s
Random write (4KB)	85000 IOPS
Random read (4KB)	240000 IOPS
Data transfer rate	12 Gbit/s
Endurance
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Design
Component for	Server/workstation
SSD form factor	2.5"
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Features
Interface	SAS
Component for	Server/workstation
SSD capacity	3840 GB
Windows operating systems supported	Yes
Read speed	2200 MB/s
Write speed	1650 MB/s
Linux operating systems supported	Yes
Memory type	3D eTLC
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Random write (4KB)	85000 IOPS
Random read (4KB)	240000 IOPS
Hardware encryption	Yes
Data transfer rate	12 Gbit/s
SSD form factor	2.5"
Harmonized System (HS) code	84717070
Power
Current	0.8 A
Operating voltage	5 V
Technical details
Interface	SAS
Hardware encryption	Yes
Master (outer) cases per pallet	90 pc(s)
SSD form factor	2.5"
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Weight & dimensions
Width	2.76" (70.1 mm)
Weight	5.82 oz (165 g)
Height	0.591" (15 mm)
Depth	3.95" (100.5 mm)
Logistics data
Master (outer) cases per pallet	90 pc(s)
Other features
Uncorrectable Bit Error Rate (UBER)	< 1 per 10^17 bits read
Master (outer) cases per pallet	90 pc(s)
