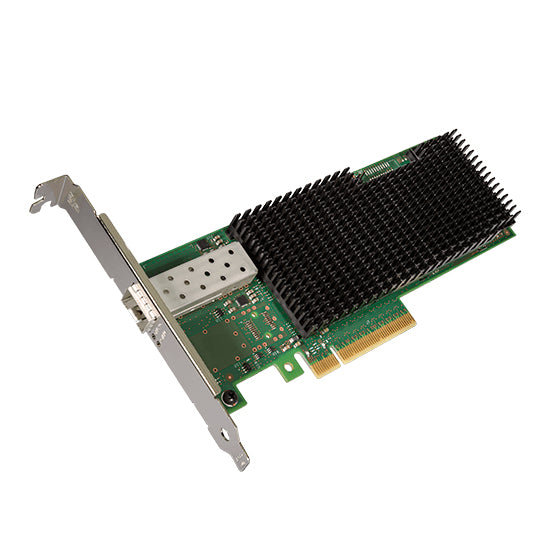

XXV710DA1BLK - Intel INTEL ETHERNET NETWORK ADAPTER
XXV710DA1BLK - Intel INTEL ETHERNET NETWORK ADAPTER
SKU:XXV710DA1BLK
Regular price
$729.79 USD
Regular price
Sale price
$729.79 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Intel XXV710DA1BLK. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s. Product color: Black, Green
Specification:
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Data transfer rate | 8 GT/s |
| Maximum data transfer rate | 25000 Mbit/s |
| Network | |
| Data transfer rate | 8 GT/s |
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
| Maximum operating distance | 196.9" (5 m) |
| Ethernet LAN data rates | 1000,10000,25000 Mbit/s |
| Maximum data transfer rate | 25000 Mbit/s |
| Technical details | |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Product colour | Black, Green |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Product type | Network Interface Card |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper, Fiber |
| Market segment | Server |
| Launch date | Q1'17 |
| Last change | 64826842 |
| Design | |
| Product colour | Black, Green |
| Internal | Yes |
| Product family | Intel® 25 Gigabit Server Adapters |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Software | |
| Linux operating systems supported | Yes |
| Other operating systems supported | VMware vSphere ESXi |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Linux operating systems supported | Yes |
| Other operating systems supported | VMware vSphere ESXi |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 6.57" (167 mm) |
| Height | 2.7" (68.7 mm) |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Ethernet adapter ARK ID | 95260 |
| Linux operating systems supported | Yes |
| Other operating systems supported | VMware vSphere ESXi |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Other features | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Data transfer rate | 8 GT/s |
| Product type | Network Interface Card |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Ethernet adapter ARK ID | 95260 |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Cable type | SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Data Direct I/O Technology | Yes |
| Storage Over Ethernet | iSCSI, NFS |
| Status | Launched |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-products/network-adapters/ethernet-xxv710-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper, Fiber |
| Market segment | Server |
| Launch date | Q1'17 |
| Last change | 64826842 |
| Product family | Intel® 25 Gigabit Server Adapters |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Cabling type | SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Target market | Artificial Intelligence, High Performance Computing |
