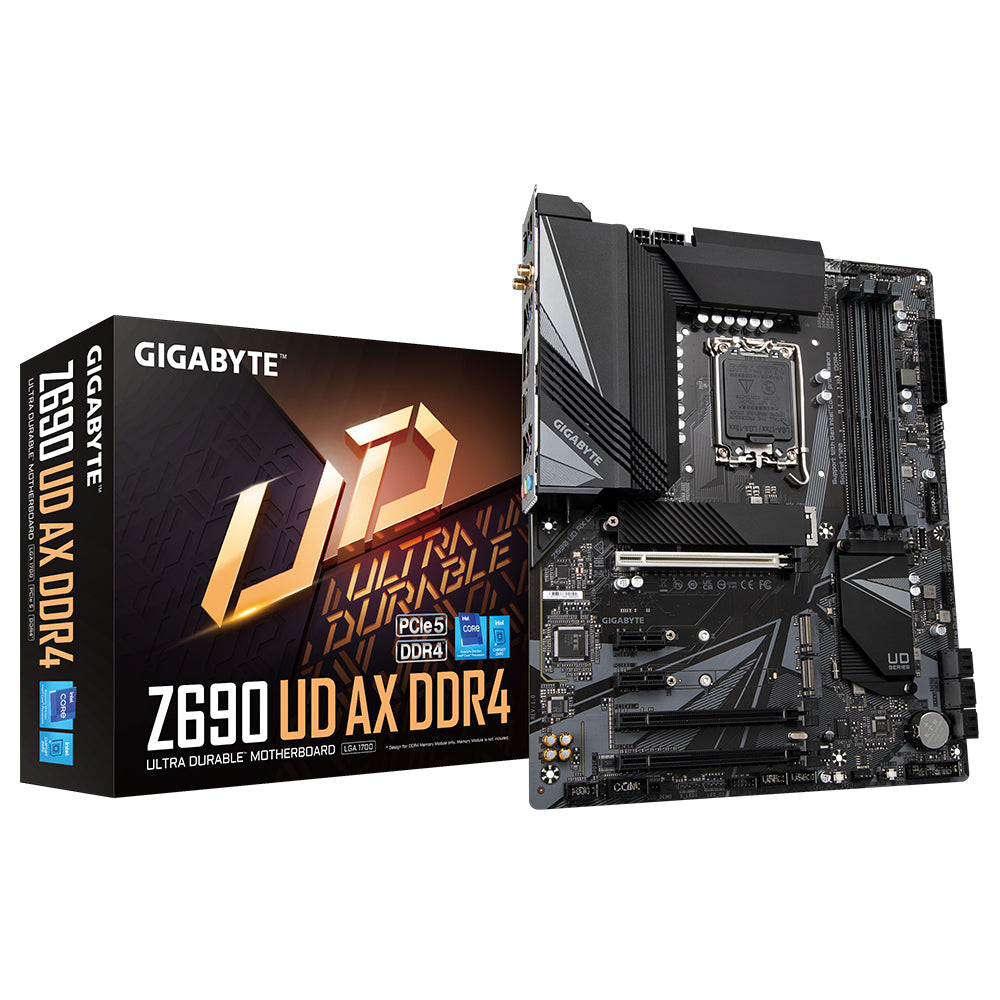

Gigabyte Z690 UD AX DDR4

UNPARALLELED PERFORMANCE With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. ADVANCED THERMAL SOLUTION Z690 UD AX DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. NEXT GENERATION CONNECTIVITY GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. ULTRA DURABLE GIGABYTE Ultra Durableâ„¢ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.



Specification:



Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
RAID levels	0, 1, 5, 10
Windows operating systems supported	Windows 10 x64
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
Graphics
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
HDCP	Yes
Internal I/O
Thunderbolt headers	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA III connectors	6
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	4
Thunderbolt ports quantity	2
S/PDIF out port	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
Windows operating systems supported	Windows 10 x64
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
PCI Express x16 slots	1
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64
Weight & dimensions
Height	2.76" (70 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Other features
Height	2.76" (70 mm)
Weight	2.2 lbs (1 kg)
