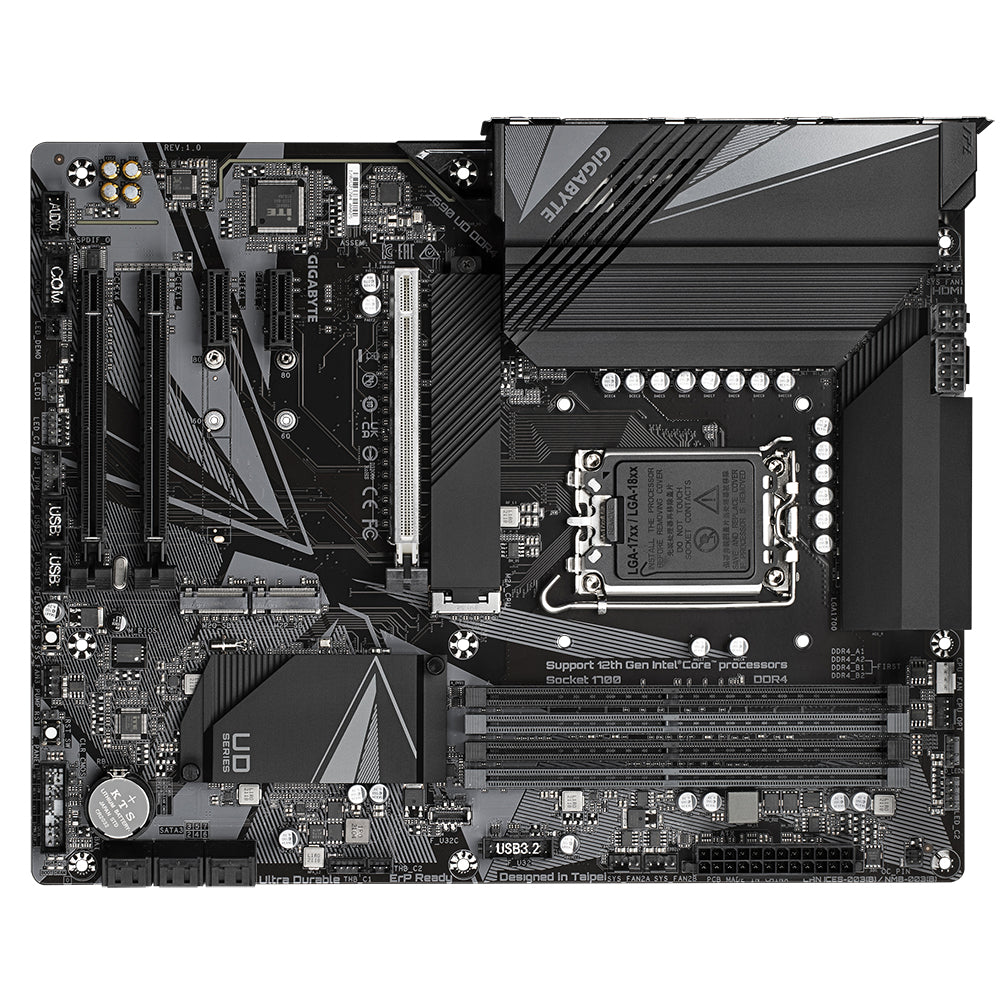

Gigabyte Z690 UD DDR4

UNPARALLELED PERFORMANCE With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. ADVANCED THERMAL SOLUTION Z690 UD DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. NEXT GENERATION CONNECTIVITY GIGABYTE Z690 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network and storage connectivity. ULTRA DURABLE GIGABYTE Ultra Durableâ„¢ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.



Specification:



Internal I/O
Number of M.2 (M) slots	5
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	6
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
Parallel processing technology support	Crossfire, SLI
Motherboard form factor	ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
RAID levels	0, 1, 5, 10
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors	1
Processor socket	LGA 1700
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	4000,5600,6666 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 1, 5, 10
RAID support	Yes
Graphics
Parallel processing technology support	Crossfire, SLI
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	7
USB 2.0 ports quantity	2
WiFi-AP antenna jack	2
S/PDIF out port	Yes
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Digital audio optical out	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
LAN controller	Intel I225-V
Ethernet interface type	2.5 Gigabit Ethernet
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC4080
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	5
PCI Express x4 slots	1
PCI Express x16 slots	2
BIOS
BIOS type	UEFI AMI
Clear CMOS button	Yes
Software
Drivers included	Yes
Weight & dimensions
Height	2.56" (65 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	2.56" (65 mm)
Weight	2.2 lbs (1 kg)
