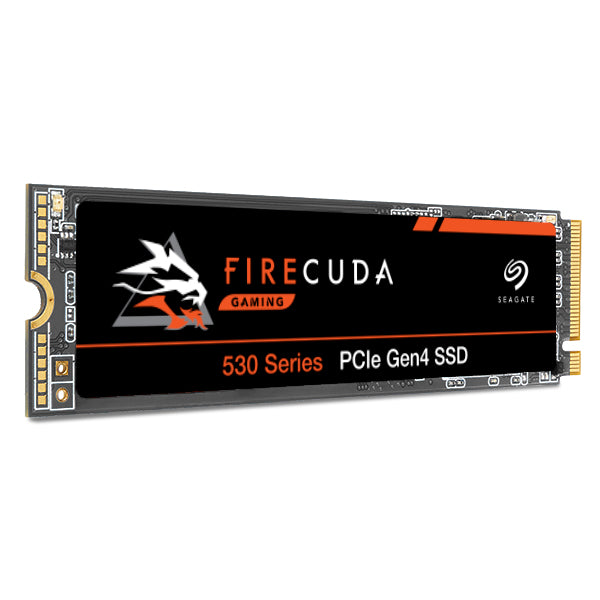

ZP1000GM3A013 - Seagate FIRECUDA 530 1TB M.2S PCIE CLIENT SSD

Performance nothing short of exhilarating, the FireCuda® 530 redefines speed — up to 7,300 MB/s catalyses PCIe® Gen4 power. With transfer rates 2x faster than PCIe Gen3 and 12x faster than SATA SSDs, this SSD is built for sustained abuse and accelerated gaming. Speed Reigns — The Fastest FireCuda Ever FireCuda 530 dominates the SSD lineup, delivering: - Blistering transfer speeds of up to 7,300 MB/s. - Absolute power to make content creations apps run faster and smoother. - Lightning-fast video rendering and exporting. - Responsive performance built for accelerated gaming and sustained abuse — record, download, rewrite, repeat. Absolute Performance Up to 2x faster than PCIe Gen3 NVMe™ SSDs and up to 12x faster than SATA SSDs — the FireCuda 530 redefines speed. Cool Speed Ahead NVMe PCIe Gen4 extreme speeds generate extra heat. That’s why Seagate partnered with EKWB — the leaders in heat management — to develop FireCuda 530’s custom heatsink. Built from a high-grade aluminium block with a finely textured anodized finish to help maximise cooling efficiency, this built-in heatsink helps minimise thermal throttling while maximising peak performance for longer periods of time. Form and Function Low-profile heatsink design allows for installation in tighter spaces, and premium dark gunmetal grey anodization creates additional micropores in the material surface to promote cooling properties. Endurance Unleashed Designed to perform under heavy use and tough enough to go the distance with: - 0.7 Drive Writes per Day — fill and delete 70% of the drive capacity, every day, for five years. - 1.8 Million Hours Mean Time Between Failures for trusted reliability. - Up to 5,100 TB Total Terabytes Written — durability delivered. Latest Tech Push your rig to its limit — the FireCuda 530 is built with a Seagate-validated E18 controller and the latest 3D TLC NAND for the most advanced speed and durability.



Specification:



Hard drive
PCI Express interface data lanes	x4
SSD capacity	1000 GB
Memory type	3D TLC
Performance
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	1275
PCI Express interface data lanes	x4
SSD capacity	1000 GB
S.M.A.R.T. support	Yes
Read speed	7300 MB/s
TRIM support	Yes
Write speed	6000 MB/s
Memory type	3D TLC
Random write (4KB)	1000000 IOPS
Random read (4KB)	800000 IOPS
Mean time between failures (MTBF)	1800000 h
Data transmission
Read speed	7300 MB/s
Write speed	6000 MB/s
Random write (4KB)	1000000 IOPS
Random read (4KB)	800000 IOPS
Endurance
Mean time between failures (MTBF)	1800000 h
Design
Component for	PC
SSD form factor	M.2
System requirements
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Features
Interface	PCI Express 4.0
Component for	PC
NVMe	Yes
NVMe version	1.4
TBW rating	1275
PCI Express interface data lanes	x4
SSD capacity	1000 GB
Windows operating systems supported	Windows 10
S.M.A.R.T. support	Yes
Read speed	7300 MB/s
TRIM support	Yes
Write speed	6000 MB/s
Linux operating systems supported	Yes
Memory type	3D TLC
Random write (4KB)	1000000 IOPS
Random read (4KB)	800000 IOPS
Mean time between failures (MTBF)	1800000 h
SSD form factor	M.2
Harmonized System (HS) code	84717070
Power
Power consumption (average)	6.5 W
Power consumption (idle)	0.016 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	40 - 85 °C
Non-operating shock	1500 G
Technical details
Interface	PCI Express 4.0
S.M.A.R.T. support	Yes
Operating temperature (T-T)	0 - 70 °C
TRIM support	Yes
Storage temperature (T-T)	40 - 85 °C
Non-operating shock	1500 G
Products per pallet	480 pc(s)
Layers per pallet	4 pc(s)
Master (outer) cases per pallet	48 pc(s)
SSD form factor	M.2
Sustainability certificates	RoHS
Doesn't contain	Halogen
Pallet gross weight	104.7 lbs (47.5 kg)
Software
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Weight & dimensions
Package width	4.29" (109 mm)
Package depth	0.945" (24 mm)
Package height	5.29" (134.2 mm)
Package weight	2.19 oz (62 g)
Width	0.953" (24.2 mm)
Weight	1.66 oz (47 g)
Height	0.387" (9.84 mm)
Depth	3.16" (80.2 mm)
Packaging data
Package width	4.29" (109 mm)
Package depth	0.945" (24 mm)
Package height	5.29" (134.2 mm)
Package weight	2.19 oz (62 g)
Master (outer) case width	10.9" (278 mm)
Master (outer) case length	6.65" (169 mm)
Master (outer) case gross weight	32.5 oz (920 g)
Products per master (outer) case	10 pc(s)
Logistics data
Master (outer) case width	10.9" (278 mm)
Master (outer) case length	6.65" (169 mm)
Master (outer) case gross weight	32.5 oz (920 g)
Products per master (outer) case	10 pc(s)
Products per pallet	480 pc(s)
Layers per pallet	4 pc(s)
Master (outer) cases per pallet	48 pc(s)
Pallet gross width	20" (50.8 cm)
Pallet gross length	48" (121.9 cm)
Pallet gross height	27.8" (70.6 cm)
Other features
Products per pallet	480 pc(s)
Layers per pallet	4 pc(s)
Master (outer) cases per pallet	48 pc(s)
