QSFP40GPC1M - StarTech.com QSFP+ DIRECT-ATTACH TWINAX CABLE COMPLIES W/ MSA INDUSTRY STANDARDS - COPPER TWI

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

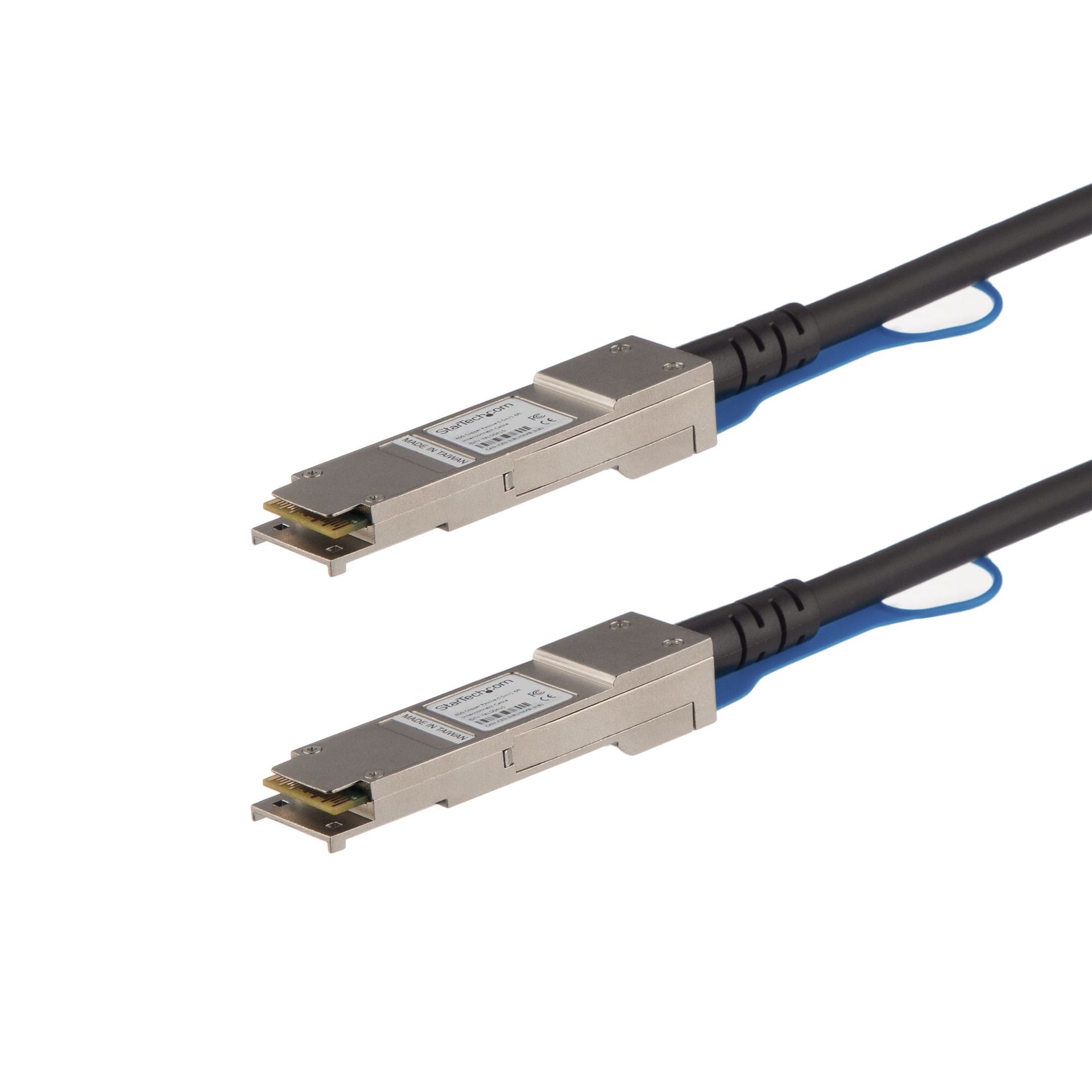

The QSFP40GPC1M is an MSA compliant direct-attach copper QSFP+ cable that’s designed, programmed and tested to work in 40G network deployments. It delivers dependable 40 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.  

This passive Twinax cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

At 1 meter long and designed for high-speed performance, this copper QSFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- MSA UNCODED QSFP+ CABLE (DAC): 40G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 1m (3.3ft)
- 40 Gbps



Specification:



Technical details
Product colour	Black
Plug and Play	Yes
Connector 1	QSFP+
Connector 2	QSFP+
Cabling technology	40GBase-T
Data transfer rate	40000 Mbit/s
Input impedance	100 Ω
Jacket material	Polyvinyl chloride (PVC)
Cable length	118.1" (3 m)
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC, REACH
Features
Input impedance	100 Ω
Product colour	Black
AWG wire size	30
Plug and Play	Yes
Connector 1	QSFP+
Connector 2	QSFP+
Cabling technology	40GBase-T
Data transfer rate	40000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Certification	CE, FCC, REACH
Cable length	118.1" (3 m)
Harmonized System (HS) code	84733080
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-40 - 80 °C
Operating temperature (T-T)	0 - 70 °C
Weight & dimensions
Width	0.709" (18 mm)
Depth	118.1" (3000 mm)
Height	0.315" (8 mm)
Weight	8.89 oz (252 g)
Packaging data
Package width	9.84" (250 mm)
Package depth	12.8" (325 mm)
Package height	0.984" (25 mm)
Package weight	9.45 oz (268 g)
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	20 pc(s)
Master (outer) case width	10" (255 mm)
Master (outer) case length	13.5" (344 mm)
Master (outer) case height	11.6" (295 mm)
Other features
Input impedance	100 Ω
