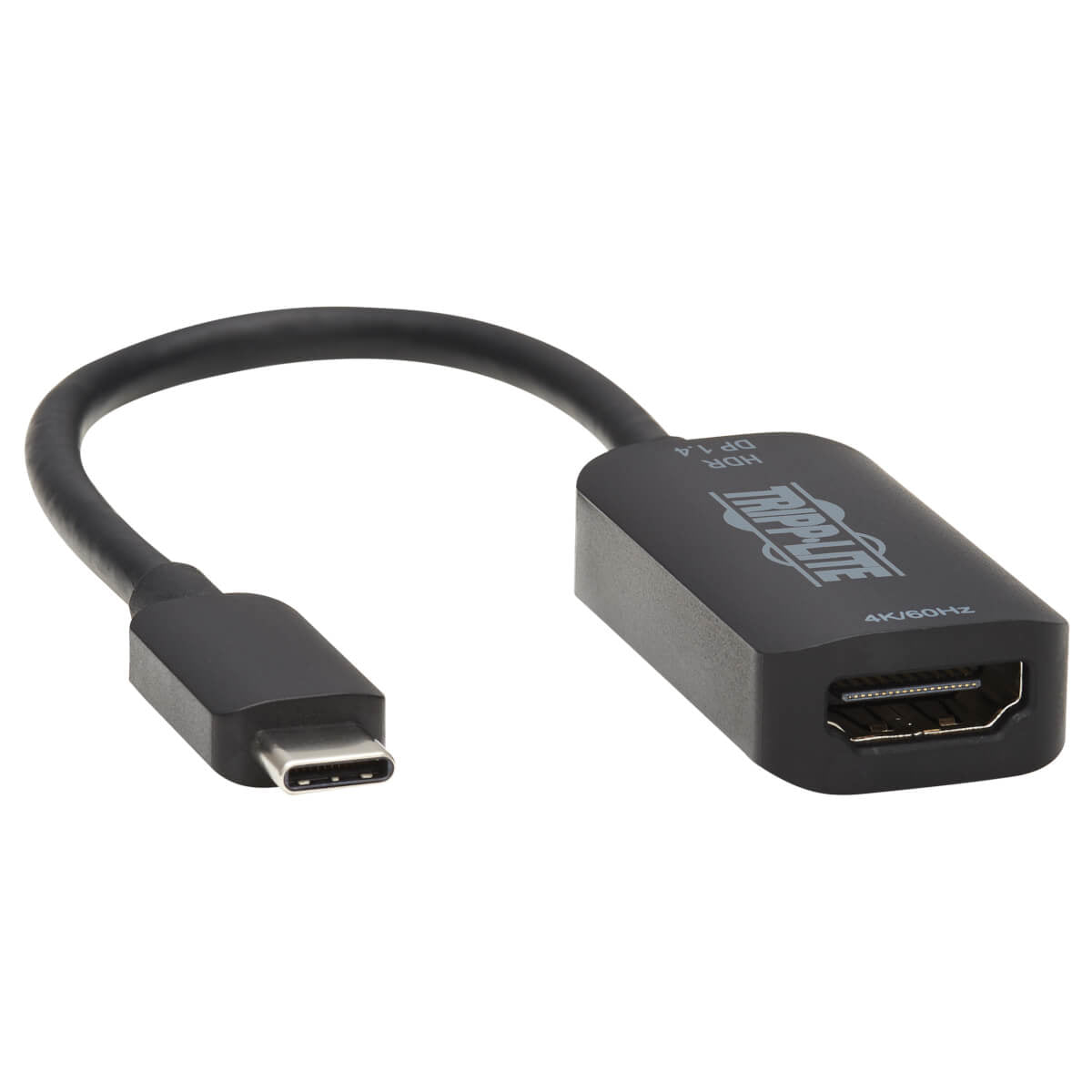

U444-06N-HDR4-B - Tripp Lite USB C TO HDMI ADAPTER CABLE 4K 60HZ M/F THUNDERBOLT 3 DP 1.4 6IN

USB-C to HDMI Converter Connects a USB-C or Thunderbolt 3 Port to a 4K Monitor This USB Type-C to HDMI adapter (M/F) connects to an HDMI cable to add an HDMI monitor, projector or television to the USB-C or Thunderbolt 3 port on your MacBook Pro or Windows laptop. It’s an ideal connector for multitasking, presenting video at trade shows and conferences, editing documents, playing online games and watching movies on a larger 4K screen. Supports USB-C DisplayPort 1.4 Alternate Mode for Converting Audio/Video Signals By connecting the USB-C cable to a source device that supports USB DisplayPort 1.4 Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers. The cable is backward compatible with DP 1.2 Alt Mode signals. Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color The U444-06N-HDR4-B supports Ultra HD video resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This adapter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Reversible USB-C Connector Attaches in Either Direction Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. Ready to Use Right from the Package, So You Can Plug and Play Immediately The plug-and-play USB Type-C to HDMI cable requires no software or external power. Just connect the USB-C plug to the USB-C or Thunderbolt 3 port on a source device that supports USB DisplayPort Alternate Mode, and connect the HDMI port to your 4K display with an HDMI cable (sold separately). This adapter is backward compatible with 1080p displays, allowing you to use it with older equipment.



Specification:



Features
Country of origin	Vietnam
Colour depth	24 bit
HDMI version	2.0
Product colour	Black
Plug material	Polyvinyl chloride (PVC) + Acrylonitrile butadiene styrene (ABS)
Cable length	5.98" (0.152 m)
Connector 1	USB Type-C
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Female
Connector contacts plating	Nickel/Gold
Jacket material	Thermoplastic elastomer (TPE)
AWG wire size	34/24
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
HDCP	Yes
Plug and Play	Yes
Certification	REACH, CE, FCC, WEEE, ISO9001
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDCP version	2.2
High Dynamic Range (HDR) supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	RoHS
Technical details
Country of origin	Vietnam
Sustainability certificates	RoHS
Weight & dimensions
Cable diameter	0.165" (4.2 mm)
Weight	1.06 oz (30 g)
Package width	4.72" (119.9 mm)
Package depth	3.94" (100.1 mm)
Package height	0.791" (20.1 mm)
Package weight	1.41 oz (40 g)
Packaging data
Manual	Yes
Package width	4.72" (119.9 mm)
Package depth	3.94" (100.1 mm)
Package height	0.791" (20.1 mm)
Package type	Box
Package weight	1.41 oz (40 g)
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Package type	Box
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	10" (255 mm)
Master (outer) case length	4.72" (119.9 mm)
Master (outer) case height	4.53" (115.1 mm)
Master (outer) case gross weight	22.6 oz (640 g)
Products per master (outer) case	10 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332253795
