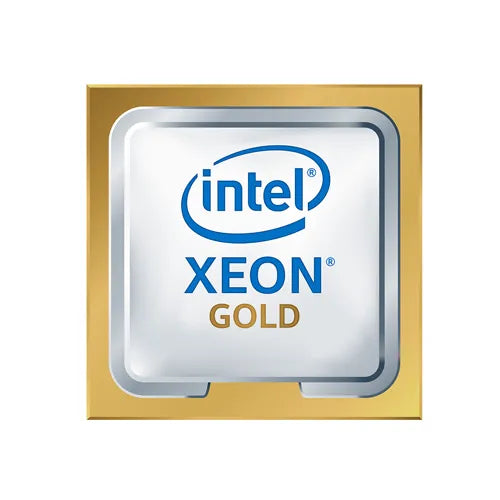

7XG7A03949 - Lenovo SR850 XEON 6126 12C/125W/2.6GHZ

The SR850 supports Gold and Platinum level processors in the Intel Xeon Processor Scalable Family. The server supports two or four processors. - Processors 1 and 2 are installed in sockets on the system board. - Processors 3 and 4 are installed on the Processor and Memory Expansion Tray. The SR850 Processor and Memory Expansion Tray has a patent-pending sliding and rolling lift mechanism that requires only a one-handed operation to insert or remove from the server. It has a toolless design for superior usability, serviceability and reliability.



Specification:



Processor
Processor generation	1st Generation Intel Xeon Scalable
Processor base frequency	3 GHz
Cooler included	No
Processor codename	Skylake
Thermal Design Power (TDP)	200 W
Processor cache	24.75 MB
Processor model	6154
Processor threads	36
Processor operating modes	64-bit
Processor boost frequency	3.7 GHz
Stepping	H0
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel Xeon Gold
Processor cores	18
Processor socket	LGA 3647 (Socket P)
Processor series	Intel Xeon Gold 6000 Series
Processor cache type	L3
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory channels	Hexa-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	200 W
Technical details
Intel TSX-NI	Yes
Intel Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel Hyper Threading Technology (Intel HT Technology)	Yes
Intel AES New Instructions (Intel AES-NI)	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX,AVX 2.0,AVX-512,SSE4.2
Scalability	S4S
Embedded options available	Yes
Intel 64	Yes
Thermal Design Power (TDP)	200 W
Processor series	Intel Xeon Gold 6000 Series
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Features
Maximum number of PCI Express lanes	48
Thermal Design Power (TDP)	200 W
PCI Express slots version	3.0
Supported instruction sets	AVX,AVX 2.0,AVX-512,SSE4.2
Scalability	S4S
Embedded options available	Yes
Market segment	Server
Processor special features
Intel 64	Yes
Conflict-Free processor	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel Speed Shift Technology	Yes
Intel Optane Memory Ready	No
Intel TSX-NI	Yes
Intel Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel Hyper Threading Technology (Intel HT Technology)	Yes
Intel AES New Instructions (Intel AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel vPro Platform Eligibility	Yes
Operational conditions
Tcase	82 °C
