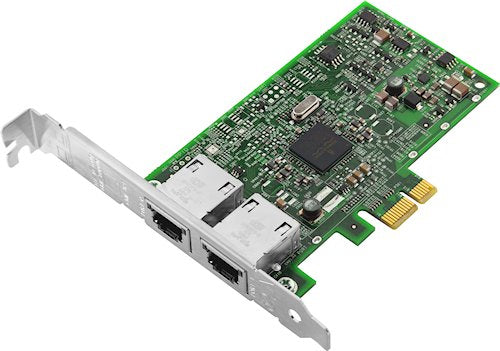

7ZT7A00482 - Lenovo THINKSYSTEM BROADCOM NETXTREME PCIE 1GB 2-PORT RJ45 ETHERNET ADAPTER

The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers. This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.



Specification:



Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
Networking standards	IEEE 802.1Q
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Design
Internal	Yes
Component for	Server/workstation
Weight & dimensions
Width	5.2" (132 mm)
Depth	0.748" (19 mm)
Height	2.56" (65 mm)
Technical details
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
