7ZT7A00548 - Lenovo THINKSYSTEM 10GB 2-PORT BASE-T LOM

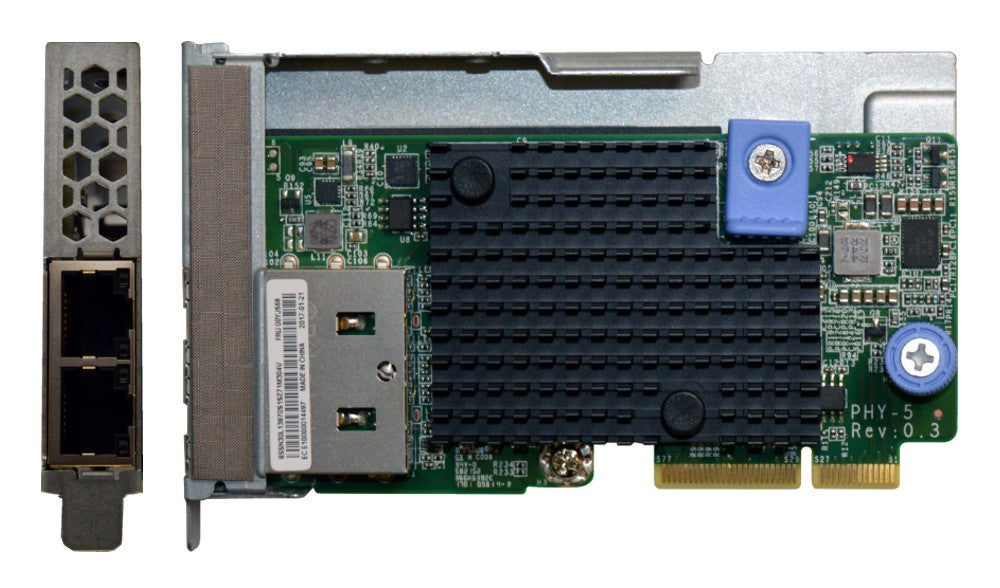

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model. The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.



Specification:



Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
Chipset	Intel® C624
VLAN tagging	Yes
Jumbo frames	9728
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Security algorithms	SNMP
Cabling technology	10GBase-T
Networking standards	IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Maximum data transfer rate	10000 Mbit/s
Flow control support	Yes
Antenna
Quality of Service (QoS) support	Yes
Technical details
Compatible products	SR630 SR650 SR850 SR860 SR950
Quality of Service (QoS) support	Yes
Product colour	Green
Receive Side Scaling (RSS)	Yes
PCI-SIG* SR-IOV Capable	Yes
Number of VLANs	4096
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS
Design
Compatible products	SR630 SR650 SR850 SR860 SR950
Product colour	Green
Chipset	Intel® C624
Certification	UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Internal	Yes
Software
Linux operating systems supported	Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2
Other operating systems supported	VMware vSphere ESXi
System requirements
Server operating systems supported	Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Linux operating systems supported	Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2
Other operating systems supported	VMware vSphere ESXi
Sustainability
Sustainability certificates	RoHS
Security
Security algorithms	SNMP
Performance
Server operating systems supported	Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Compatible products	SR630 SR650 SR850 SR860 SR950
Security algorithms	SNMP
Linux operating systems supported	Red Hat Enterprise Linux WS 6.0, Red Hat Enterprise Linux WS 7.0, openSUSE 11.3, openSUSE 11.4, openSUSE 12.1, openSUSE 12.2
Other operating systems supported	VMware vSphere ESXi
Receive Side Scaling (RSS)	Yes
PCI-SIG* SR-IOV Capable	Yes
Number of VLANs	4096
Certificates
Certification	UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Other features
Chipset	Intel® C624
Jumbo frames	9728
Receive Side Scaling (RSS)	Yes
PCI-SIG* SR-IOV Capable	Yes
Number of VLANs	4096
Flow control support	Yes
Harmonized System (HS) code	85176990
