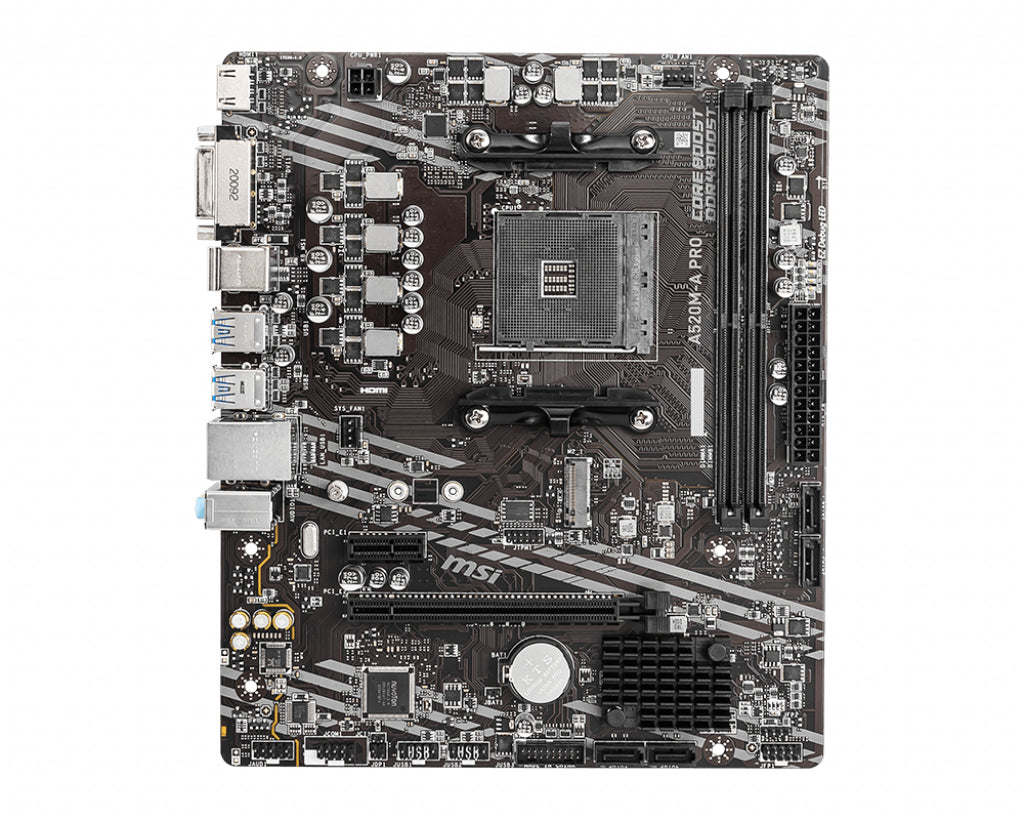

A520MAPRO - MSI A520M-A PRO - MATX - SUPPORT 3RD GEN AMD RYZEN DESKTOP PROCESSORS AND AMD RYZEN4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FULLY FAN CONTROL FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again. DOUBLE ESD PROTECTION ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. USB 3.2 GEN 1 Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.



Specification:



Internal I/O
Number of M.2 (M) slots	1
Total number of SATA connectors	4
Front panel connector	Yes
Supported storage drive interfaces	PCI Express 3.0, SATA
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Number of SATA III connectors	4
Number of chassis fan connectors	1
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Motherboard form factor	micro ATX
Component for	PC
Total number of SATA connectors	4
Number of mounting holes	6
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
RAID levels	0, 1, 10
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz
Maximum internal memory	64 GB
Unbuffered memory	No
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	PCI Express 3.0, SATA
RAID levels	0, 1, 10
Graphics
Maximum resolution	4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	1
Microphone in	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek 8111H
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Number of mounting holes	6
Motherboard chipset family	AMD
Motherboard chipset	AMD A520
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC892
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 slots	1
Power
Power source type	ATX
Video
Maximum resolution	4096 x 2160 pixels
Weight & dimensions
Height	2.56" (65 mm)
Weight	24.6 oz (698 g)
Width	9.61" (244 mm)
Depth	8.27" (210 mm)
Other features
Height	2.56" (65 mm)
Weight	24.6 oz (698 g)
