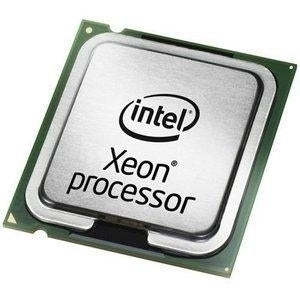

AT80602002091AA - Intel E5520 2.26G 4C 8M PROC

Intel Xeon E5520. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 144 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Number of Processing Die Transistors: 731 M, Processing Die size: 263 mm². Package type: Retail box. Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor base frequency	2.13 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Nehalem EP
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	60 W
Processor cache	8 MB
Processor ARK ID	40727
Processor model	L5518
Processor threads	8
System bus rate	5.86 GT/s
Processor operating modes	64-bit
Compatible chipsets	Intel® 5500, Intel® 5520
VID Voltage Range	0.75 - 1.35 V
Processor boost frequency	2.4 GHz
Number of QPI links	2
Bus type	QPI
Component for	Server/workstation
Processor lithography	45 nm
Processor family	Intel® Xeon® 5000 Sequence
Processor cores	4
Box	No
Processor socket	LGA 1366 (Socket B)
Processor series	Intel Xeon 5500 Series
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	144 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	Yes
Power
Thermal Design Power (TDP)	60 W
VID Voltage Range	0.75 - 1.35 V
Technical details
Cache memory	8 MB
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Number of Graphics & IMC Die Transistors	731 M
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	Yes
CPU configuration (max)	2
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	60 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon L5518 (8M Cache, 2.13 GHz, 5.86 GT/s Intel QPI)
Processor series	Intel Xeon 5500 Series
Processor core voltage	0.75 -1.35 V
Physical Address Extension (PAE)	40 bit
Market segment	Embedded
Launch date	Q1'09
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5.86
Born on date	Q1'09
Maximum memory	144 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor 5000 Sequence
Bus speed	5.86 GT/s
Features
Thermal Design Power (TDP)	60 W
Processor package size	42.5mm x 45mm
Processor ARK ID	40727
Idle States	Yes
Execute Disable Bit	Yes
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Number of Graphics & IMC Die Transistors	731 M
Embedded options available	Yes
CPU configuration (max)	2
Physical Address Extension (PAE)	40 bit
Market segment	Embedded
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991.A.1
Commodity Classification Automated Tracking System (CCATS)	NA
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	85 °C
Weight & dimensions
Processor package size	42.5mm x 45mm
Other features
Cache memory	8 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Temperature (max)	85 °C
Maximum internal memory	144 GB
Maximum internal memory	147456 MB
CPU configuration (max)	2
Compatibility	Intel Server Board S5520UR Intel Server Board S5520HC Intel Workstation Board S5520SC Intel Server Board S5500BC Intel Server Board S5500WB Intel Server Board S5500HCV Intel Server Board S5500HV Intel Server Board S5500WB12V Intel Server Board S5520HCT Intel Server Board S5520URT Intel Server System SR2625URLX Intel Server System SR2600URBRP Intel Server System SR1690WB Intel Server System SR2612UR Intel Server System SR1670HV Intel Server System SR1630BC Intel Server System SC5650HCBRP Intel Server System SR1600UR Intel Server System SR1625UR Intel Server System SR1680MV Intel Workstation System SC5650SCWS Intel Server System SR1630BCR Intel Server System SC5650BCDPR Intel Server System SC5650HCBRPR Intel Server System SR2625URLXR Intel Server System SR2625URLXT Intel Server System SR2625URBRP Intel Server System SR2625URBRPR Intel Server System SR1600URR Intel Server System SR1600URHS Intel Server System SR1600URHSR Intel Server System SR1625URR Intel Server System SR1625URSAS Intel Server System SR1625URSASR Intel Server System SR2600URBRPR Intel Server System SR2600URLX Intel Server System SR2600URLXR Intel Server System SR2600URSATA Intel Server System SR2600URSATAR Intel Server System SR2612URR Intel Server System SR1695WBAC Intel Server System SC5650BCDP Intel Server System SR1695WBDC Intel Server System SR1690WBR
