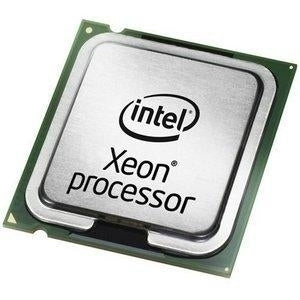

AT80602002712AA - Intel XEON L5506

Intel Xeon L5506. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 144 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Physical Address Extension (PAE): 40 bit, Export Control Classification Number (ECCN): 3A991.A.1. Package type: Retail box. Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor base frequency	2 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Nehalem EP
Memory bandwidth supported by processor (max)	19.2 GB/s
Thermal Design Power (TDP)	80 W
Processor cache	4 MB
Processor ARK ID	37094
Processor model	E5503
Processor threads	2
System bus rate	4.8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.75 - 1.35 V
Stepping	D0
Number of QPI links	2
CPU multiplier (bus/core ratio)	15
Bus type	QPI
Component for	Server/workstation
Processor lithography	45 nm
Processor family	Intel® Xeon® 5000 Sequence
Processor cores	2
Box	No
Processor socket	LGA 1366 (Socket B)
Processor code	SLBKD
Processor series	Intel Xeon 5500 Series
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	144 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	80 W
VID Voltage Range	0.75 - 1.35 V
Technical details
Cache memory	4 MB
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Physical Address Extension (PAE)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
Processor code	SLBKD
Product type	Processor
Processor cache	4096 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	80 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon E5503 (4M Cache, 2.00 GHz, 4.80 GT/s Intel QPI)
Processor series	Intel Xeon 5500 Series
Processor core voltage	0.75 -1.35 V
Physical Address Extension (PAE)	40 bit
Market segment	Server
Launch date	Q1'10
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	4.8
Born on date	Q1'10
Maximum memory	144 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor 5000 Sequence
Bus speed	4.8 GT/s
Features
Thermal Design Power (TDP)	80 W
Processor package size	42.5mm x 45mm
Processor ARK ID	37094
Thermal Monitoring Technologies	No
Idle States	Yes
Execute Disable Bit	Yes
Physical Address Extension (PAE)	Yes
Embedded options available	No
Processor code	SLBKD
Physical Address Extension (PAE)	40 bit
Market segment	Server
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991.A.1
Commodity Classification Automated Tracking System (CCATS)	NA
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Smart Cache	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	76 °C
Packaging data
Package type	Retail box
Weight & dimensions
Processor package size	42.5mm x 45mm
Other features
Cache memory	4 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	144 GB
Maximum internal memory	147456 MB
Processor code	SLBKD
