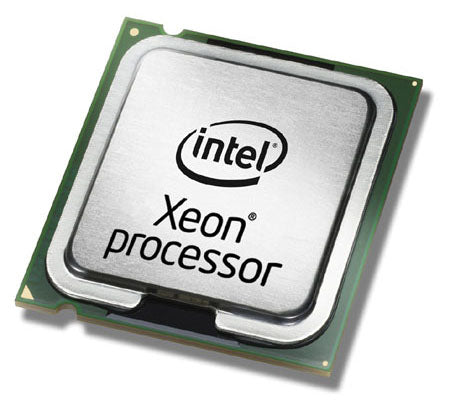

AT80614003597AC - Intel INTEL XEON PROCESSOR E5645

Intel Xeon E5645. Processor family: Intel® Xeon® 5000 Sequence, Processor socket: LGA 1366 (Socket B), Processor lithography: 32 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 288 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Supported instruction sets: SSE4.2, Physical Address Extension (PAE): 40 bit. Package width: 1.73" (44 mm), Package depth: 5.51" (140 mm), Package height: 4.61" (117 mm). Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor base frequency	2.66 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Westmere EP
Memory bandwidth supported by processor (max)	32 GB/s
Thermal Design Power (TDP)	95 W
Processor cache	12 MB
Processor system type	DP
Processor ARK ID	47922
Processor model	X5650
Processor threads	12
System bus rate	6.4 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.75 - 1.35 V
Processor boost frequency	3.06 GHz
Stepping	B1
Number of QPI links	2
CPU multiplier (bus/core ratio)	20
Bus type	QPI
Component for	Server/workstation
Processor lithography	32 nm
Processor family	Intel® Xeon® 5000 Sequence
Processor cores	6
Box	No
Processor socket	LGA 1366 (Socket B)
Processor code	SLBV3
Processor series	Intel Xeon 5600 Series
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	288 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory bandwidth supported by processor (max)	32 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	Yes
Graphics
On-board graphics adapter	No
Power
Thermal Design Power (TDP)	95 W
VID Voltage Range	0.75 - 1.35 V
Technical details
Cache memory	12 MB
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Supported instruction sets	SSE4.2
On-board memory controller	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	2
Processor code	SLBV3
Product type	Processor
Processor cache	12288 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	95 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon X5650 (12M Cache, 2.66 GHz, 6.40 GT/s Intel QPI)
Processor series	Intel Xeon 5600 Series
Processor core voltage	0.750-1.350 V
Physical Address Extension (PAE)	40 bit
Market segment	Server
Launch date	Q1'10
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	6.4
Born on date	Q1'10
Maximum memory	288 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor 5000 Sequence
Bus speed	6.4 GT/s
Features
Thermal Design Power (TDP)	95 W
Processor package size	42.5mm x 45mm
Processor ARK ID	47922
Thermal Monitoring Technologies	No
Idle States	Yes
Execute Disable Bit	Yes
Supported instruction sets	SSE4.2
Embedded options available	No
CPU configuration (max)	2
Processor code	SLBV3
Physical Address Extension (PAE)	40 bit
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	81.3 °C
Packaging data
Package type	Retail box
Weight & dimensions
Processor package size	42.5mm x 45mm
Package dimensions (WxDxH)	1.67 x 1.67 x 1.77" (42.5 x 42.5 x 45 mm)
Other features
Cache memory	12 MB
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
On-board memory controller	Yes
Maximum internal memory	288 GB
Maximum internal memory	294912 MB
CPU configuration (max)	2
Processor code	SLBV3
