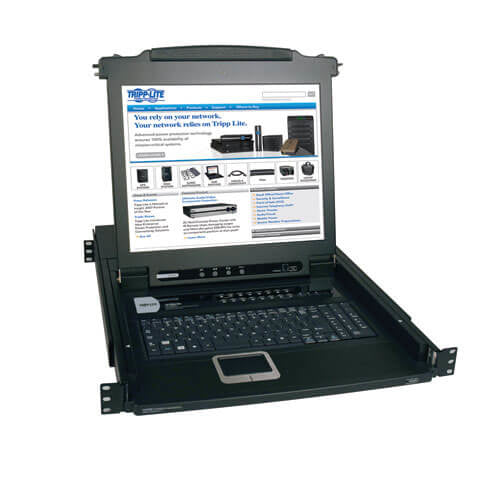

B020-016-17 - Tripp Lite 16-PORT RACK CONSOLE KVM SWITCH W/ 17INCH LCD PS/2 1U

Tripp Lite’s B020-016-17 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 16 computers/servers. Increase the number of connected computers to up to 264 by daisy-chaining up to 31 B022-U08 KVM switches The B020-016-17 has a built-in 17” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers. This switch controls PS/2 or USB computers/servers using a P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit (one of each is included). An extra HD15 port allows an additional VGA monitor to be connected. Two PS/2 ports also are included on the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. When not in use, the B020-016-17 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported). Heavy-duty steel housing stands up to frequent use. Saves Valuable Space and Money ● Combines a 16-port KVM switch, 17" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer ● Mounts into 19”-wide rack, 24”-37” deep ● Gives you control of up to 16 computers/servers from a single, easily accessible console – ideal when rack space is at a premium ● Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use ● Eliminates need to purchase costly separate monitors, keyboards and mice for each computer/server Simplifies IT Tasks ● Switch quickly and easily between the 16 ports via on-console buttons, on-screen display or keyboard hot key commands ● Hot pluggable; add or remove computers without having to power down the switch ● Auto-scan mode automatically sequences through all active ports that are accessible to the user Large 17” LCD ● Wide display makes multitasking easier ● Supports video resolutions up to 1280 x 1024 ● DDC emulation allows the video settings of each computer to be automatically adjusted for optimal output to the LCD Multi-Level Password Security ● Enhances security by limiting access to an administrator and up to 4 local users ● Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed Future Expandability and Long-Lasting Reliability ● Increase the number of connected computers to up to 264 by daisy-chaining up to 31 B022-U08 KVM switches ● Includes additional HD15 VGA monitor port and PS/2 keyboard/mouse ports, so you can connect an external console or a Tripp Lite B051-000 IP Remote Access Unit ● Compatible with all major operating systems for easy integration into your existing structure (special keys on Mac and Sun keyboards are not supported) ● Firmware is easily upgradable with included cable and utility ● Heavy-duty steel housing stands up to frequent use ● Occupies just 1U of space in a rack-mountable drawer ● 17” LCD screen supports video resolutions up to 1280 x 1024 ● Simplifies IT tasks with easy switching between all 16 ports ● Provides 2-level password security (administrator and user) ● Compatible with all operating systems System Requirements ● PS/2 or USB computer ● (1) P774-Series (PS/2) or P776-Series (USB) KVM Cable Kit is required for each connected computer/server ● Compatible with all major operating systems (special keys on Mac and Sun keyboards are not supported) ● Power consumption: 120V, 60Hz, 22.8W; 230V, 50Hz, 24W Package Includes ● B020-016-17 16-Port Console KVM Switch with 17" LCD ● P774-Series 6 ft. PS/2 KVM Cable Kit ● P776-Series 6 ft. USB KVM Cable Kit ● C13 to 5-15P power cord ● RJ11 to DB9 firmware upgrade cable ● Owner’s Manual CD



Specification:



Display
Display	LCD
Display diagonal	19"
On Screen Display (OSD)	Yes
Technical details
Country of origin	Taiwan
Operating relative humidity (H-H)	0 - 80%
KVM switch ports quantity	8
Height (in Rack Units)	1
Product colour	Black
Built-in KVM switch	Yes
Weight (imperial)	31 lbs
Ports & interfaces
Interface	PS2
Power
AC adapter input voltage	100 - 250 V
AC adapter frequency	50 Hz
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Certificates
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC 15 A, CE, IEC 60950-1, UL, cUL, CE, FCC
Weight & dimensions
Weight	29.5 lbs (13.4 kg)
Width	18.9" (480.1 mm)
Height	1.73" (43.9 mm)
Depth	27.1" (689.1 mm)
Packaging data
Package width	26.2" (665 mm)
Package depth	32.7" (830.1 mm)
Package height	5.12" (130 mm)
Package weight	39.7 lbs (18 kg)
Package dimensions (WxDxH)	32.5 x 26.1 x 5" (825.5 x 662.9 x 127 mm)
Logistics data
Master (outer) case width	26.2" (665 mm)
Master (outer) case length	32.7" (830.1 mm)
Master (outer) case height	5.12" (130 mm)
Master (outer) case gross weight	39.7 lbs (18 kg)
Products per master (outer) case	1 pc(s)
