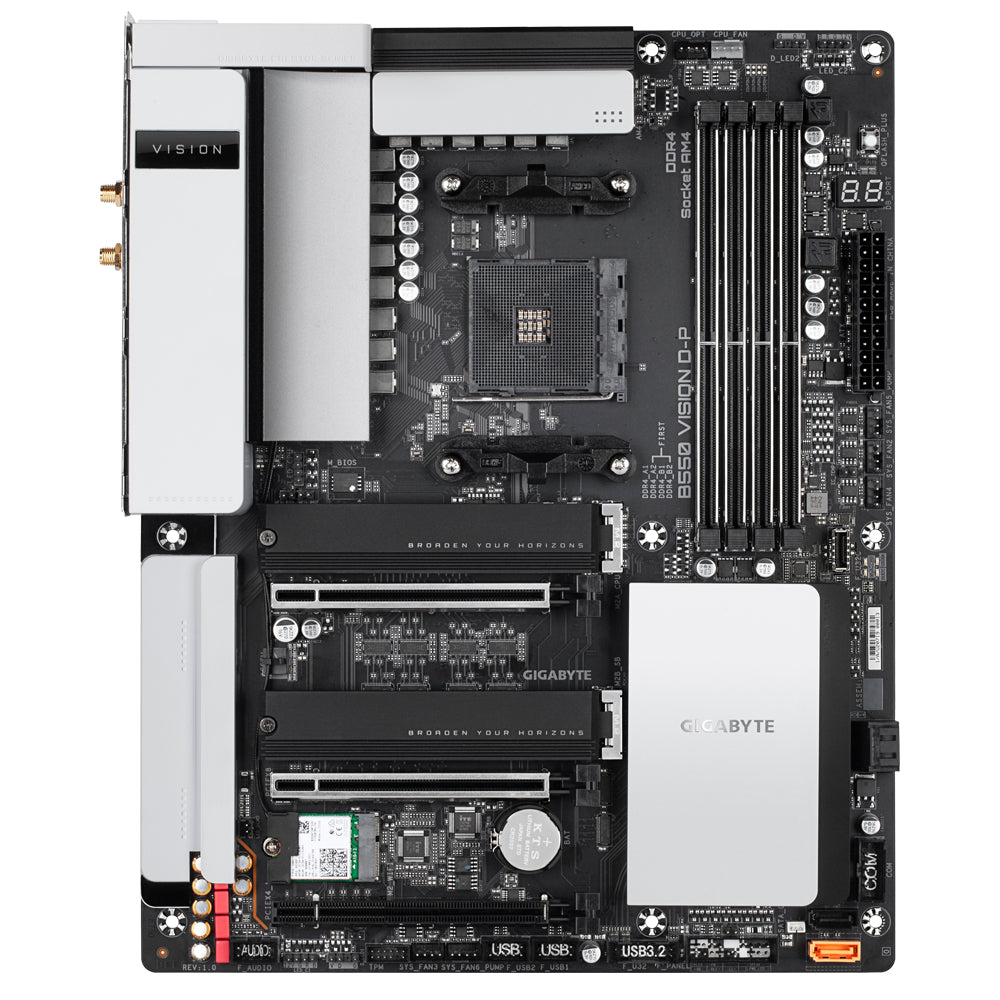

B550 VISION D-P - Gigabyte AMD B550 MOTHERBOARD GIGABYTE

VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine. ECC Memory To protect against data corruption Error Correction Code (ECC) memory corrects errors in your data as it passes in and out of memory to ensure reliability for critical applications. Multi-Card Support Make Your Expandability Flexible Multi-graphics configurations offer better graphics performance for applications which demand the highest frame rates without compromising on resolution. NVIDIA® QUADRO® Professional Graphics Supports NVIDIA® QUADRO® 3D Workstation Professional Graphics Solutions are designed and built specifically for artists, designers, and engineers, NVIDIA Quadro GPUs power more than 100 professional applications across a broad range of industries. Professionals trust them to enable their best work using applications such as Adobe® Creative Cloud, Avid Media Composer, Autodesk Suites, Dassault Systemes, CATIA and SOLIDWORKS, Siemens NX, PTC Creo, and many more. Thunderbolt™ 3 More Speed. More Pixels. More Possibilities. Thunderbolt™ 3 is the single most advanced port available. It uses USB Type-C™ connectors and cables but as a single cable solution, creating one compact port that delivers the fastest connection to any dock display or data device. The only cable you need brings the limitless connectivity with you. Daisy-chain Multiple Devices GIGABYTE Thunderbolt™ motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 40Gbps data pipeline that includes both PCIe and DisplayPort traffic. It redefines desktop PC connectivity to make it far easier to connect multiple high-speed storage devices and HD displays to your PC than ever before. High-Bandwidth and Low-Latency Access-Layer Dual 2.5GbE Connectivity With both LAN ports designed, you'll benefit from increased bandwidth for speed, automated load balancing for smoother data flow, and instant failover if anything goes wrong. Adoption of dual 2.5G Ethernet provides an immediate boost to overall network performance, and greatly improves the bandwidth required at large file transfers, video editing, and professional workloads. Intel® Wi Fi 6 (Gig+) Make latency a thing of the past Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, and speeds up to 2.4Gbps. Wi-Fi 6 is designed to improve speed, increase efficiency, and reduce congestion in heavy bandwidth usage scenarios. SuperSpeed USB 3.2 No Hassle Connection The back panel of B550 VISION D-P features with USB 3.2 Gen2 ports design, which is twice the bandwidth compared to its previous. Be enjoying ultimate connection flexibility and brilliant transfer speeds of up to 10Gbps. Front-panel header with USB 3.2 Gen1 connectivity is ready for compatible devices. Cooling Technology Effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, and unexpected shutdown. Unconventional Heatsinks is designed for better thermal dissipation but also aesthetically appealing to creators. Iconic curved heatsink covers the hottest VRM area to ensure efficient power delivery for stable performance. Creators transfer larger file with un-throttled storage performance by efficient M.2 heatsinks. Smart Fan 5 Eight hybrid fan headers and numerous temperature sensors are planted on the motherboard to monitor in real time and configure fan mode to fit different workloads via Smart Fan 5. Creators are allowed to set the trigger point to activate the fan and its corresponding speed. The fan completely stops when performing light tasks to avoid noise. PCI Express 4.0 Hardware Design For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard uses the groundbreaking PCIe 4.0 hardware design. From PCB, several new IC to device connectors, everything that the PCIe 4.0 signal goes is a completely new generation, to make sure your content creation PC is future proof. PCIe Bandwidth Up to 31.5GB/s from new PCIe 4.0 x16 slot designs for the next generation add on cards need tremendous bandwidth, including the graphics card, deep learning accelerator card, and the video capture card. SSD read speed Content creators workflows constantly involve huge files, such as images, videos, and 3D models. Time for editing, saving, and transferring those huge files can be substantially reduced with the new generation PCIe 4.0 SSD. PCIe M.2 Faster Speed. More Space. M.2 Drives keep the load times away. Breaking the barriers of SATA limitations. M.2 PCIe SSD gives you X7 faster data transferring experience compared to 2.5" SATA solid state drives. Dual NVMe PCIe x4 M.2 M.2, the latest storage technology. GIGABYTE M.2 solution offers considerably faster storage performance and provides an ideal storage with RAID modes. To feature PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors for offering the best compatibility in terms of NVMe storage for creators who demand high capacity and seek the best performance. M.2 Ultra Cool With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. This unique M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue. DTS:X® Ultra Immersive sounds to go DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.



Specification:



Internal I/O
Number of M.2 (M) slots	2
12V power connector	Yes
Supported storage drive interfaces	SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
TPM connector	Yes
Number of SATA III connectors	6
Number of chassis fan connectors	6
Front panel audio connector	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Parallel processing technology support	2-Way CrossFireX
Motherboard form factor	ATX
Component for	PC
Number of mounting holes	9
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
RAID levels	0, 1, 10
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Processor
Processor manufacturer	AMD
Compatible processor series	3rd Generation AMD Ryzenâ„¢ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzenâ„¢ 7, 3rd Generation AMD Ryzenâ„¢ 9
Maximum number of SMP processors	1
Processor socket	Socket AM4
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4800 MHz
Maximum internal memory	128 GB
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
RAID levels	0, 1, 10
Graphics
Maximum graphics card memory	16000 MB
Parallel processing technology support	2-Way CrossFireX
Maximum resolution	4096 x 2160 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 2.0 ports quantity	4
PS/2 ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Realtek 8111H
Ethernet interface type	Gigabit Ethernet
Features
Number of mounting holes	9
Motherboard chipset family	AMD
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	ATX
Component for	PC
Audio chip	Realtek ALC892
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
Clear CMOS jumper	Yes
Video
Maximum graphics card memory	16000 MB
Maximum resolution	4096 x 2160 pixels
Software
Drivers included	Yes
Weight & dimensions
Height	2.56" (65 mm)
Weight	2.2 lbs (1 kg)
Width	12" (305 mm)
Depth	9.61" (244 mm)
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	2.56" (65 mm)
Weight	2.2 lbs (1 kg)
