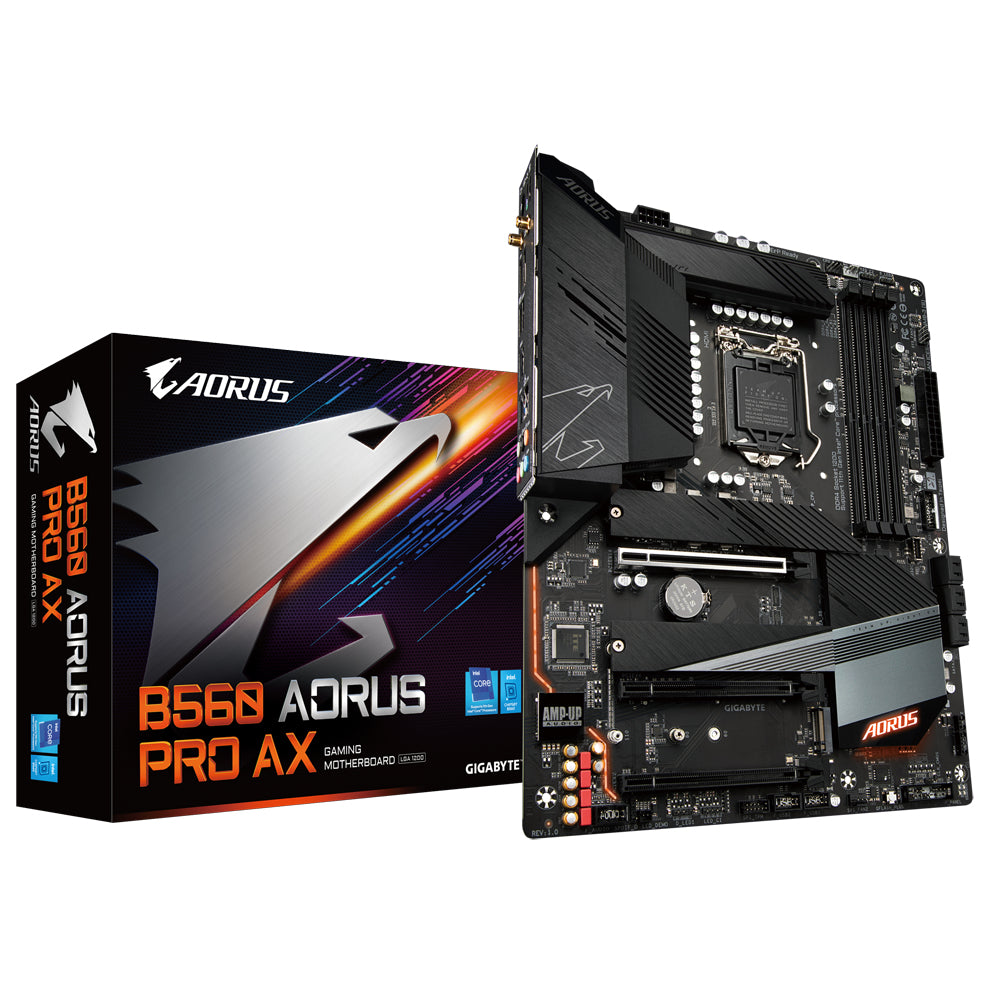

B560 AORUS PRO AX - Gigabyte INTEL B560 MOTHERBOARD AORUS

The B560 AORUS PRO AX comes with upgraded power solution, incredible cooling design, all PCIe 4.0 design and outstanding connectivity to elevate your gaming experience to the next level. DIRECT POWER DESIGN B560 AORUS motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 11th Gen CPU. ADVANCED THERMAL SOLUTION B560 AORUS uses high performance Fully Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers. PERFORMANCE With the best quality components and GIGABYTE R&D design capability, the B560 AORUS is a true beast among motherboards. NEXT GENERATION CONNECTIVITY A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. B560 AORUS PRO AX provides all next generation network, storage, and WIFI connectivity to keep you up to speed. Hi-Res Audio Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times. Realtek High-End HD Audio Codec Supports audio format up to 24-bit/384KHz and output SNR up to Rear/Front 120dB 110dB. Automatically detects impedance of audio device, preventing low volume and distortion. Stream voice with up to 110dB(A) SNR via microphone. DEFINITIVE AESTHETICS B560 AORUS PRO AX features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB / Addressable RGB LEDs to make their PC more unique and stylish. ULTRA DURABLE GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B560 AORUS motherboard and reinforce every slot to make each of them solid and durable. GIGABYTE BIOS & APP CENTER Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard. New User Interface All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan. My Favorites Add constantly used items into the favorite menu for quick access. Storage Information Show all kinds of storage information including SATA, PCIE and M.2 interface. Changelog List all changes before saving and exiting bios. Quickly review overall settings modification. Intuitive Load Line Curve Clearly show each loadline calibration setting in an intuitive curve graph.



Specification:



Internal I/O
Number of M.2 (M) slots	2
Thunderbolt headers	2
Front panel connector	Yes
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Serial port headers	1
Number of SATA III connectors	6
Number of chassis fan connectors	3
Front panel audio connector	Yes
EPS power connector (8-pin)	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
RGB LED pin header	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel B560 Express
Supported processor sockets	LGA 1200 (Socket H5)
Serial port headers	1
PC health monitoring	Fan, Temperature, Voltage
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
HDMI version	1.4
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	HDD & SSD
Motherboard chipset family	Intel
Motherboard chipset	Intel B560 Express
Windows operating systems supported	Windows 10 x64
Supported processor sockets	LGA 1200 (Socket H5)
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Supported processor sockets	LGA 1200 (Socket H5)
Processor socket	LGA 1200
Memory
Number of memory slots	4
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory	128 GB
Unbuffered memory	Yes
Storage controllers
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	8
Graphics
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.2
USB connector type	USB Type-A, USB Type-C
USB 2.0 ports quantity	6
WiFi-AP antenna jack	2
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	6
HDMI version	1.4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.1
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel B560 Express
Windows operating systems supported	Windows 10 x64
Supported processor sockets	LGA 1200 (Socket H5)
PC health monitoring	Fan, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	2
PCI Express x16 slots	2
PCI Express x1 slots	1
BIOS
BIOS type	UEFI AMI
Clear CMOS jumper	Yes
BIOS memory size	256 Mbit
ACPI version	5.0
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Video
Maximum resolution	4096 x 2304 pixels
HDCP	Yes
Software
Windows operating systems supported	Windows 10 x64
Bundled software	Norton Internet Security, cFosSpeed
Weight & dimensions
Width	9.61" (244 mm)
Depth	9.61" (244 mm)
Packaging content
Bundled software	Norton Internet Security, cFosSpeed
