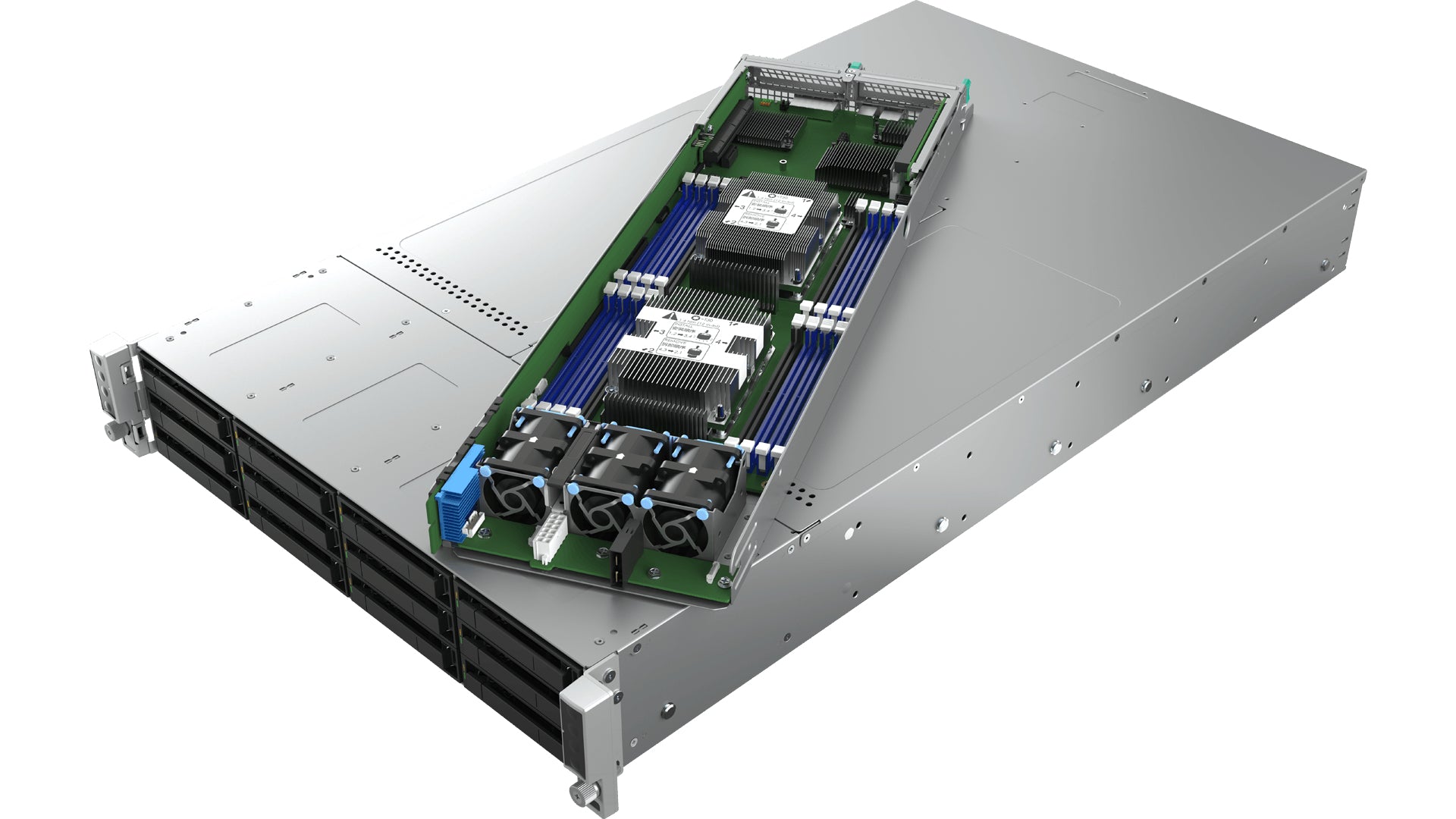

BBS2600BPBR - Intel OEM 10PK SVR BOARD S2600BPBR

Intel ® Server Board S2600BPBR. Processor manufacturer: Intel, Processor socket: Socket P, Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2800 GB, Memory channels: Dodeca-channel. Supported storage drive interfaces: M.2, PCI Express, SATA III. Ethernet interface type: 10 Gigabit Ethernet. Component for: Server, Motherboard chipset family: Intel, Motherboard chipset: Intel® C621



Specification:



Technical details
Discrete graphics card model	Supported
Motherboard chipset family	Intel
Motherboard chipset	Intel C622
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Parallel processing technology support	Not supported
On-board graphics card	No
Number of DIMM slots	16
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
CPU configuration (max)	2
Component for	Server
Graphics output	VGA
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	2
Thermal Design Power (TDP)	165 W
Product type	Server/Workstation Board
Maximum number of PCI Express lanes	80
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
ECC supported by processor	Yes
Total number of SATA connectors	4
Status	Launched
Launch date	Q2'19
Supported RAID configuration	RAID Levels 0/1/10/5/50 (LSI)
Expected discontinuance date	2023
Form factor	Custom 6.8" x 19.1"
Last order date	2019-08-03 05:00:37
Additional information URL	https://www.intel.com/content/www/us/en/products/servers/server-boards/server-board-s2600bp.html
Riser slot 1 number of lanes	16
Riser slot 2 number of lanes	24
Riser slot 3 number of lanes	24
Riser slot 4 number of lanes	16
Performance
Motherboard chipset family	Intel
Motherboard chipset	Intel C622
RAID levels	0, 1, 5, 10, 50
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Component for	Server
Processor
Processor manufacturer	Intel
Thermal Design Power (TDP)	165 W
Maximum number of PCI Express lanes	80
ECC supported by processor	Yes
Compatible processor series	Intel® Xeon®
Maximum number of SMP processors	2
Processor socket	Socket P
Product series	Intel® Server Board S2600BP Family
Product codename	Buchanan Pass
Number of QPI links	2
Memory
Number of memory slots	16
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dodeca-channel
Memory voltage	1.2 V
ECC	Yes
Supported memory clock speeds	2133,2400,2666,2933 MHz
Maximum internal memory	2800 GB
Supported memory clock speed (max)	2933 MHz
Storage controllers
Supported storage drive interfaces	PCI Express 3.0, SATA
RAID levels	0, 1, 5, 10, 50
RAID support	Yes
Graphics
Parallel processing technology support	Not supported
On-board graphics card	No
Discrete graphics support	Yes
Internal I/O
Total number of SATA connectors	4
Supported storage drive interfaces	PCI Express 3.0, SATA
Number of SATA connectors	4
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
VGA (D-Sub) ports quantity	1
Serial ports quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	10 Gigabit Ethernet
Features
Motherboard chipset family	Intel
Motherboard chipset	Intel C622
Compatible operating systems	Windows Server 2016*|Ubuntu*
Component for	Server
Harmonized System (HS) code	8473301180
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
Rack-Friendly board	Yes
Embedded USB (eUSB) SSD option	No
Expansion slots
PCI Express slots version	3.0
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Optane™ Memory Ready	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Intel Trusted Execution Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Optane™ DC Persistent Memory Supported	Yes
Intel Remote Management Module Support	Yes
Integrated BMC with IPMI	Yes
Integrated systems available	No
Intel® Optane™ DC Persistent Memory technology	Yes
Video
Discrete graphics support	Yes
Design
Product series	Intel® Server Board S2600BP Family
Product codename	Buchanan Pass
Other features
Thermal Design Power (TDP)	165 W
Discrete graphics card model	Supported
Number of DIMM slots	16
Embedded options available	No
CPU configuration (max)	2
Compatible operating systems	Windows Server 2016*|Ubuntu*
Graphics output	VGA
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C
PCI Express CEM revision	3.0
Chassis type	Rack
