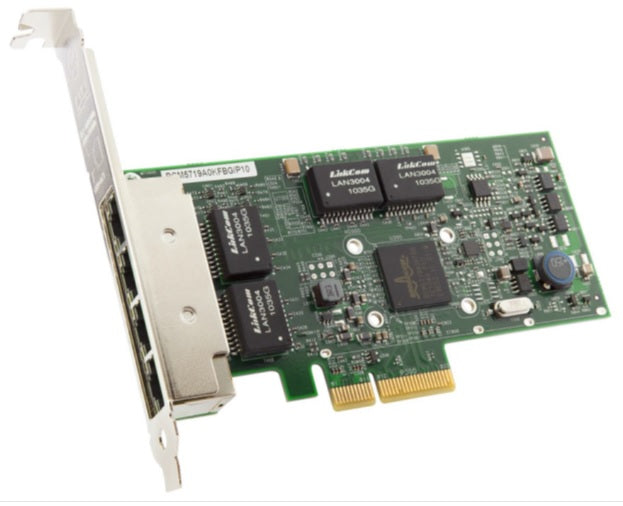

BCM95719A1904AC - Broadcom NIC BROADCOM 5719-4P

Designed for today's enterprise and data center environments, Broadcom's NetXtreme 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare NetQueue and Microsoft VMQ technologies.The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
