Description

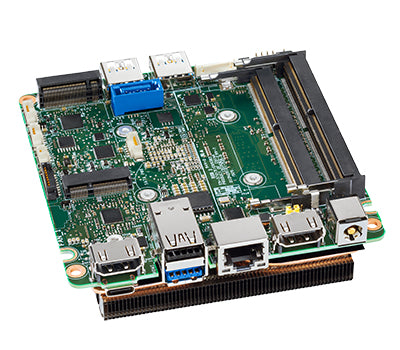

Intel BKNUC8V5PNB. Processor manufacturer: Intel, Lithography: 14 nm, Processor model: i5-8365U. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: SO-DIMM. Supported storage drive interfaces: M.2,SATA, Supported storage drive types: HDD & SSD, SSD form factor: M.2. Graphics card family: Intel, Graphics card: UHD Graphics 620. HDMI version: 2.0a
Â
Specification:
Â
| Motherboard | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1528 |
| Number of processors supported | 1 |
| Processor | |
| Thermal Design Power (TDP) | 15 W |
| Built-in processor | Yes |
| Processor model | i5-8365U |
| Processor boost frequency | 4.1 GHz |
| Processor threads | 8 |
| Processor frequency | 1.6 GHz |
| Processor socket | BGA 1528 |
| Processor lithography | 14 nm |
| Processor cores | 4 |
| Processor family | Intel® Core™ i5 |
| Number of processors supported | 1 |
| Processor manufacturer | Intel |
| Processor codename | Whiskey Lake |
| ECC supported by processor | No |
| CPU configuration (max) | 1 |
| Processor cache | 6 MB |
| Processor generation | 8th gen Intel® Core™ i5 |
| Memory | |
| Memory voltage | 1.2 V |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| ECC | No |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 2400 MHz |
| Maximum internal memory | 64 GB |
| Non-ECC | Yes |
| Number of DIMM slots | 2 |
| Video | |
| On-board graphics card | No |
| Graphics card family | Intel |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Storage drive interface | M.2 |
| Number of storage drives supported | 1 |
| SSD form factor | M.2 |
| Graphics | |
| Number of displays supported | 3 |
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Audio | |
| Audio output channels | 7.1 channels |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel® I219-LM |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Ports & interfaces | |
| Serial port via internal header | Yes |
| DC-in jack | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| HDMI version | 2.0a |
| DisplayPorts quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| M.2 card slot (wireless) | 2230 (E-key) |
| USB ports quantity | 4 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2280 (M-key) |
| Graphics output | Dual HDMI 2.0a, DP 1.2 via Type C, 4-lane eDP 1.4 |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express x1 slots | 1 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Design | |
| Motherboard form factor | UCFF |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| ARK ID | 199078 |
| Safety | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | UCFF |
| Certification | - FCC Par t 15B/15C/15E - CISPR/EN 55032/55024 - ICES-003 - VCCI 32 - BSMI CNS 13438 - KN 32/35 - AS/NZS CISPR 32 - EN 300 328 - EN 301 893 - EN 300 440 - EN 301 489-1/3/17 - EN 62311 - AS/NZS 4268 - AS/NZS 2772.2 - ARPANSA - EU RoHS - China RoHS - Taiwan BSMI RoHS - REACH |
| Status | Launched |
| Performance | |
| Motherboard form factor | UCFF |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64, Windows 10 IoT Enterprise |
| Linux operating systems supported | RedHat EL Linux, Ubuntu 18.04 LTS |
| BIOS type | EEPROM |
| Number of displays supported | 3 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | BGA 1528 |
| Operating system installed | No |
| Number of processors supported | 1 |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Audio output channels | 7.1 channels |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 84713000 |
| Export Control Classification Number (ECCN) | 5A992C |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Windows 10, 64-bit*|Windows 10 IoT Enterprise*|Linux* |
| Processor special features | |
| Intel TSX-NI | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Embedded options available | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Colour | |
| Product colour | Black |
| Power | |
| DC input voltage | 12 - 24 V |
| AC adapter output voltage | 19 V |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| Technical details | |
| BIOS type | EEPROM |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor cores | 4 |
| Cooling type | Passive |
| Chassis type | UCFF |
| ARK ID | 199078 |
| Packaging data | |
| Power cord included | No |
| AC adapter included | Yes |
| Features | |
| Number of displays supported | 3 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 40 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Certificates | |
| Safety | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 |
| Certification | - FCC Par t 15B/15C/15E - CISPR/EN 55032/55024 - ICES-003 - VCCI 32 - BSMI CNS 13438 - KN 32/35 - AS/NZS CISPR 32 - EN 300 328 - EN 301 893 - EN 300 440 - EN 301 489-1/3/17 - EN 62311 - AS/NZS 4268 - AS/NZS 2772.2 - ARPANSA - EU RoHS - China RoHS - Taiwan BSMI RoHS - REACH |
| Weight & dimensions | |
| Width | 4.61" (117 mm) |
| Depth | 4.41" (112 mm) |
| Height | 1.46" (37 mm) |
| Packaging content | |
| Power cord included | No |
| AC adapter included | Yes |
| Processor included | Intel® Core™ i5-8365U Processor (6M Cache, up to 4.10 GHz) |
| Other features | |
| DC input voltage | 12 - 24 V |
| Embedded options available | No |
| Chassis type | UCFF |
| Processor ARK ID | 193555 |
| Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Launch date | Q1'20 |
