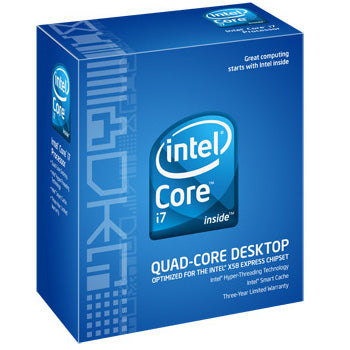

BX80601920 - Intel CORE I7-920 2.67 GHZ

Intel Core i7-920. Processor family: Intel Core i7, Processor socket: LGA 1366 (Socket B), Processor lithography: 45 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 24 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Desktop, Number of Processing Die Transistors: 731 M, Processing Die size: 263 mm². Package type: Retail box. Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor generation	Intel® Core™ i7
Processor base frequency	2.8 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Bloomfield
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	130 W
Processor cache	8 MB
Processor ARK ID	41447
Processor model	i7-930
Processor threads	8
System bus rate	4.8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.8 - 1.375 V
Processor boost frequency	3.06 GHz
Number of QPI links	1
CPU multiplier (bus/core ratio)	21
Bus type	QPI
Component for	PC
Processor lithography	45 nm
Processor family	Intel Core i7
Processor cores	4
Box	Yes
Processor socket	LGA 1366 (Socket B)
Processor series	Intel Core i7-900 Desktop Series
Processor cache type	Smart Cache
Generation	9th Generation
Memory
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	No
Graphics
On-board graphics adapter	No
Power
Thermal Design Power (TDP)	130 W
VID Voltage Range	0.8 - 1.375 V
Technical details
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Supported instruction sets	SSE4.2
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Processor cache	8192 KB
Intel 64	Yes
Thermal Design Power (TDP)	130 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Processor series	Intel Core i7-900 Desktop Series
Physical Address Extension (PAE)	36 bit
Market segment	Desktop
Launch date	Q1'10
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	4.8
Maximum memory	24 GB
Processor brand name	Intel Core i7
Last change	63903513
Product family	Previous Generation Intel Core i7 Processor
Bus speed	4.8 GT/s
Features
Thermal Design Power (TDP)	130 W
Processor package size	42.5mm x 45mm
Processor ARK ID	41447
Thermal Monitoring Technologies	No
Idle States	Yes
Execute Disable Bit	Yes
Number of Processing Die Transistors	731 M
Processing Die size	263 mm²
Supported instruction sets	SSE4.2
Embedded options available	No
CPU configuration (max)	1
Physical Address Extension (PAE)	36 bit
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991.A.1
Commodity Classification Automated Tracking System (CCATS)	NA
Processor special features
Intel 64	Yes
Conflict-Free processor	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	67.9 °C
Maximum operating temperature	67.9 °C
Packaging data
Package type	Retail box
Weight & dimensions
Processor package size	42.5mm x 45mm
Other features
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	24 GB
Maximum internal memory	24576 MB
CPU configuration (max)	1
