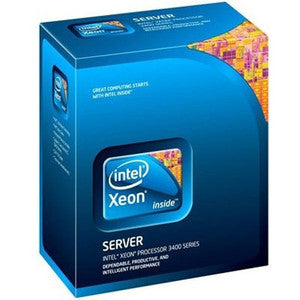

Intel Xeon L3406. Processor family: Intel® Xeon®, Processor socket: LGA 1156 (Socket H), Processor lithography: 32 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 16 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 2x8, Number of Processing Die Transistors: 382 M. Package width: 3.19" (81 mm), Package depth: 4.49" (114 mm), Package height: 4.02" (102 mm). Processor package size: 37.5 x 37.5 mm
Â
Specification:
Â
| Processor | |
|---|---|
| Processor generation | 3rd gen Intel® Core™ i7 |
| Processor base frequency | 3.6 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Sandy Bridge E |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Thermal Design Power (TDP) | 130 W |
| Processor cache | 10 MB |
| Processor ARK ID | 63698 |
| Processor model | i7-3820 |
| Processor threads | 8 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Compatible chipsets | Intel® X79 Express |
| VID Voltage Range | 0.6 - 1.35 V |
| Processor boost frequency | 3.8 GHz |
| Stepping | M1 |
| L3 cache speed | 3.6 GHz |
| FSB Parity | No |
| CPU multiplier (bus/core ratio) | 44 |
| Bus type | DMI |
| Component for | PC |
| Processor lithography | 32 nm |
| Processor family | Intel® Core™ i7 X-series |
| Processor front side bus | 1600 MHz |
| Processor cores | 4 |
| Box | Yes |
| Processor socket | LGA 2011 (Socket R) |
| Processor code | SR0LD |
| Processor series | Intel Core i7-3800 Desktop Series |
| Processor cache type | Smart Cache |
| Generation | 3rd Generation |
| Memory | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| Supported memory types | DDR3-SDRAM |
| Memory channels | Quad-channel |
| ECC | No |
| Power | |
| Thermal Design Power (TDP) | 130 W |
| VID Voltage Range | 0.6 - 1.35 V |
| Technical details | |
| Cache memory | 10 MB |
| Intel Rapid Storage Technology | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Smart Response Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Dual Display Capable Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| PCI Express slots version | 2.0 |
| Supported instruction sets | SSE4.2, AVX |
| L3 cache speed | 3.6 GHz |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR0LD |
| Product type | Processor |
| Processor cache | 10240 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 130 W |
| Supported memory types | DDR3-SDRAM |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Status | Discontinued |
| Product name | Intel Core i7-3820 (10M Cache, up to 3.80 GHz) |
| Processor series | Intel Core i7-3800 Desktop Series |
| Processor core voltage | 0.600 – 1.350 |
| Market segment | Desktop |
| Launch date | Q1'12 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Smart Response Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 5 |
| Born on date | Q1'12 |
| Maximum memory | 64.23 GB |
| Processor brand name | Intel Core i7 X-series Intel Core i7 X-series processor |
| Last change | 63903513 |
| Product family | Intel High End Desktop Processors |
| Bus speed | 5 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 40 |
| Thermal Design Power (TDP) | 130 W |
| Processor package size | 52.5mm x 45mm |
| Processor ARK ID | 63698 |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 2.0 |
| Supported instruction sets | SSE4.2, AVX |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR0LD |
| Market segment | Desktop |
| Images Type Map |  |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 2.0 |
| Processor special features | |
| Intel Clear Video Technology | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Conflict-Free processor | No |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Trusted Execution Technology | No |
| Intel® Smart Response Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Dual Display Capable Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Smart Response Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Turbo Boost Technology 2.0 frequency | 3.8 GHz |
| Operational conditions | |
| Tcase | 66.8 °C |
| Packaging data | |
| Package width | 1.73" (44 mm) |
| Package depth | 5.51" (140 mm) |
| Package height | 4.61" (117 mm) |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 52.5mm x 45mm |
| Package width | 1.73" (44 mm) |
| Package depth | 5.51" (140 mm) |
| Package height | 4.61" (117 mm) |
| Other features | |
| Cache memory | 10 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Maximum internal memory | 64.23 GB |
| Maximum internal memory | 65768 MB |
| CPU configuration (max) | 1 |
| Processor code | SR0LD |
