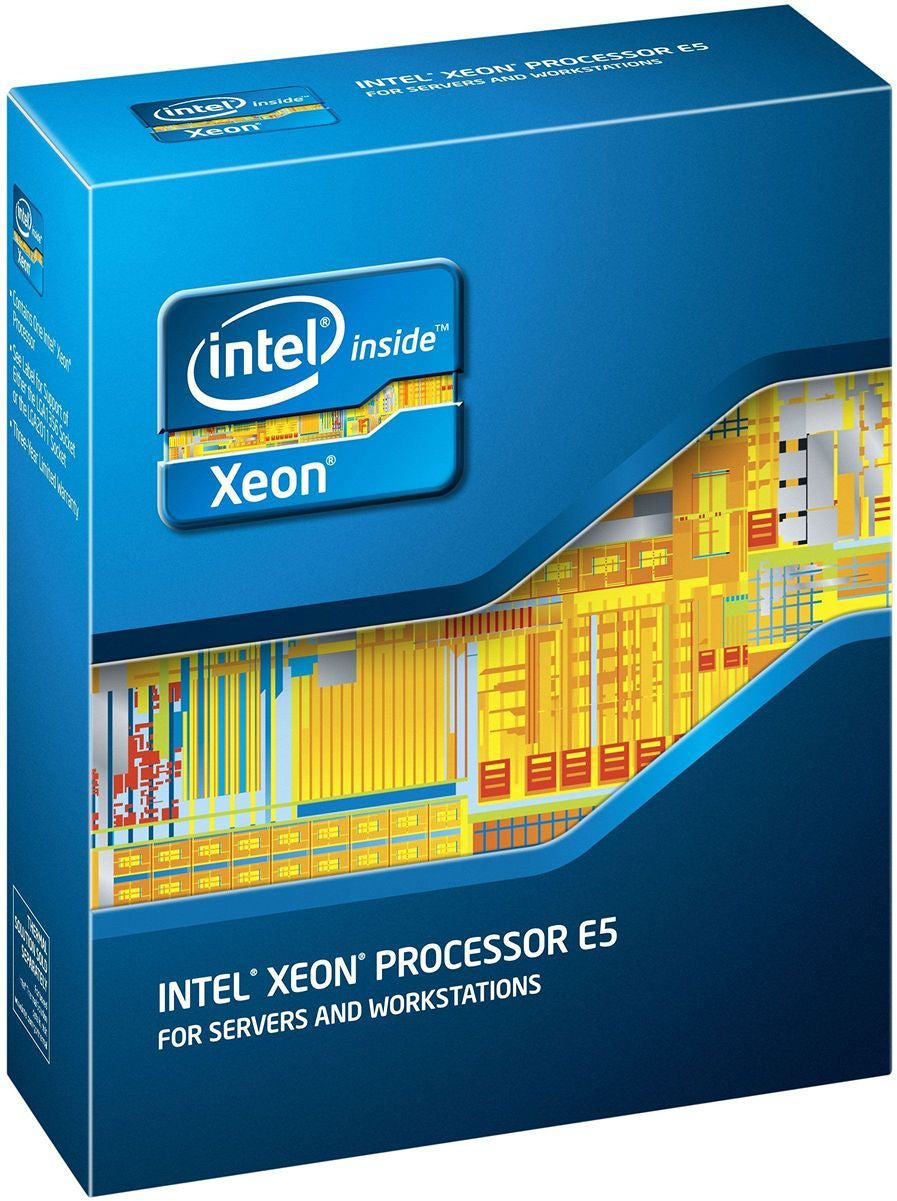

BX80621E52670 - Intel E5-2670 2.60G 8C 115 PROC

Intel Xeon E5-2670. Processor family: Intel® Xeon® E5 Family, Processor socket: LGA 2011 (Socket R), Processor lithography: 32 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 750 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, Supported instruction sets: AVX, Scalability: 2S. Intel® Turbo Boost Technology 2.0 frequency: 3.3 GHz. Package width: 1.73" (44 mm), Package depth: 5.51" (140 mm), Package height: 4.61" (117 mm)



Specification:



Processor
Processor base frequency	2.7 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Sandy Bridge EP
Memory bandwidth supported by processor (max)	51.2 GB/s
Thermal Design Power (TDP)	130 W
Processor cache	20 MB
Processor ARK ID	64583
Processor model	E5-2680
Processor threads	16
System bus rate	8 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.6 - 1.35 V
Processor boost frequency	3.5 GHz
Stepping	C2
Number of QPI links	2
CPU multiplier (bus/core ratio)	35
Bus type	QPI
Component for	Server/workstation
Processor lithography	32 nm
Processor family	Intel® Xeon® E5 Family
Processor cores	8
Box	Yes
Processor socket	LGA 2011 (Socket R)
Processor series	Intel Xeon E5-2600
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	750 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600 MHz
Memory bandwidth supported by processor (max)	51.2 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	130 W
VID Voltage Range	0.6 - 1.35 V
Technical details
Cache memory	20 MB
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
Supported instruction sets	AVX
Scalability	2S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Graphics & IMC lithography	32 nm
Embedded options available	No
CPU configuration (max)	2
Product type	Processor
Processor cache	20480 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	130 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon E5-2680 (20M Cache, 2.70 GHz, 8.00 GT/s Intel QPI)
Processor series	Intel Xeon E5-2600
Processor core voltage	0.60-1.35 V
Market segment	Server
Launch date	Q1'12
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	0.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Born on date	Q1'12
Maximum memory	384 GB
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processor E5 Family
Bus speed	8 GT/s
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	130 W
Processor package size	52.5mm x 45mm
Processor ARK ID	64583
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX
Scalability	2S
Graphics & IMC lithography	32 nm
Embedded options available	No
CPU configuration (max)	2
Market segment	Server
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.5 GHz
Operational conditions
Tcase	85 °C
Packaging data
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	4.41 oz (125 g)
Package type	Retail box
Weight & dimensions
Processor package size	52.5mm x 45mm
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	4.41 oz (125 g)
Other features
Cache memory	20 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	384 GB
Maximum internal memory	393216 MB
CPU configuration (max)	2
