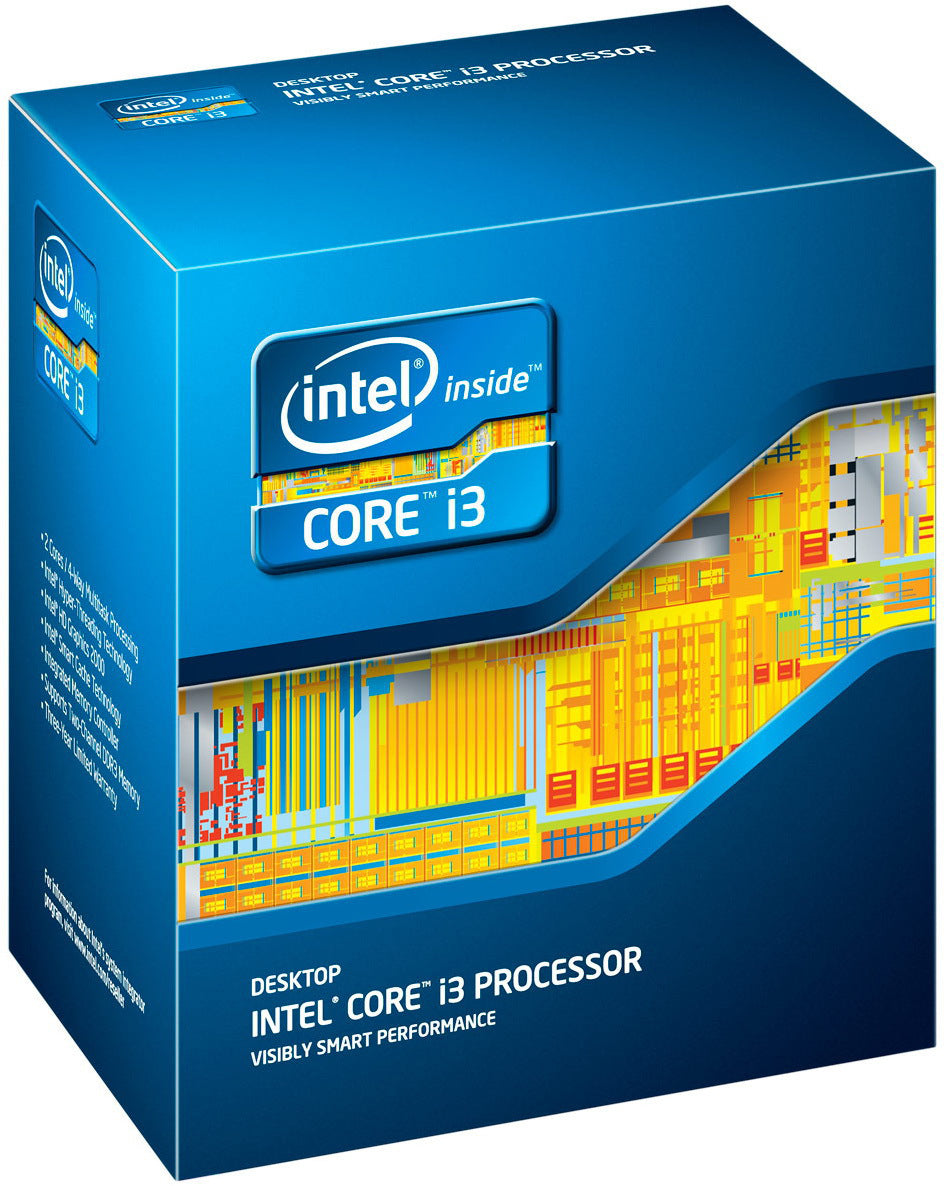

BX80623I32120 - Intel CORE I3 2120 3.30GHZ 2C 4T 3M

Intel Core i3-2120. Processor family: Intel® Core™ i3, Processor socket: LGA 1155 (Socket H2), Processor lithography: 32 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. On-board graphics card model: Intel® HD Graphics 2000, On-board graphics card base frequency: 850 MHz, On-board graphics card dynamic frequency (max): 1100 MHz. Market segment: Desktop, Supported instruction sets: SSE4.1, SSE4.2, AVX, Export Control Classification Number (ECCN): 3A991. Package type: Retail box



Specification:



Processor
Processor generation	2nd gen Intel® Core™ i3
Processor base frequency	3.4 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Sandy Bridge
Memory bandwidth supported by processor (max)	21 GB/s
Thermal Design Power (TDP)	65 W
Processor cache	3 MB
Processor ARK ID	53428
Processor model	i3-2130
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Stepping	Q0
CPU multiplier (bus/core ratio)	34
Bus type	DMI
Component for	PC
Processor lithography	32 nm
Processor family	Intel® Core™ i3
Processor cores	2
Box	Yes
Processor socket	LGA 1155 (Socket H2)
Processor code	SR05W
Processor series	Intel Core i3-2100 Desktop Series
Processor cache type	Smart Cache
Generation	2nd Generation
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
Graphics
On-board graphics card ID	0x102
Number of displays supported (on-board graphics)	2
On-board graphics card model	Intel® HD Graphics 2000
On-board graphics card	Yes
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card base frequency	850 MHz
Power
Thermal Design Power (TDP)	65 W
Technical details
Cache memory	3 MB
Thermal Monitoring Technologies	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Dual Display Capable Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	2.0
Supported instruction sets	SSE4.1, SSE4.2, AVX
On-board memory controller	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Embedded options available	No
CPU configuration (max)	1
Processor code	SR05W
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Thermal Design Power (TDP)	65 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Core i3-2130 (3M Cache, 3.40 GHz)
Processor series	Intel Core i3-2100 Desktop Series
Market segment	Desktop
Launch date	Q3'11
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Graphics max dynamic frequency	1.10 GHz
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q3'11
Maximum memory	32 GB
Processor brand name	Intel Core i3 Intel Core i3 Processor
Last change	63903513
Product family	2nd Generation Intel Core i3 Processors
Processor ID	0x102
Bus speed	5 GT/s
Features
On-board graphics card ID	0x102
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	65 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	53428
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	2.0
Supported instruction sets	SSE4.1, SSE4.2, AVX
Embedded options available	No
CPU configuration (max)	1
Processor code	SR05W
Market segment	Desktop
Images Type Map
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	3A991
Commodity Classification Automated Tracking System (CCATS)	NA
PCI Express CEM revision	2.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	No
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	No
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Dual Display Capable Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Intel® vPro™ Platform Eligibility	No
Operational conditions
Tcase	69.1 °C
Packaging data
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package weight	11.9 oz (338 g)
Package type	Retail box
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Package width	3.19" (81 mm)
Package depth	4.49" (114 mm)
Package height	4.02" (102 mm)
Package weight	11.9 oz (338 g)
Other features
Cache memory	3 MB
On-board memory controller	Yes
Maximum internal memory	32 GB
Maximum internal memory	32768 MB
CPU configuration (max)	1
Processor code	SR05W
