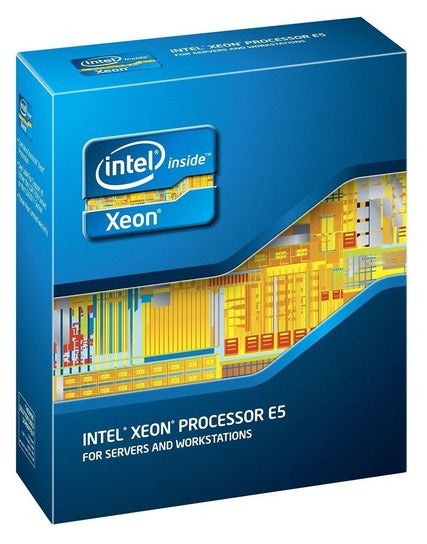

BX80644E52603V3 - Intel E5-2603 V3 1.6G 6C PROCESSOR

Intel Xeon E5-2603V3. Processor family: Intel Xeon E5 v3, Processor socket: LGA 2011-v3, Component for: Server/workstation. Memory channels: Quad-channel, Maximum internal memory supported by processor: 768 GB, Memory types supported by processor: DDR4-SDRAM. PCI Express configurations: x4, x8, x16, Supported instruction sets: AVX 2.0, Bandwidth: 6.4 MB/s. Package width: 1.73" (44 mm), Package depth: 5.51" (140 mm), Package height: 4.61" (117 mm). Processor package size: 52.5mm x 45mm



Specification:



Processor
Processor base frequency	1.9 GHz
Processor manufacturer	Intel
Cooler included	Yes
Processor codename	Haswell
Memory bandwidth supported by processor (max)	51 GB/s
Thermal Design Power (TDP)	85 W
Processor cache	15 MB
Processor ARK ID	81897
Processor model	E5-2609V3
Processor threads	6
System bus rate	6.4 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.65 - 1.3 V
Stepping	M1
Number of QPI links	2
L3 cache speed	1.9 GHz
Bus type	QPI
Component for	Server/workstation
Processor lithography	22 nm
Processor family	Intel Xeon E5 v3
Processor cores	6
Box	Yes
Processor socket	LGA 2011-v3
Processor series	Intel Xeon E5-2600 v3
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	51 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics adapter	No
Power
Thermal Design Power (TDP)	85 W
VID Voltage Range	0.65 - 1.3 V
Technical details
Cache memory	15 MB
Intel TSX-NI	No
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
L3 cache speed	1.9 GHz
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Embedded options available	Yes
CPU configuration (max)	2
Product type	Processor
Processor cache	15360 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	85 W
Supported memory types	DDR4-SDRAM
Status	Discontinued
Product name	Intel Xeon E5-2609 v3 (15M Cache, 1.90 GHz)
Processor series	Intel Xeon E5-2600 v3
Processor core voltage	0.65–1.30
Physical Address Extension (PAE)	46 bit
Market segment	Server
Launch date	Q3'14
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	6.4
Born on date	Q3'14
Maximum memory	768 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Xeon v2
Last change	63903513
Product family	Intel Xeon Processor E5 v3 Family
Bus speed	6.4 GT/s
Features
Maximum number of PCI Express lanes	40
Thermal Design Power (TDP)	85 W
Processor package size	52.5mm x 45mm
Processor ARK ID	81897
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX 2.0
Scalability	2S
Physical Address Extension (PAE)	Yes
Embedded options available	Yes
CPU configuration (max)	2
Physical Address Extension (PAE)	46 bit
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	No
Intel® OS Guard	Yes
Intel TSX-NI	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel Flex Memory Access	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Transactional Synchronization Extensions	No
Operational conditions
Tcase	70.9 °C
Packaging data
Package type	Retail box
Weight & dimensions
Processor package size	52.5mm x 45mm
Other features
Cache memory	15 MB
Intel® Virtualization Technology (Intel® VT)	VT-d,VT-x
Maximum internal memory	768 GB
Maximum internal memory	786432 MB
CPU configuration (max)	2
