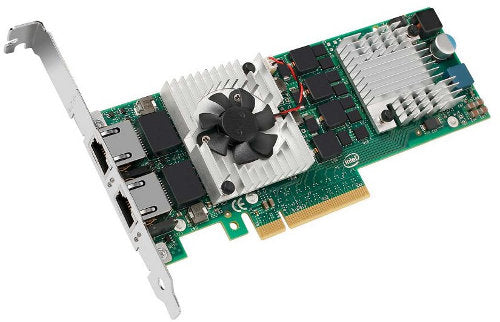

- E10G42BT - Intel X520-T2 ENET CONVERGED ADPT
Description
This 10 Gigabit Intel Ethernet Server Adapter X520-T2 showcases Intel’s third-generation standards-based 10GBASE-T adapter in a low-profile PCI Express form factor. This new dual port adapter provides bandwidth-intensive applications highly affordable 10 Gigabit Ethernet (10GbE) network performance with cost-effective RJ-45 connections for distances up to 100 meters.
Specification:
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Fiber optic connector | SFP+ |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Data transfer rate | 10 Gbit/s |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Data transfer rate | 10 Gbit/s |
| Chipset | Intel® 82599EN |
| Maximum operating distance | 393.7" (10 m) |
| LAN controller | Intel® 82599 |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Interface type | PCIe v2.0 (5.0 GT/s) |
| Compliance industry standards | IEEE 802.3 |
| Plug and Play | Yes |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Message signal interrupt | Yes |
| Low halogen options available | No |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Thermal Design Power (TDP) | 8.6 W |
| Product type | Network Interface Card |
| Number of QPI links | Dual |
| Processor family | 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) |
| Status | Launched |
| Product name | Intel Ethernet Converged Network Adapter X520-DA2 |
| Product brief URL | https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'09 |
| Born on date | Q3'09 |
| Last change | 64826816 |
| Design | |
| Chipset | Intel® 82599EN |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Plug and Play | Yes |
| Internal | Yes |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Product codename | Spring Fountain |
| Indication | |
| Link/Act LED | Yes |
| System requirements | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 5.73" (145.5 mm) |
| Performance | |
| Ethernet adapter ARK ID | 39776 |
| Plug and Play | Yes |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Certificates | |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Other features | |
| Chipset | Intel® 82599EN |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Thermal Design Power (TDP) | 8.6 W |
| Product type | Network Interface Card |
| Number of QPI links | Dual |
| Processor family | 500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE) |
| Ethernet adapter ARK ID | 39776 |
| Interface type | PCIe v2.0 (5.0 GT/s) |
| Data transfer rate | 10 Gbit/s |
| Compliance industry standards | IEEE 802.3 |
| Cable type | SFP+ Direct Attached Twin Axial Cabling up to 10m |
| Speed & slot width | 5.0 GT/s, x8 Lane |
| Ports quantity | 2 |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Message signal interrupt | Yes |
| Low halogen options available | No |
| Link/Act LED | Yes |
| iWARP/RDMA | No |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Fiber Channel over Ethernet | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
| Status | Launched |
| Product name | Intel Ethernet Converged Network Adapter X520-DA2 |
| Product brief URL | https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html |
| Network interface card type | Server |
| Network interface card cable medium | Copper |
| Market segment | Server |
| Launch date | Q3'09 |
| Born on date | Q3'09 |
| Last change | 64826816 |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 500 Series Network Adapters (up to 10GbE) |
| Product codename | Spring Fountain |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G135872 |
| Controller type | Intel® 82599 10 Gigabit Ethernet Controller |
| Cabling type | SFP+ Direct Attached Twin Axial Cabling up to 10m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
Shipping & Return
Shipping Information
-
Delivery Time: 1-2 business days for order handling, with an additional 3-5 business days for transit within the USA.
-
Shipping Cost: We offer USA Flat Rate $10 Shipping with tracking number for Upto 10LBS items.
-
Tracking: You will receive a tracking number via email to monitor your order’s progress.
-
Support: For any shipping queries or issues, contact us at info@aeonfly.com or call +1 (302) 499-4044.
For full shipping details, please visit our complete shipping policy.
Reviews
Related Products
Recently viewed products
Shopping cart
close
-
WHAT ARE YOU LOOKING FOR?Search
- Login / Register
- Home
- Product Categories
- page
- Blog
- Wishlist (0)
- Compare (0)
- Contact Us
