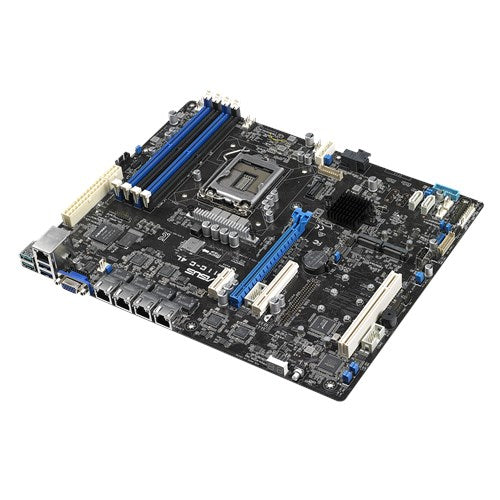

P11C-C/4L - ASUS ATX 12IN X 9.6IN,INTEL C242,INTEL XEON PROCESSOR E-2100 FAMILY,MAXIMUM UP TO 64G

Industry-standard ATX server board with multiple expandability options P11C-C/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe, and one PCI slot for legacy devices. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency. Dual M.2 for up to 32Gbps performance and data redundancy P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. NVMe high-speed storage interface P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption and faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices. High-speed mini-SAS HD connections P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-C/4L, making it a great upgrade option. Quad Intel I210AT Gigabit Ethernet P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network. TPM-M 2.0 ready P11C-C/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity. Comprehensive IT infrastructure management P11C-C/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses. The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. Enhanced serviceability With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance and deployment for diverse applications. P11C-C/4L has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system. Quick initialization guidance P11C-C/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting. ASUS ProCool connector ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.



Specification:



Internal I/O
Number of M.2 (M) slots	1
Front panel connector	Yes
Supported storage drive interfaces	M.2, SATA II
USB 2.0 connectors	1
TPM connector	Yes
Peripheral (Molex) power connectors (4-pin)	3
Number of SATA III connectors	6
Number of chassis fan connectors	3
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Number of displays supported	1
Motherboard chipset family	Intel
PC health monitoring	CPU, Fan, Temperature
Cooling type	Active
Motherboard form factor	mini ITX
Component for	PC
Number of mounting holes	4
Performance
Number of HDDs supported	6
HDD size	2.5/3.5"
Supported storage drive types	HDD & SSD
SAS controller	Yes
Motherboard chipset family	Intel
Windows operating systems supported	Yes
PC health monitoring	CPU, Fan, Temperature
Linux operating systems supported	Yes
Cooling type	Active
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
Maximum number of SMP processors	1
Processor socket	LGA 1151 (Socket H4)
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	Yes
Non-ECC	Yes
Supported memory clock speeds	2400,2666 MHz
Supported UDIMM clock speeds	2400,2666 MHz
Supported memory module capacities	4GB, 8GB, 16GB
Supported UDIMM module capacity	4GB, 8GB, 16GB
Maximum internal memory	32 GB
Maximum UDIMM memory	32 GB
Storage controllers
Number of HDDs supported	6
HDD size	2.5/3.5"
Supported storage drive types	HDD & SSD
SAS controller	Yes
Supported storage drive interfaces	M.2, SATA II
Graphics
Number of displays supported	1
Maximum graphics card memory	32 MB
Graphics card family	ASPEED
Graphics card	AST2500
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB connector type	USB Type-A
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	3
Network
Ethernet LAN	Yes
LAN controller	Intel® I210-AT
Ethernet interface type	Gigabit Ethernet
Features
Power source type	ATX
Number of mounting holes	4
Motherboard chipset family	Intel
Windows operating systems supported	Yes
PC health monitoring	CPU, Fan, Temperature
Linux operating systems supported	Yes
Cooling type	Active
Motherboard form factor	mini ITX
Component for	PC
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 3.x) slots	1
Power
Power source type	ATX
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90%
Video
Maximum graphics card memory	32 MB
Graphics card family	ASPEED
Graphics card	AST2500
Packaging data
Package weight	18.3 oz (520 g)
Software
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Drivers included	Yes
Weight & dimensions
Package weight	18.3 oz (520 g)
Width	6.69" (170 mm)
Depth	6.69" (170 mm)
Packaging content
Utilities included	Yes
Drivers included	Yes
Cables included	SATA
Other features
HDD size	2.5/3.5"
Utilities included	Yes
Package weight	18.3 oz (520 g)
Supported UDIMM clock speeds	2400,2666 MHz
Supported UDIMM module capacity	4GB, 8GB, 16GB
Maximum UDIMM memory	32 GB
