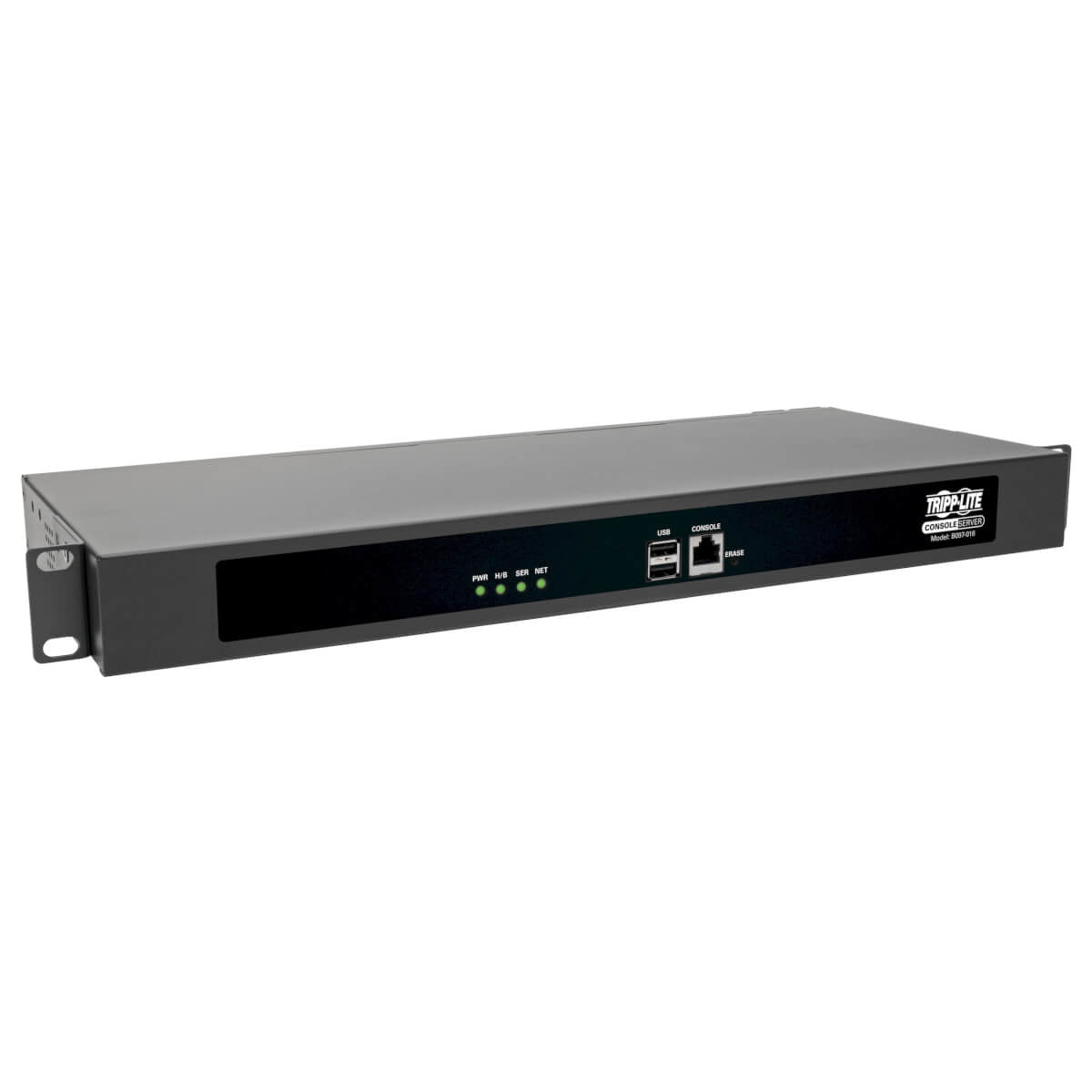

B097-016 - Tripp Lite 16-PORT SERIAL CONSOLE SERVER, USB PORTS (2) - DUAL GBE NIC, 4 GB FLASH, DESKTOP

Access All Your Serial and Network Devices from Anywhere in the World at Any Time This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. Simple and Flexible Accessibility The 16 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 4 Gb of internal NAND flash memory, which can be used for log storage and file storage. Connect an External Modem for Out-of-Band Access Connect one of the 16 RJ45 ports to an external Multitech MT9234MU-CDC-XR or US Robotics USR5637 USB modem (not included) to receive out-of-band (alternate channel) access when remote sites experience a network outage. Router/Gateway Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic. The Utmost in Security to Keep Your Sensitive Data Private The USB console server supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473. PowerMan PDU and UPS Support This 16-port serial console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment. USB Console Two USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite’s wide variety of PDUs and UPS systems with WEBCARDLX or other LX Platform remote management cards. Compact Design for Convenient Mounting The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding. TAA-Compliant for GSA Schedule Purchases The B097-016 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Technical details
Product colour	Black
Package width	10.6" (269.2 mm)
Package length	19.3" (49 cm)
Package height	3.3" (83.8 mm)
Rack mounting	Yes
Package weight	7.89 lbs (3.58 kg)
Package depth	19.2" (487.7 mm)
Master (outer) case GTIN (EAN/UPC)	10037332218039
Ports & interfaces
USB 2.0 ports quantity	2
Serial ports quantity	48
Ethernet LAN (RJ-45) ports	3
Console port	RJ-45
Memory
Flash memory	4000 MB
Weight & dimensions
Dimensions (WxDxH)	6.89 x 17.3 x 1.77" (175 x 440 x 45 mm)
Power
Power source type	AC
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
Logistics data
Country of origin	United States
Master (outer) case width	17.5" (444.5 mm)
Master (outer) case length	19.8" (502.9 mm)
Master (outer) case height	11.9" (302.3 mm)
Master (outer) case gross weight	43.2 lbs (19.6 kg)
Products per master (outer) case	5 pc(s)
