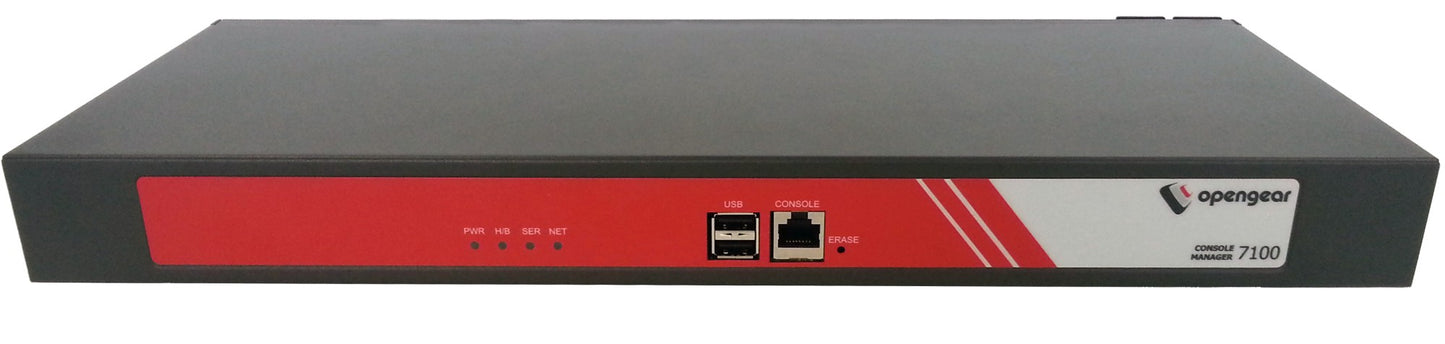

CM7116-2-DAC-UK - OPENGEAR CM7100 - 16 RJ45 SERIAL CISCO PINOUT POR

The Opengear CM7100 is a feature-rich console server that simplifies out-of-band management for your network, server and power infrastructure in data centers and remote sites. Powerful monitoring, diagnostics and remediation features enable efficient recovery from infrastructure fault conditions and maximize uptime. An intuitive dashboard with proactive alerting provides network and IT administrators with real-time status of the core infrastructure.

- 16-96 serial ports, out-of-band management of network and server devices
- Simple straight-through cabling to Cisco®-style serial consoles
- Dual Gigabit Ethernet and dual AC power supplies for built-in redundancy
- Audit trail logging to embedded 4GB local storage or remote log server for troubleshooting and compliance
- Link Layer Discovery Protocol (LLDP) discover, identify and verify attached devices on your local network.
- AAA including Active Directory and TACACS+ integration, lock down access per user and group
- Environmental monitoring with optional EMD5000 module, Nagios and SolarWinds integration
- Unified power management of PDU and UPS equipment from 100+ vendors
- Console management raised to a new level with SmartOOBâ„¢
- Zero-Touch Provisioning (ZTP) automation over the network, without manual user interaction

SmartOOB

Opengear’s solution raises secure remote access and infrastructure management to a new level. SmartOOB extends traditional out-of-band management to monitor and log systems health and environmental conditions, proactively detecting faults before they become failures.

- Securely access your networking devices, servers and power equipment and monitor for console warnings from managed device
- Proactively detects faults before they become failures
- Automated response with customized rules and policies undertaking complex actions depending on what is detected
- Monitors and controls UPSes and power status (disruptions, surges, power cycling)
- Enables monitoring of temperature, humidity, motion, water and door access
- Built-in TFTP server increases efficiency and mitigates the risk of infrastructure failures by enabling remote provisioning, maintenance and recovery
- Bulletproof console management with integrated 16-48 port console server

Advanced Monitoring

Advanced monitoring provides notification of server kernel panics, network console warnings, unplugged cables and environmental alarms.

- Alerts can be automatically escalated for protracted outages, and preset complex remedial actions taken, depending on what is detected
- Embedded storage stores console session logs for audit and troubleshooting
- TFTP server for remote backup and restore of managed device configuration, OS upgrades and recovery

Built-In Redundancy

Opengear devices are built with redundancy for increased network resilience and business continuity.

- Dual AC feed inlets and dual internal power supplies support automatic failover for increased uptime
- Dual USB ports allow attachment of peripherals like additional storage and USB consoles
- Dual Gigabit Ethernet ports facilitate connections to both primary and secondary networks

Strong Security and Authentication

Efficiently and securely manage your network infrastructure with:

- Lock down management interfaces with local and remote AAA including Active Directory, Kerberos, TACACS+ and RADIUS with RSA SecurID
- Encrypt sensitive management traffic with IPsec and OpenVPN
- Comprehensive logging features for compliance and audit trail
- FIPS 140-2 validated encryption for government and military applications
- Single point of authentication and policy enforcement, monitor and log each management keystroke



Specification:



Technical details
Product colour	Black, Red
Rack mounting	Yes
Ports & interfaces
Serial ports quantity	16
Ethernet LAN (RJ-45) ports	2
Console port	RS-232
Processor
Processor family	Marvel
Processor frequency	800 MHz
Memory
RAM type	DDR3
RAM capacity	256 MB
Flash memory	4 MB
Weight & dimensions
Weight	8.82 lbs (4 kg)
Dimensions (WxDxH)	17.3 x 6.89 x 1.77" (440 x 175 x 45 mm)
Power
Power source type	AC
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operational conditions
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 50 °C
Operating relative humidity (H-H)	5 - 90%
