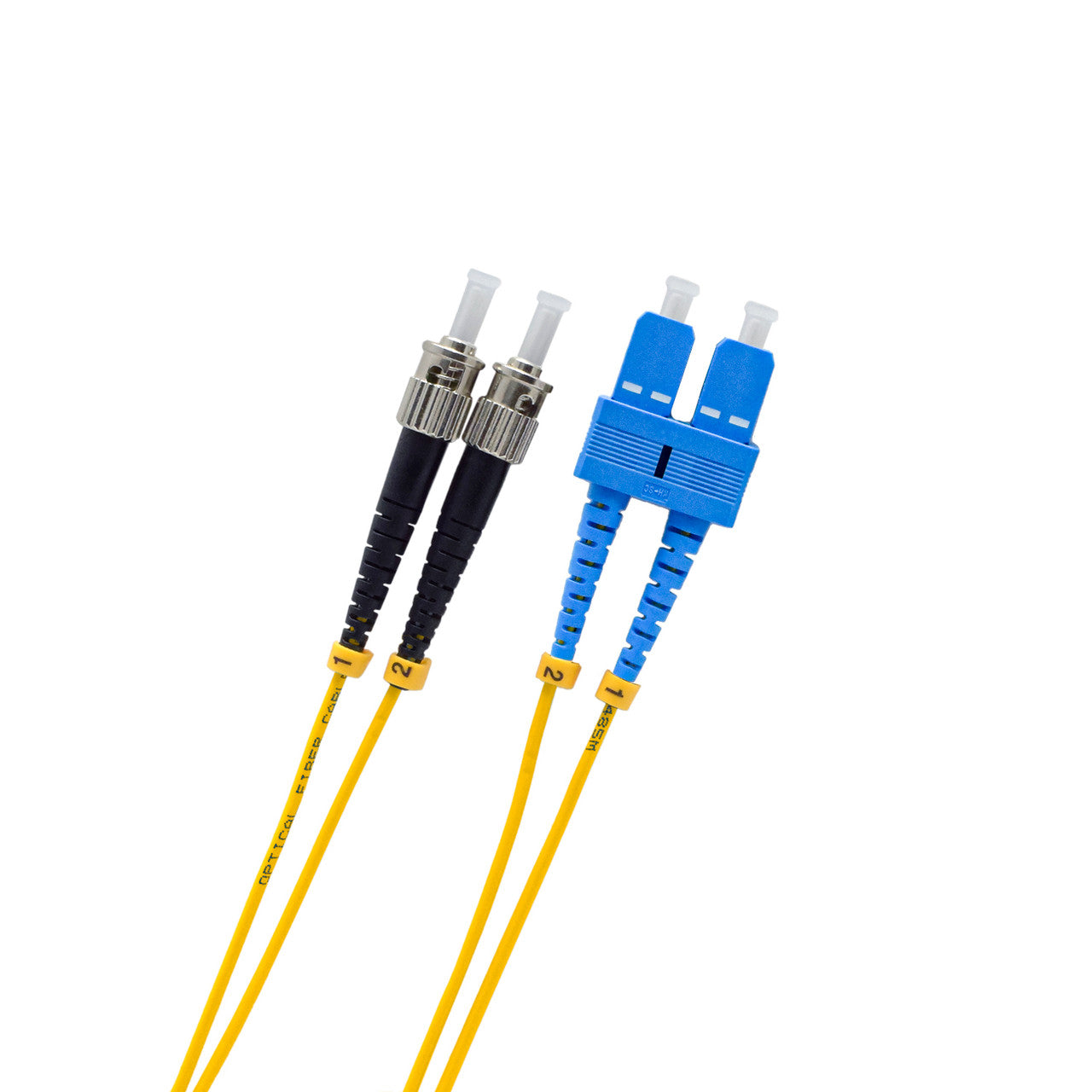

14456 - Legrand C2G 20M SC-ST 9/125 OS1 DUPLEX SINGLEMODE PVC FIBER OPTIC CABLE (USA-MADE) - YEL

Get the performance you demand at a price that makes sense with 9/125 singlemode fiber patch cords from Cables To Go. They provide high bandwidth and transmission rates and support longer distances, but are still cost effective. Perfect for use with today’s high speed networks while providing headroom for tomorrow’s higher bandwidth requirements. - A cost effective solution that provides higher bandwidth and support for longer distances - Perfect for use in Gigabit Ethernet applications - Headroom for tomorrow’s higher bandwidth needs - Lifetime warranty against defects of materials and workmanship - Connectors: (2) ST to (2) SC - Buffer material: PVC - Buffer OD: 900 µm - Jacket material: PVC (OFNR-rated) - Jacket OD: 3.0 mm - Jacket color: Yellow - Attenuation @1310 nm: 1.0 dB/km - Attenuation @1550 nm: 0.75 dB/km - Maximum tensile load: 100 N/cm - Loaded min. bend radius: 5 cm - Unloaded min. bend radius: 3 cm - Crush resistance: 750 N/cm - Impact resistance: 1000 cycles - Flex resistance: 5000 cycles



Specification:



Technical details
Cable length	1181.1" (30 m)
Features
Cable length	1181.1" (30 m)
Product colour	Yellow
Weight & dimensions
Cable length	1181.1" (30 m)
Other features
Core / cladding diameter	9/125 µm
