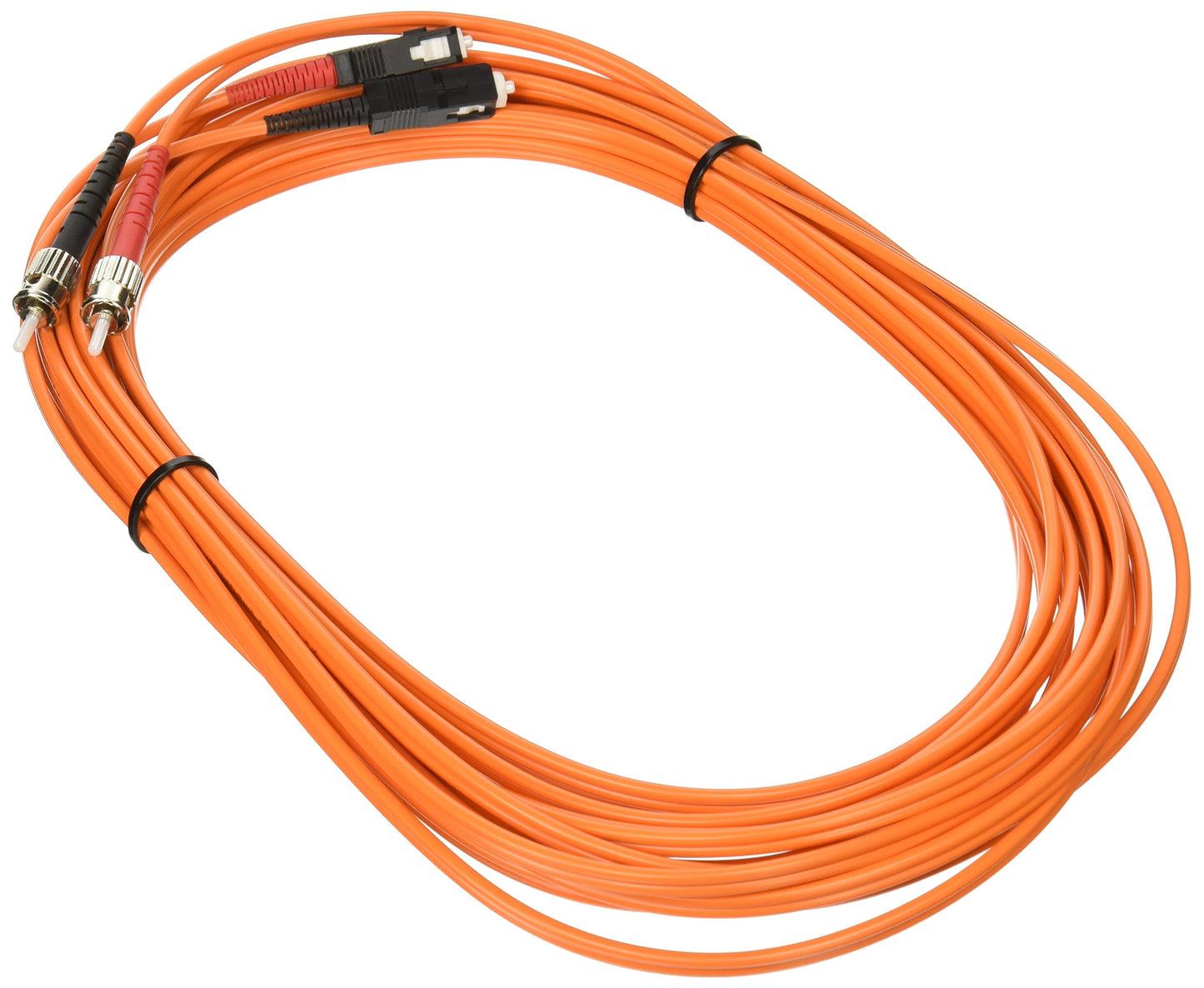

14552 - Legrand C2G 8M SC-ST 50/125 USA FIBER-ORG

Get the performance you demand at a price that makes sense with 50/125 multimode fiber patch cords from Cables To Go. They provide higher bandwidth and transmission rates and support longer distances with lower loss than 62.5/125 fiber, but are still cost effective. Perfect for use with today's narrower aperture components, they are fully compatible with multimode applications. 50/125 multimode patch cords from Cables To Go are well-suited for protocols such as Ethernet, Fibre Channel, Infiniband, ATM, and Internet Protocol. Features: - Fully compatible with multimode fiber applications - A Cost effective solution that provides lower loss and higher bandwidth supporting longer distances - Perfect for use in Gigabit Ethernet applications Specifications: - Connectors: (2) SC to (2) ST - Buffer material: PVC - Buffer OD: 900 µm - Jacket material: PVC (OFNR-rated) - Jacket OD: 3.0 mm - Jacket color: Orange - Attenuation @850 nm: 3.75 dB/km - Attenuation @1310 nm: 1.5 dB/km - Min. bandwidth @850 nm: 160 kHz/km - Min. bandwidth @1310 nm: 500 kHz/km - Maximum tensile load: 100 N/cm - Loaded min. bend radius: 5 cm - Unloaded min. bend radius: 3 cm - Crush resistance: 750 N/cm - Impact resistance: 1000 cycles - Flex resistance: 5000 cycles



Specification:



Technical details
Connector 1	ST
Connector 2	SC
Cable length	590.6" (15 m)
Features
Connector 1	ST
Connector 2	SC
Cable length	590.6" (15 m)
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	590.6" (15 m)
