SUPERCHARGED PERFORMANCE The Radeonâ„¢ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cacheâ„¢, these cards redefine enthusiast level performance.
VIVID VISUALS Experience a new level of immersion with the Radeon™ RX 6000 Series graphics cards with support for the latest software innovations such as DirectX® 12 Ultimate and the latest AMD FidelityFX™ technology feature set, enabling realistic lighting, shadows, and reflections in extreme detail. AMD FidelityFX™ technology features are optimized for the AMD RDNA™ 2 architecture to power the next generation of gaming visuals at high framerates, providing a mesmerizing gaming experience.
ELEVATED EXPERIENCES The new Radeonâ„¢ RX 6000 Series graphic cards are optimized for DirectStorage to help reduce load times in games and bring expansive worlds to life in amazing detail. Complete the experience with the widest available display ecosystem on the market, supporting the latest HDMIâ„¢ 2.1 VRR technology with the 2000+ AMD FreeSync technology-enabled gaming displays available at high refresh rates. With the new AMD Linkâ„¢ 5.0, enjoy co-op with up to 4 players and experience your games across different devices seamlessly, as easy as clicking a button.
GET A BOOST IN FRAMES FOR YOUR GAMES Maximize image quality and supercharge performance with AMD FidelityFXâ„¢ Super Resolution (FSR) across select supported games or boost your frame rates across a wide number of games with Radeonâ„¢ Super Resolution (RSR) to deliver high-quality, high-resolution, and high framerate gaming experiences on AMD Radeonâ„¢ graphics cards.
THE BEST GAMING EXPERIENCE FOR THE BEST GAMING OS Windows® 11 is created for the ultimate PC gaming, featuring superior graphics, amazing speed, and an incredible selection of games. Windows 11 includes gaming features like DirectX® 12 Ultimate, DirectStorage, and Auto HDR. AMD processors, graphics, and software all stand ready to supercharge your gaming experience with the new operating system from day one.
DESIGN CONCEPT Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night. The new era of esports has arrived.

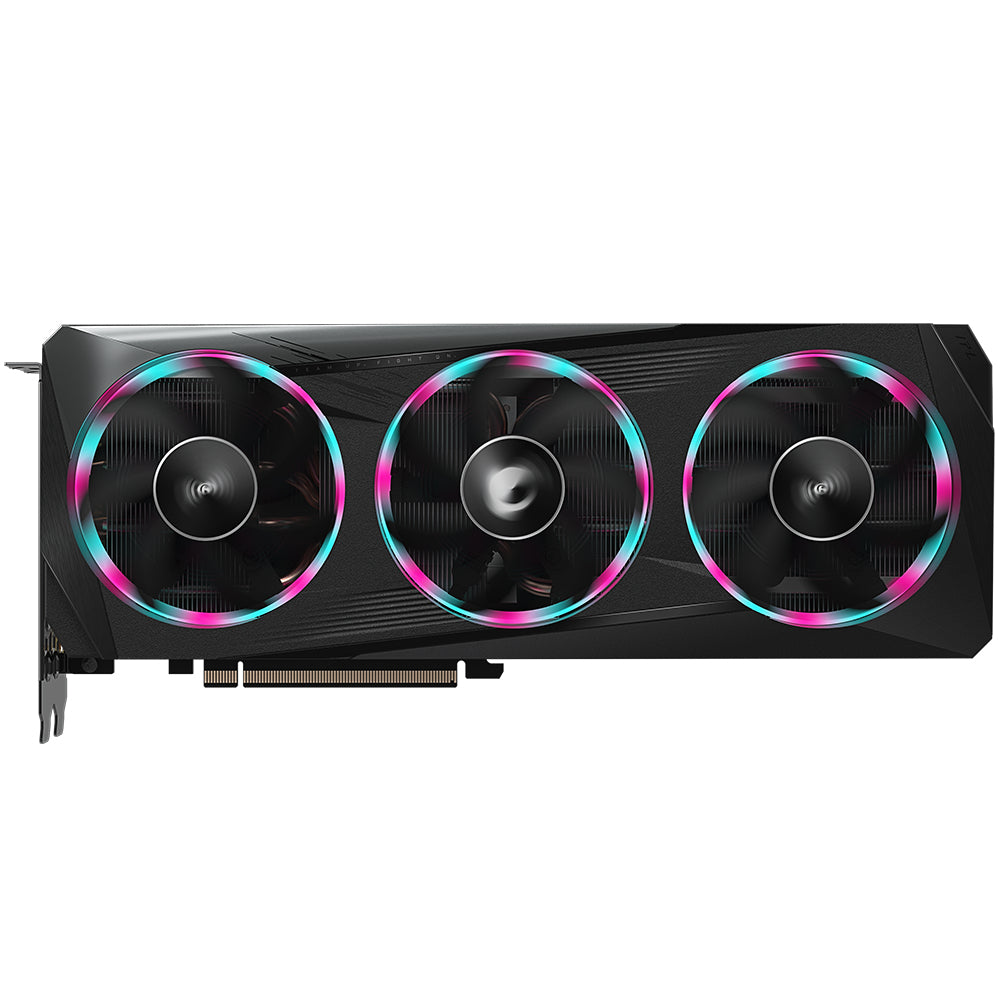

WINDFORCE 3X COOLING SYSTEM The WINDFORCE 3X cooling system features three 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes directly touch the GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.
GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH The shape of the pure copper heat pipe maximizes the direct contact area with the GPU.
RGB FUSION 2.0 With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE The Radeonâ„¢ RX 6750 XT has 2560 stream processors, powerful new compute units, and the all new AMD Infinity Cache along with up to 12GB of dedicated GDDR6 memory, delivers ultra-high frame rates and serious levels of 1440p resolution gaming.
METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATORS When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
INTUITIVE AORUS ENGINE Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
Specification:
| Processor |
|---|
| Graphics processor family |
AMD |
| Stream processors |
2560 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA |
No |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
Radeon RX 6750 XT |
| Processor boost clock speed (OC mode) |
2623 MHz |
| Lithography |
7 nm |
| Processor boost clock speed (Gaming mode) |
2533 MHz |
| Memory |
|---|
| Discrete graphics card memory |
12 GB |
| Memory clock speed |
18000 MHz |
| Number of pipelines |
5 |
| Memory bandwidth (max) |
432 GB/s |
| Memory bus |
192 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
|---|
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| DisplayPort version |
1.4a |
| DisplayPorts quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Video |
|---|
| DirectX version |
1‎2 Ultimate |
| OpenGL version |
4.6 |
| HDMI version |
2.1 |
| Dual Link DVI |
No |
| Performance |
|---|
| AMD FreeSync |
Yes |
| DirectX version |
1‎2 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
No |
| TV tuner integrated |
No |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Fan diameter |
3.15" (8 cm) |
| Illumination colour |
Multi |
| Illumination |
Yes |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black, Silver |
| Bracket height |
Full-Height (FH) |
| Cooling technology |
GIGABYTE WINDFORCE 3X |
| Software |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64, Windows 7 x64 |
| Power |
|---|
| Supplementary power connectors |
1x 6-pin, 1x 8-pin |
| Minimum system power supply |
650 W |
| Technical details |
|---|
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Product colour |
Black, Silver |
| TV tuner integrated |
No |
| Harmonized System (HS) code |
84733020 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64, Windows 7 x64 |
| Minimum system power supply |
650 W |
| Packaging content |
|---|
| User guide |
Yes |
| Weight & dimensions |
|---|
| Width |
4.53" (115 mm) |
| Height |
1.93" (49 mm) |
| Depth |
11.1" (281 mm) |
| Packaging data |
|---|
| Package type |
Box |
| User guide |
Yes |
