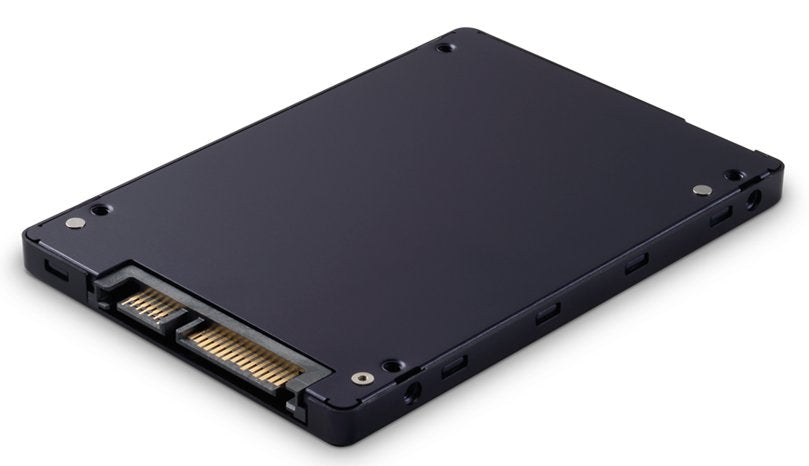

4XB7A10245 - Lenovo 3.5 5200 1.92TB MS SATA SSD

The ThinkSystem 5200 Mainstream SATA 6Gb solid-state drives (SSDs) use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for mixed read/write workloads.

This product guide provides essential presales information to understand the 5200 Mainstream SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.



Specification:



Hard drive
SSD capacity	3840 GB
Data transmission
Read speed	540 MB/s
Write speed	520 MB/s
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	3000000 h
Certificates
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016
Performance
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	24500 IOPS
Maximum read (4KB)	95000 IOPS
SSD capacity	3840 GB
Read speed	540 MB/s
Write speed	520 MB/s
Mean time between failures (MTBF)	3000000 h
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
Product colour	Black
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	24500 IOPS
Maximum read (4KB)	95000 IOPS
SSD capacity	3840 GB
Read speed	540 MB/s
Write speed	520 MB/s
Mean time between failures (MTBF)	3000000 h
Data transfer rate	6 Gbit/s
Certification	Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016
SSD form factor	3.5"
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Technical details
Interface	Serial ATA III
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Product colour	Black
SSD form factor	3.5"
Weight & dimensions
Width	2.76" (70 mm)
Weight	2.47 oz (70 g)
Height	0.276" (7 mm)
Depth	3.94" (100 mm)
Other features
Product colour	Black
