| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C628 |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Number of DIMM slots | 24 |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Component for | Server |
| Graphics output | VGA |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 8 |
| Thermal Design Power (TDP) | 205 W |

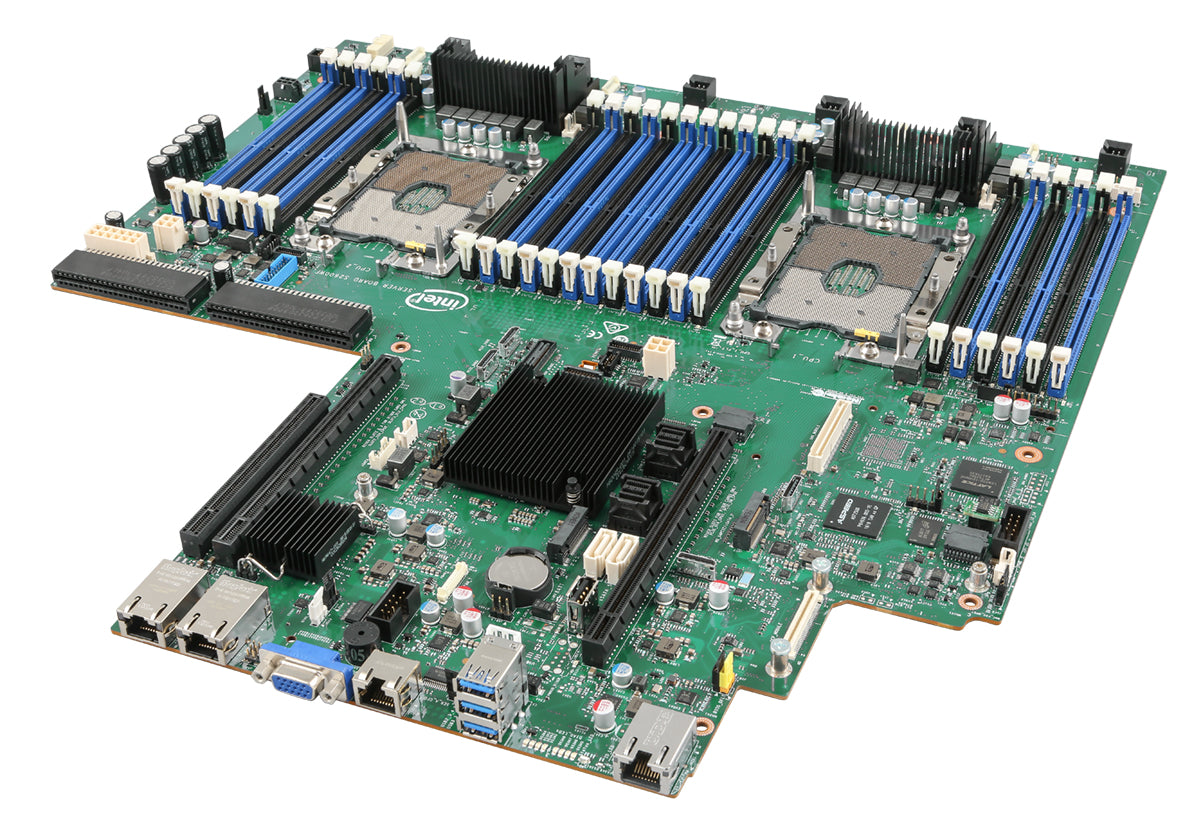

| Product type | Server/Workstation Board |
| Maximum number of PCI Express lanes | 96 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Integrated LAN | No |
| ECC supported by processor | Yes |
| Total number of SATA connectors | 12 |
| Intel Rapid Storage Technology enterprise | Yes |
| Status | Launched |
| Launch date | Q2'19 |
| Supported RAID configuration | SW RAID 0/1/10 (5 optional) |
| Expected discontinuance date | 2023 |
| Form factor | Custom 16.7" x 17" |
| Last receipt attributes date | Sunday, December 22, 2019 |
| Last order date | 2019-08-03 05:00:37 |
| End of life date announce | Monday, April 22, 2019 |
| Additional information URL | https://www.intel.com/content/www/us/en/products/servers/server-boards/server-board-s2600wf.html |
| Riser slot 1 number of lanes | 24 |
| Riser slot 2 number of lanes | 24 |
| Riser slot 3 number of lanes | 12 |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C628 |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| Thermal Design Power (TDP) | 205 W |
| Maximum number of PCI Express lanes | 96 |
| ECC supported by processor | Yes |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 2 |
| Processor socket | LGA 3647 |
| Product series | Intel® Server Board S2600WF Family |
| Product codename | Wolf Pass |
| Number of QPI links | 2 |
| Memory | |
| Number of memory slots | 24 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Hexa-channel |
| Memory voltage | 1.2 V |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933 MHz |
| Maximum internal memory | 7500 GB |
| Supported memory clock speed (max) | 2933 MHz |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Internal I/O | |
| Total number of SATA connectors | 12 |
| Supported storage drive interfaces | SATA |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 12 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® C628 |
| Compatible operating systems | Windows Server 2016*|VMware*|Ubuntu* |
| Component for | Server |
| Harmonized System (HS) code | 84733020 |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Rack-Friendly board | Yes |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 6 |
| PCI Express x16 (Gen 3.x) slots | 3 |
| PCI Express slots version | 3.0 |
| PCI Express CEM revision | 3.0 |
| PCI Express OCuLink connectors (NVMe support) | 2 |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Rapid Storage Technology enterprise | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Internal I/O Expansion Module x8 Gen 3 | 1 |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Intel Remote Management Module Support | Yes |
| Intel Intelligent Power Node Manager | Yes |
| Integrated systems available | Yes |
| Intel® Optane™ DC Persistent Memory technology | Yes |
| Design | |
| Product series | Intel® Server Board S2600WF Family |
| Product codename | Wolf Pass |
| Weight & dimensions | |
| Width | 16.7" (424.8 mm) |
| Depth | 17" (431.8 mm) |
| Other features | |
| Thermal Design Power (TDP) | 205 W |
| PCI Express x8 (Gen 3.x) slots | 6 |
| Number of DIMM slots | 24 |
| Embedded options available | No |
| CPU configuration (max) | 2 |
| Compatible operating systems | Windows Server 2016*|VMware*|Ubuntu* |
| Graphics output | VGA |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| PCI Express CEM revision | 3.0 |
| Chassis type | Rack |
| Intel Node Manager | Yes |
