ST1000SPEX2L - StarTech.com ADD A 10/100/1000MBPS ETHERNET PORT TO ANY PC THROUGH A PCI EXPRESS SLOT - 1 POR

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot

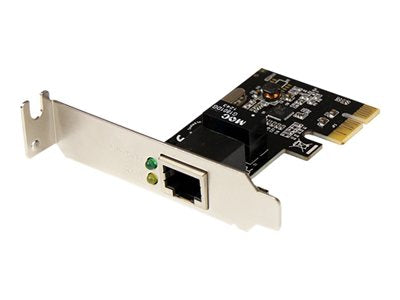

The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.

Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.

The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.

Backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket



Specification:



Ports & interfaces
Internal	Yes
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	2000 Mbit/s
Network
Chipset	Realtek RTL8111G
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Wake-on-LAN ready	Yes
Auto MDIX IEEE	No
Jumbo frames support	Yes
Full duplex	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Maximum data transfer rate	2000 Mbit/s
Flow control support	Yes
Technical details
Wake-on-LAN ready	Yes
Auto MDIX IEEE	No
Harmonized System (HS) code	85176990
Sustainability certificates	CE, RoHS
Case colour	Yellow
Design
Chipset	Realtek RTL8111G
Internal	Yes
LED indicators	Activity, Link
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Indication
LED indicators	Activity, Link
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Sustainability
Sustainability certificates	CE, RoHS
Weight & dimensions
Width	4.72" (120 mm)
Depth	5.43" (138 mm)
Height	0.709" (18 mm)
Weight	3.35 oz (95 g)
Package width	8.23" (209 mm)
Package depth	5.71" (145 mm)
Package height	1.57" (40 mm)
Package weight	6.49 oz (184 g)
Packaging data
Package width	8.23" (209 mm)
Package depth	5.71" (145 mm)
Package height	1.57" (40 mm)
Package weight	6.49 oz (184 g)
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	No
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Other features
Chipset	Realtek RTL8111G
Case colour	Yellow
Flow control support	Yes
Harmonized System (HS) code	85176990
Logistics data
Master (outer) case width	17.6" (446 mm)
Master (outer) case length	20.5" (521 mm)
Master (outer) case height	13.5" (344 mm)
Products per master (outer) case	50 pc(s)
