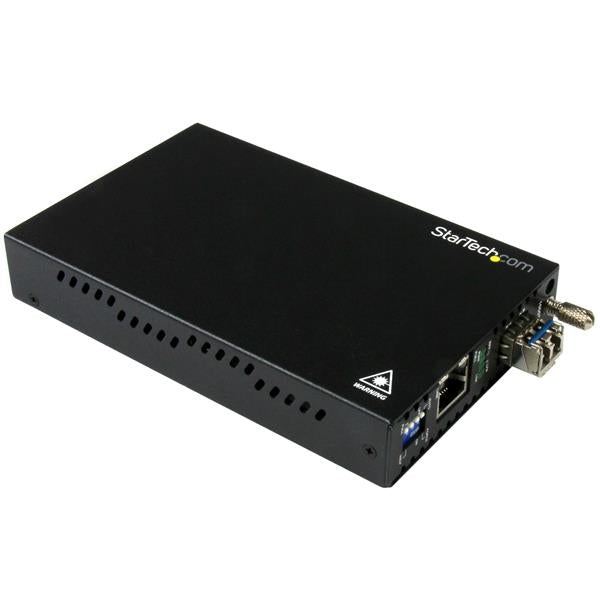

ET91000SM20 - StarTech.com CONVERT EXTEND A GBE CONNECTION UP TO 20 KM (12.4 MI) USING SINGLE-MODE LC FIB

This Gigabit Ethernet to fiber media converter is a cost-effective way to extend your network, or extend the distance between two devices by up to 20 km (12.4 mi.). Fiber network connections provide greater distance and security, with less electromagnetic interference (EMI) than typical RJ45 copper-based networks, making it perfect for IT professionals and secure setups in government, business, or educational applications. Flexible integration into mixed network environments This versatile copper-to-fiber converter supports standalone operation, or alternatively it can be installed into the StarTech.com Rackmount Chassis (ETCHS2U - sold separately), giving you more options for integration into your existing network. The card module can also be inserted back into the ET91000SM20 enclosure, plus it’s compatible with enclosures from other StarTech.com ET91000 series media converters (sold separately). The converter features a pre-installed Gigabit SFP transceiver with LC connectors. Should your network infrastructure change in the future, you can easily swap and replace the module to adapt the media converter to your new network requirements. With flexible integration and connectivity up to 20 km away, you can provide network access to remote areas in other buildings, or in areas where Wi-Fi® is unreliable or unavailable. Rugged and reliable This heavy-duty fiber media converter is designed for maximum reliability. It features a metal (steel) enclosure, so it can withstand the demands of harsh environments such as factories or warehouses. Plus, by relying on this more durable fiber media converter, you can reduce the strain on your existing copper-based network equipment and potentially extend the life of those devices, which helps save future expenses. Diagnose and correct issues easily This high-performance media converter supports a range of network setup and diagnostic protocols (for example, Link Fault Passthrough, Auto Laser Shutdown (ALS), and Auto MDIX, so you can set up and troubleshoot your network easily. Prepare your network for the future If your existing network consists of RJ45 copper-based devices and cables, you might not be ready for future network expansion. Because the newest fiber-based network switches feature SFP ports more often than RJ45 ports, you might need a converter to bridge your copper and fiber networks together. The ET91000SM20 is backed by a StarTech.com 2-year warranty, and free lifetime technical support.



Specification:



Network
Fiber optic connector	SC
Converter input interface	1000Base-T
Ethernet LAN data rates	1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Maximum data transfer rate	2000 Mbit/s
Technical details
Wavelength	1310 nm
Maximum transfer distance	1574803.1" (40000 m)
Fiber mode structure	Single-mode
Plug and Play	Yes
Internal	No
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Performance
Plug and Play	Yes
Wavelength	1310 nm
Maximum transfer distance	1574803.1" (40000 m)
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	65000 h
Weight & dimensions
Dimensions (WxDxH)	3.74 x 6.3 x 0.787" (95 x 160 x 20 mm)
Weight	21.2 oz (600 g)
Package depth	8.07" (205 mm)
Package width	5.51" (140 mm)
Package height	3.58" (91 mm)
Package weight	24.7 oz (700 g)
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Design
Product colour	Black
Certification	CE, FCC
Internal	No
Endurance
Mean time between failures (MTBF)	65000 h
Power
Output voltage	12 V
Output current	1 A
Power consumption (typical)	4 W
External power adapter	Yes
Management features
Plug and Play	Yes
Colour
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package depth	8.07" (205 mm)
Package width	5.51" (140 mm)
Package height	3.58" (91 mm)
Package weight	24.7 oz (700 g)
Packaging content
Manual	Yes
Certificates
Certification	CE, FCC
Other features
Full duplex	Yes
Dimensions (WxDxH)	3.74 x 6.3 x 0.787" (95 x 160 x 20 mm)
