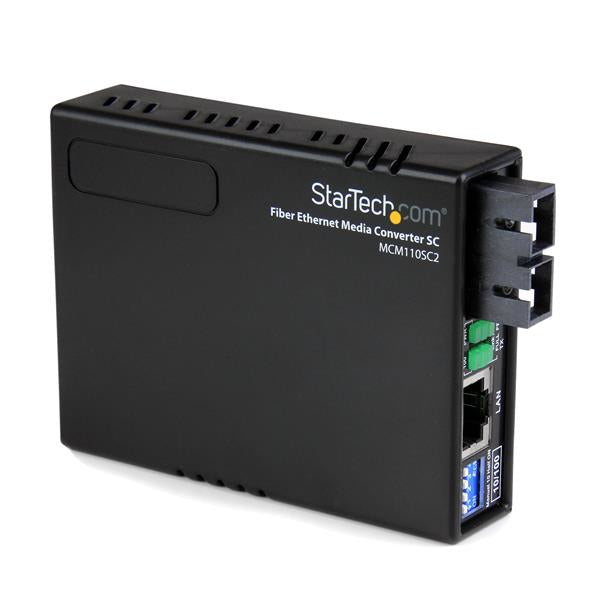

MCM110SC2 - StarTech.com FIBER TO ETHERNET MEDIA CONVERTER SC

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone. The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability. This versatile Ethernet to Fiber converter is compatible with most 3COMâ„¢, Ciscoâ„¢, Lucentâ„¢ and Nortelâ„¢ networks and fully complies with applicable IEEE 802.3 standards. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode) - Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed - Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion



Specification:



Network
Fiber optic connector	SC
Copper ethernet cabling technology	100BASE-TX
Converter input interface	100BASE-FX
Networking standards	IEEE 802.1Q, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Ethernet interface type	Fast Ethernet
Duplex system	Full, Half
Maximum data transfer rate	100 Mbit/s
Technical details
Housing material	Plastic
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Internal	No
Sustainability certificates	RoHS
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber optic connector	SC
DC-in jack	Yes
Indication
LED indicators	Activity, Link, PoE, Power
Performance
Wavelength-division multiplexing (WDM)	Yes
Wavelength	1310 nm
Maximum transfer distance	78740.2" (2000 m)
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	65000 h
Design
Housing material	Plastic
LED indicators	Activity, Link, PoE, Power
Certification	CE, FCC
Internal	No
Endurance
Mean time between failures (MTBF)	65000 h
Power
Power plug type	Type M
Power over Ethernet (PoE)	Yes
Input voltage	115 V
Output voltage	12 V
Output current	0.4 A
Power consumption (typical)	4.8 W
External power adapter	Yes
Weight & dimensions
Width	2.95" (75 mm)
Depth	3.74" (95 mm)
Weight	3.17 oz (90 g)
Height	0.787" (20 mm)
Package depth	6.77" (172 mm)
Package width	2.36" (60 mm)
Package height	5.63" (143 mm)
Package weight	10.6 oz (300 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package depth	6.77" (172 mm)
Package width	2.36" (60 mm)
Package height	5.63" (143 mm)
Package weight	10.6 oz (300 g)
Packaging content
AC adapter included	Yes
User guide	Yes
Certificates
Certification	CE, FCC
